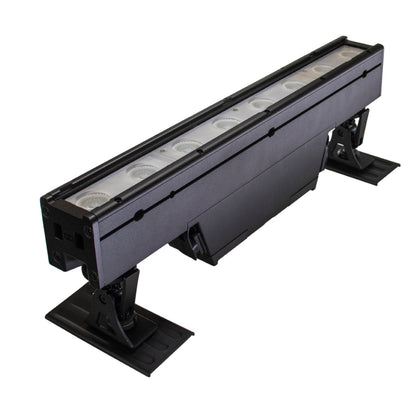

Astera AX2-50 Pixel Bar - 8 x 10W RGB+Amber+Mint Battery Powered LED Wall Washer (IP65 Rated)

Product Overview

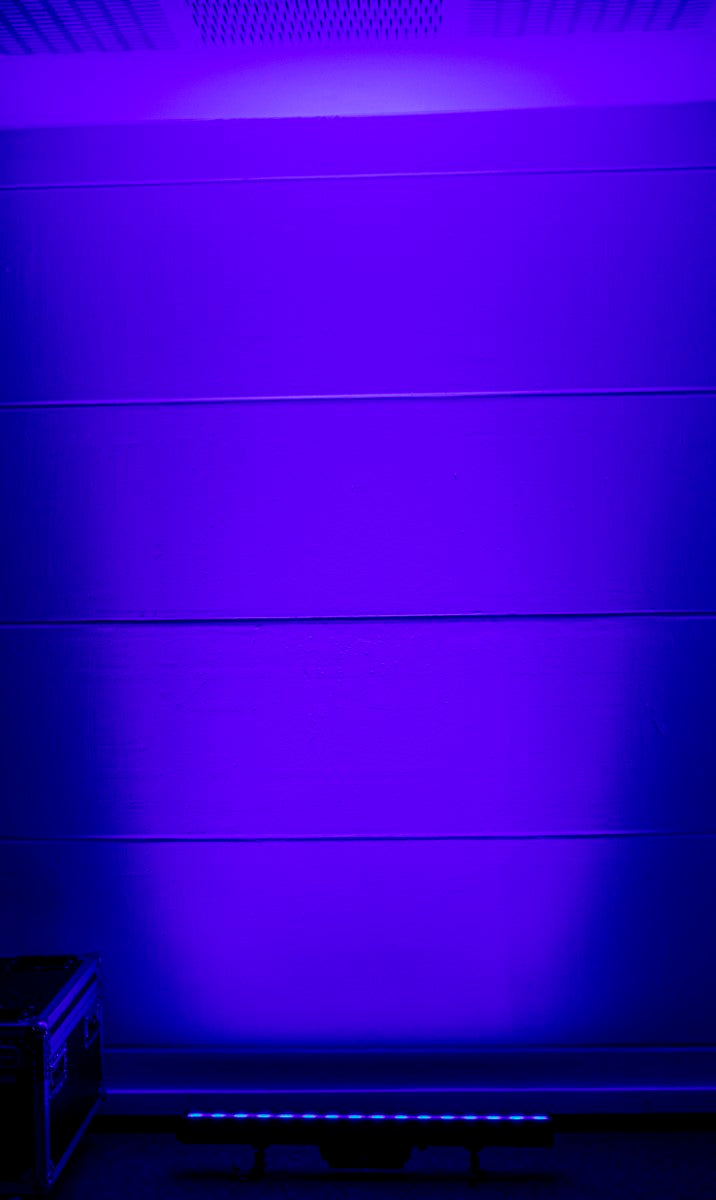

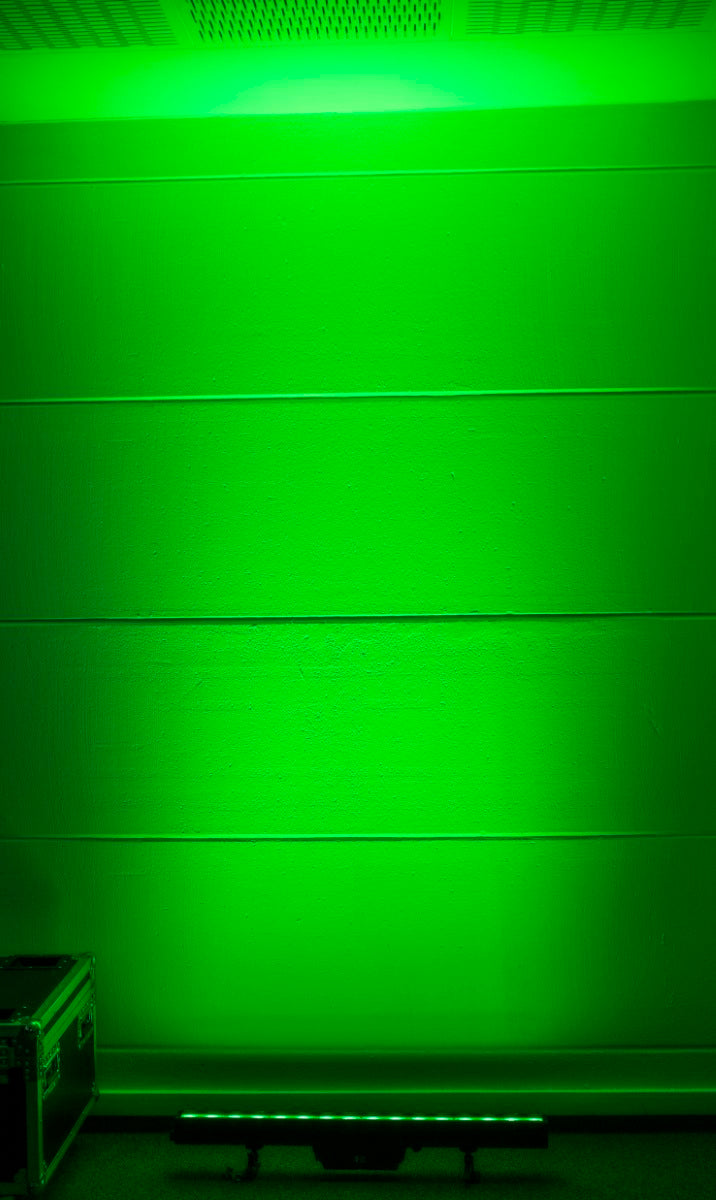

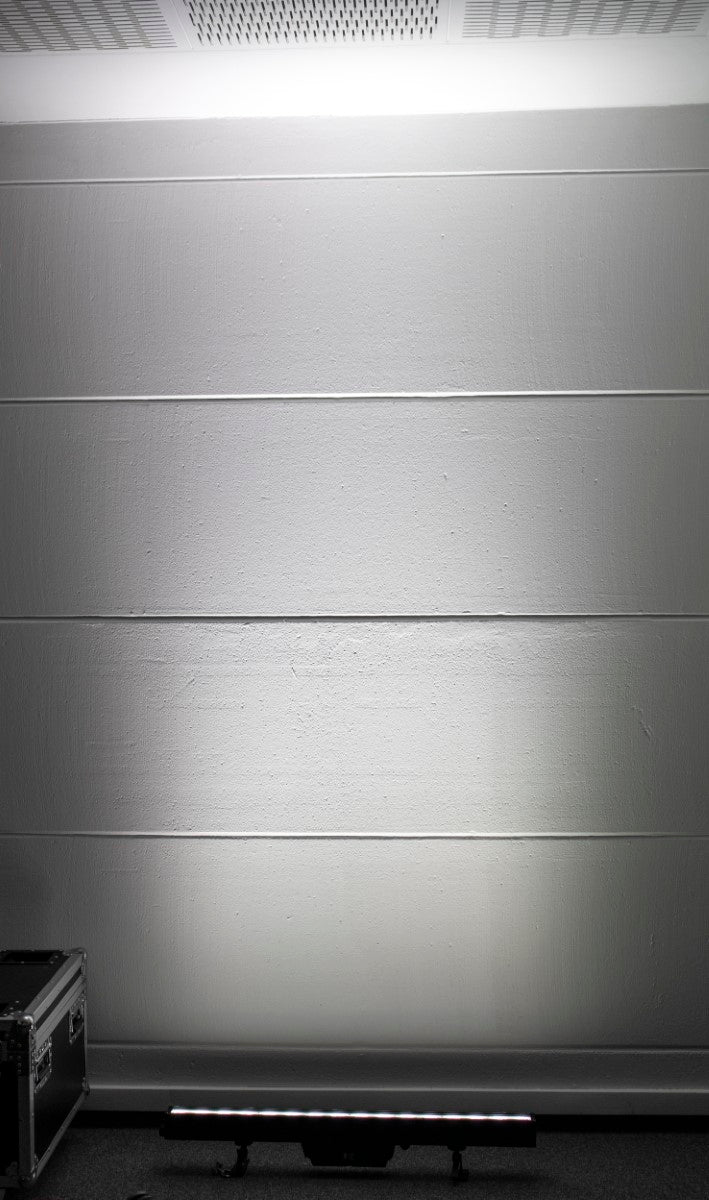

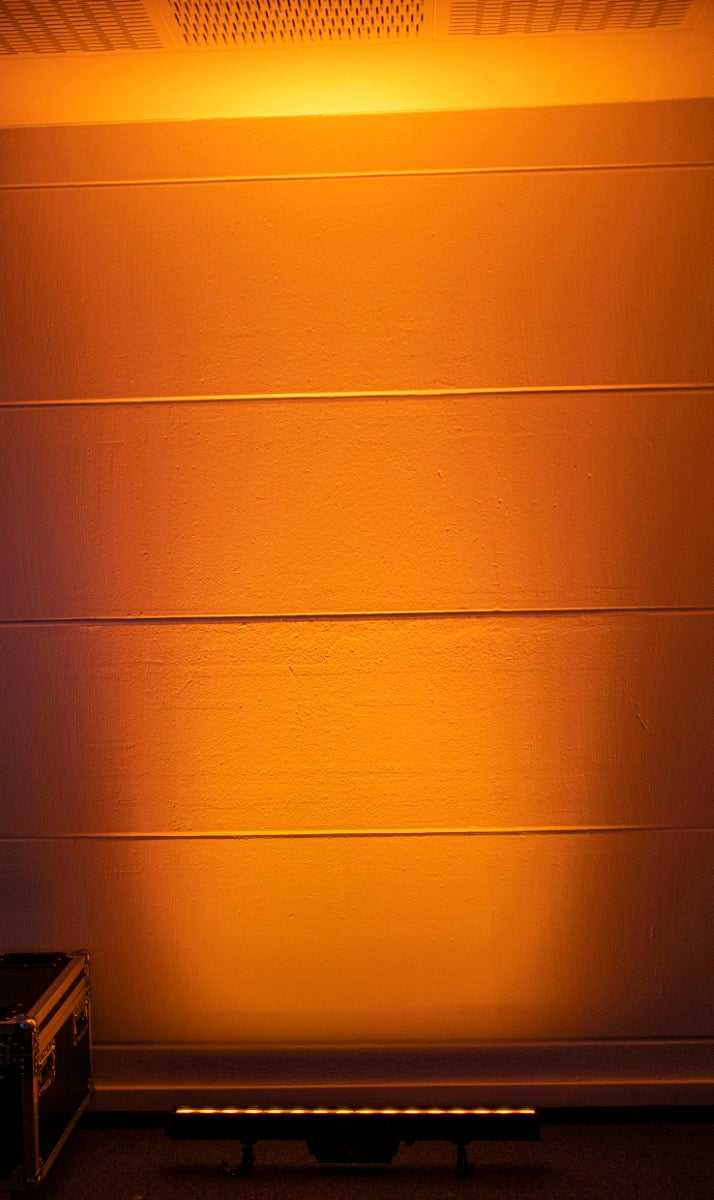

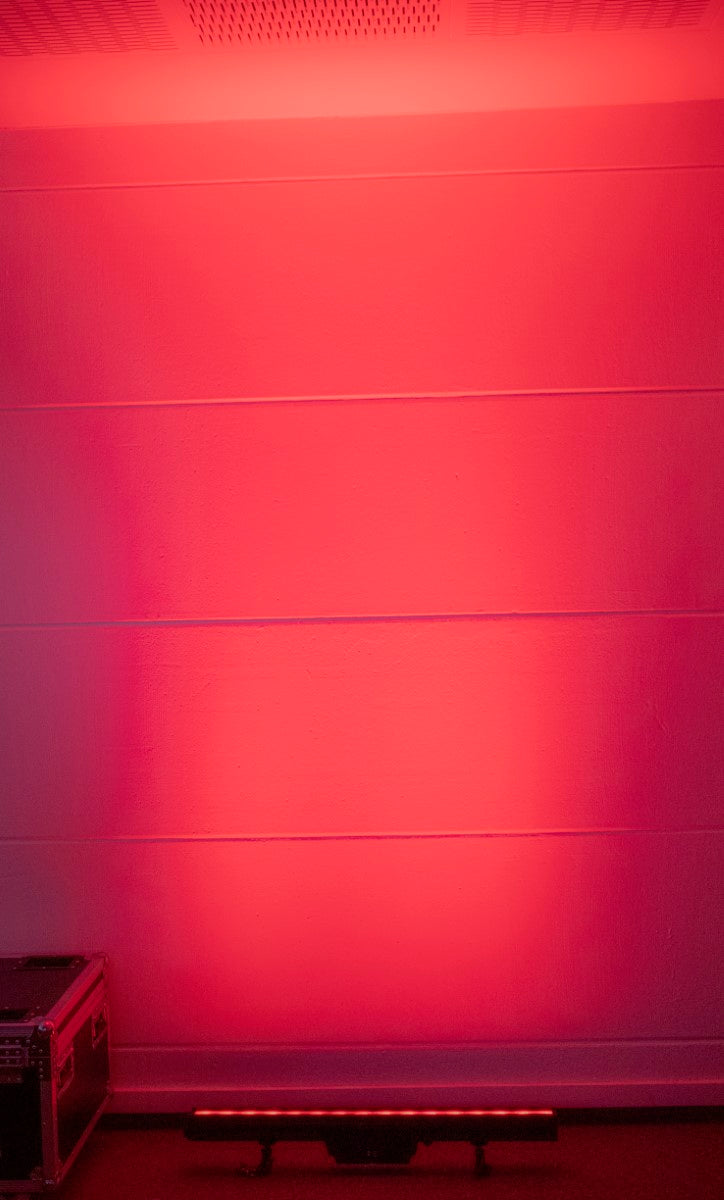

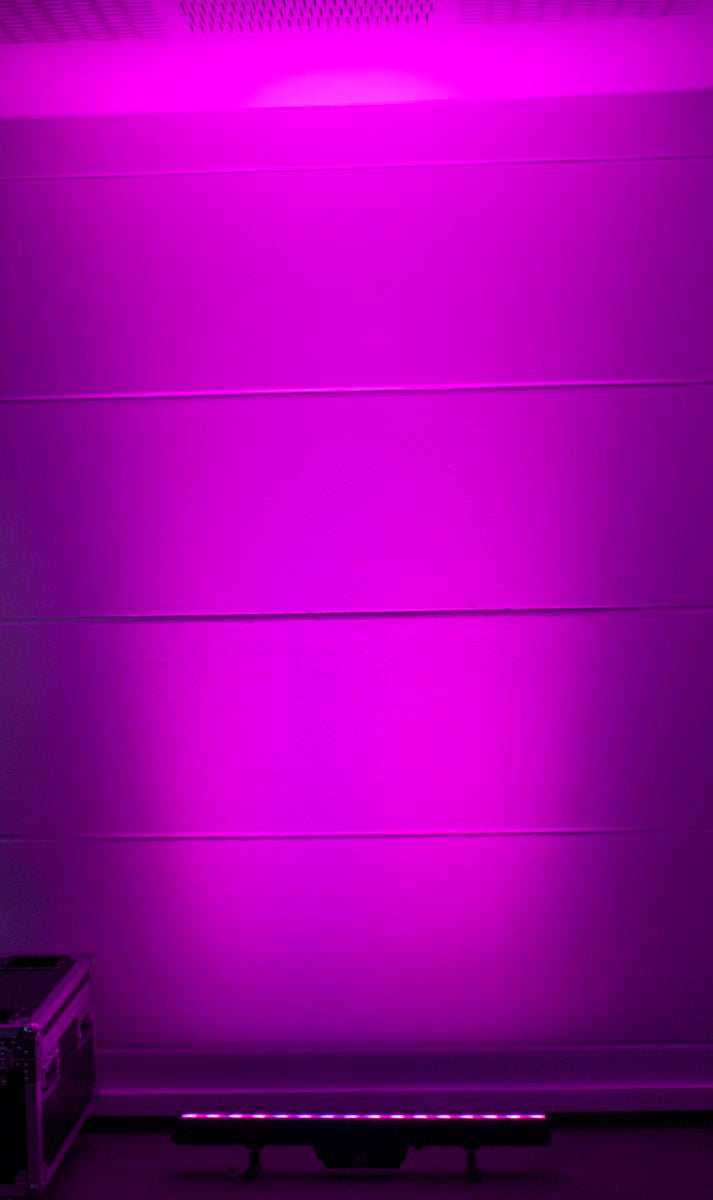

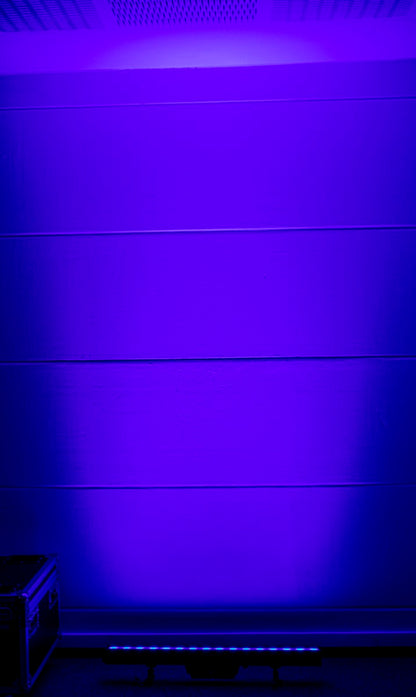

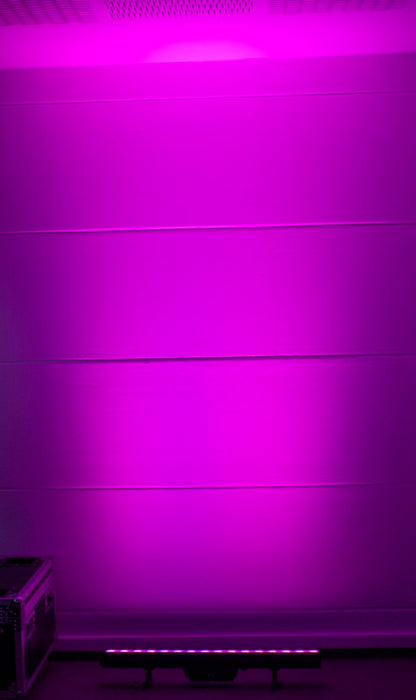

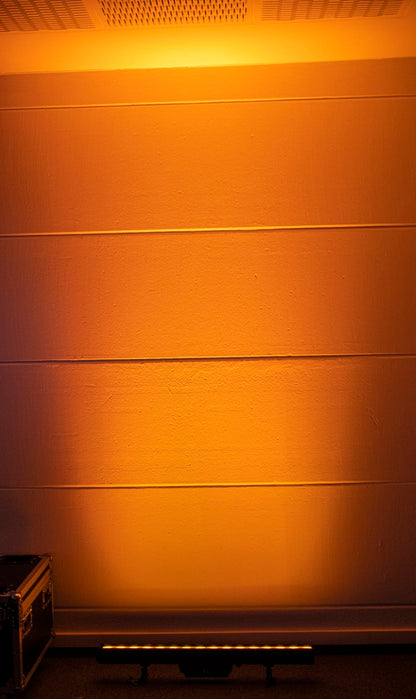

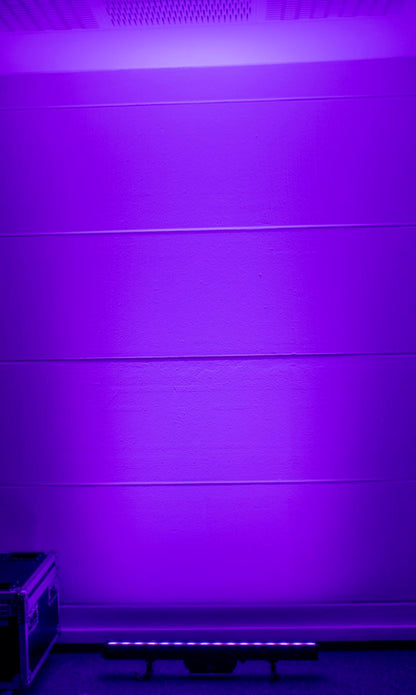

The Astera AX2-50 Pixel Bar is a professional RGB+Amber+Mint LED (TITAN LED Engine) wall washer with ultra high TLCI/ CRI and excellent color rendering as well as Astera's flicker free PWM technology. Built-in CRMX and UHF Modules provide the same connectivity known from other Astera fixtures. Numerous professional features and mounting options make the AX2 a versatile IP 65 rated battery powered fixture for the Film, Broadcast and Event industry. This device was designed for indoor and outdoor use.

Product Features

• 50cm (20") with 8 x 10W RGB+Mint+Amber LEDs
• Individually Controllable Pixels: 8 individually controllable pixels for AX2-50
• Titan LED Engine: TLCI ≥ 96, CRI Ra ≥ 96, CRI Re ≥ 90 from 3.200K to 6.500K
• Precision Optics from Gaggione: 21° lenses with perfect color-mixing from floor to ceiling

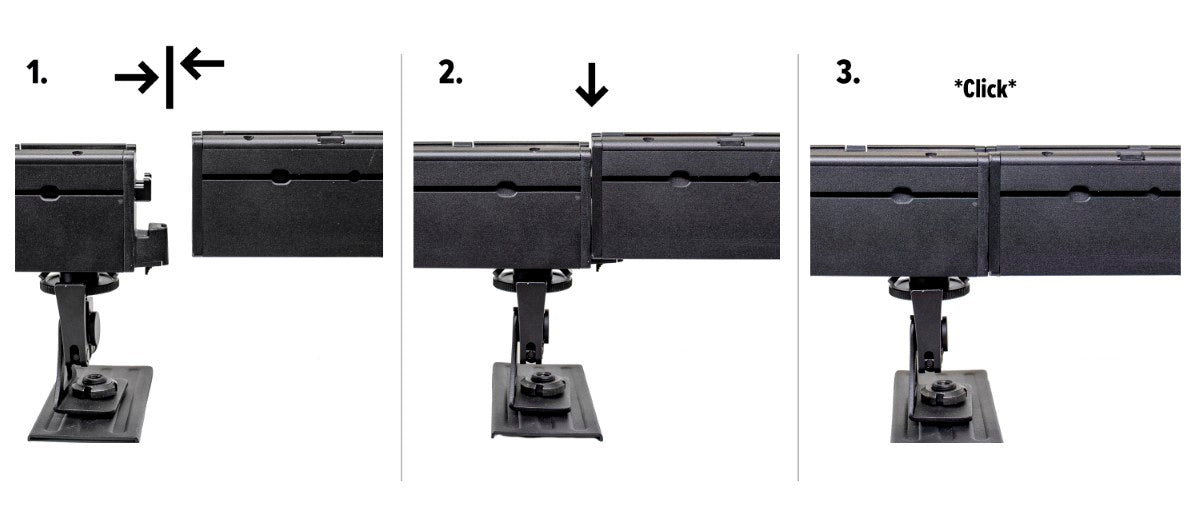

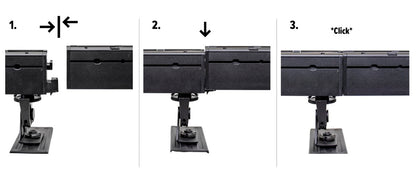

• BarConnect+: Join several AX2s, they communicate to allow auto-addressing & Flow Sets
• Consistent pixel pitch: Throughout all AX2s connected with BarConnect+

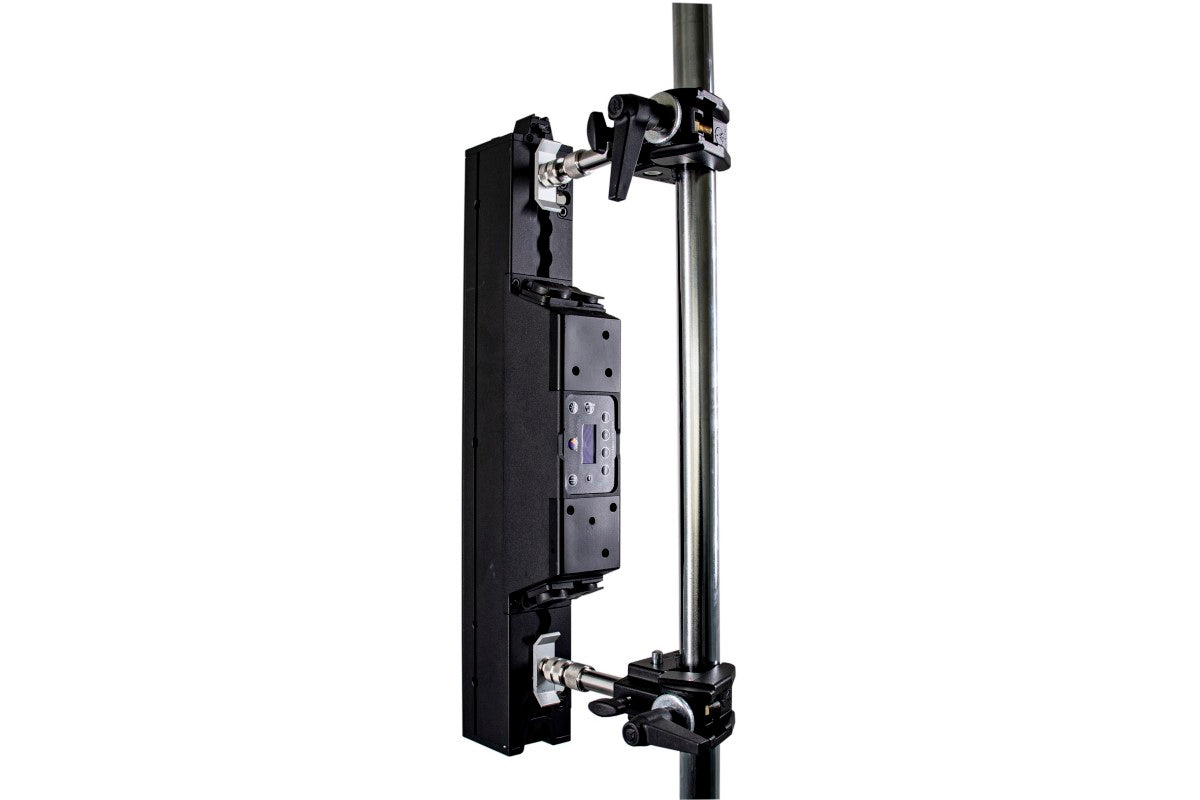

• Airline Track: Airline Track at back and bottom to attach mounting tools

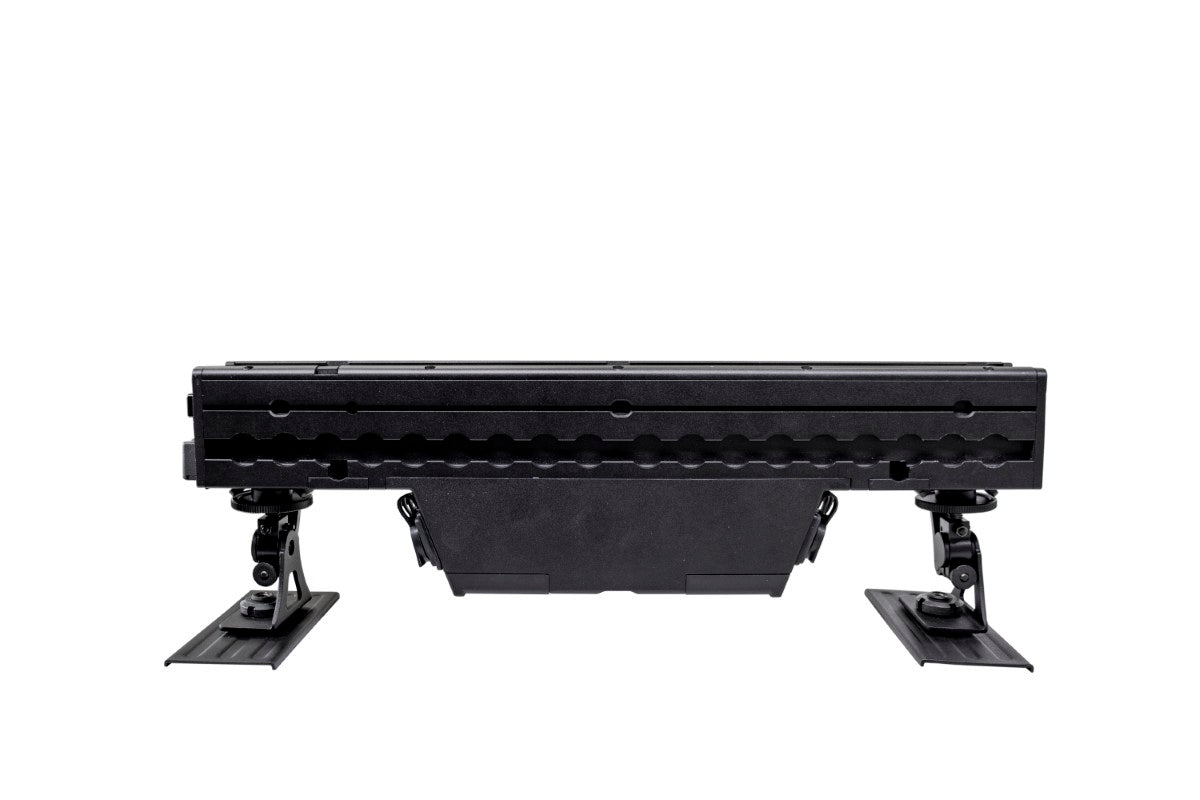

• Removeable feet: Multi-functional feet with quick-release clamp
• Talkback+: Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.
• Seamless Runtime: Set the length of your production and be sure that your lights won`t run out while still getting the maximum brightness.
• TruColor Calibration: Individually calibrated lights lead to 100% color consistency and exact color reproduction of color temperature and filter gels.
• Effects: Quickly build programs out of colors and effects, trigger them or make them match a beat.
• Flicker Free: Scrambled PWM (Pulse Width Modulation) technology to avoid flickering when filming.
• Green/Magenta Correction: Adjust green/magenta during content creation to reduce postproduction work.
• Scheduled StandBy: Switch lights into power-saving standby and schedule them to wake up when the production starts.
• Dynamic PowerBoost: This exclusive feature makes the light able to display the maximum brightness at all time and intensify non-white colors.
• Emergency Lights: Switches to white light when AC power is cut to keep your event save
• Anti-Theft: The lights give visual and audible alarm and send notification to the AsteraApp if they are being moved during an event.
• DJ Feature: Auto BPM analyzes the beat and matches programs to it, flash buttons can trigger special effects while being held down.
• Other Features: The AsteraApp is packed with many additional items and new features are frequently added via software update.

Product Specifications

Optical

• LED Engine: TITAN LED Engine
• Colors: RGB, Mint, Amber
• Total LED Power: 80W
• Power Draw: 40W
• Light output - 2700k, 3200k,5500k*: 1800lm, 2230lm, 2265lm
• CRI(Ra)/TLCI 3200-6500k*: ≥96
• Beam Angle: 21°
• Strobe: 0 - 25Hz
• Pixels: 8

Electrical

• Battery Lifetime: 70 % after 300 cycles
• Battery Runtime: up to 20 hours
• Charging Time (nominal): 5 hrs
• Input Voltage: 100-240V, 50/60Hz, Max. 2A

Control

• Wired DMX: Yes
• CRMX Receiver: Built in
• Wireless Frequencies: CRMX 2.4GHz, UHF
• Range: 300m (330yds)

Construction

• Housing: Aluminium
• IP Rating: IP65
• Operating Temperature: 0° - 40° C (32° - 104° F)
• Weight: 4.5 kg (9.9 lbs)
• Dimensions with hook (mm/inches): 520 x 165 x 65 / 20.5 x 6.5 x2.6
• Dimensions without hook (mm/inches): 500 x 165 x 65 / 19.7 x 6.5 x2.6
