Astera AX3-CRMX-SET - 8 Pack AX3 Lightdrop Bundle Kit with Charging Case

Product Overview

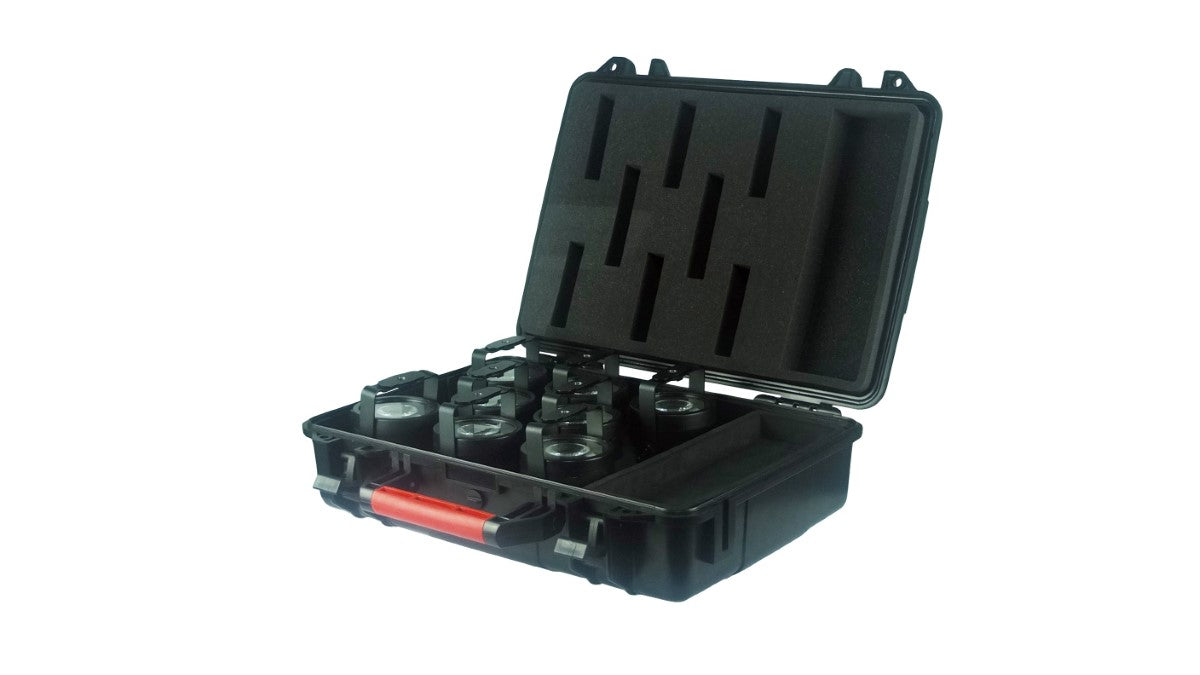

The Astera AX3-CRMX-SET is a bundle pack of 8 AX3 Lightdrops perfectly contained inside of a durable transportation charging case and includes 30 Deg. & 120 Deg. filters, hooks, rubbet feet, and floor stands. The IP65 outdoor rated battery powered AX3 is perfectly suitable for stage lighting and corporate events and can be used in multiple configurations such as uplighting, hanging, or standing inside of translucent objects and trussing. It is an extremely compact fixture that offers high brightness paired with long battery runtime (via the LG-Chem battery) and 300 meter wireless operational range. The AX3 Lightdrop is fitted with a multi-purpose bracket that makes it beneficial for use as an up-light but also for mounting it to a Manfrotto Super Clamp. The main thread of the bracket is a 3/8" for which you can use for example a standard Manfrotto 037 stud (the threads for the brackets are 1/4", so most camera accessories will fit and the bracket screws are equipped with a 1/4" thread at the outside). The battery of the AX3 is specified to last for 300 full discharge cycles, after this the fixture runtime will have decreased to 70% by then. To increase the battery life it is recommended to recharge as early as possible and not let the light run until the battery is depleted (If operated below 20°C, the battery runtime may be slightly shorter than predicted, which is also true if the lights are stored for a long time at cold temperature right before they are used). It is recommended to charge the lights in the transportation charging case with the lid opened and never closed.

Product Features

• 15W RGBW CREE LED with 1 pixel
• Total output of 430 lumens, 1300lx emittance at 2 meters
• Tight and punchy 13 degree beam angle perfect for narrow spotlighting
• System includes: 8x AX3 Lightdrops, 8x 30° diffusers, 120° diffusers, 24x M4 threaded hooks, 32x rubber feet, 8x brackets, 8x rubber socket plugs, and a user manual
• 100% wireless, battery-operated, narrow LED wash with built-in CRMX Wireless DMX
• Multiple control options include stand-alone (power on/off for static color setting), CRMX Wireless DMX, IR Control (via ARC1 Remote), and AsteraApp
• Compact size provides effortless transport and set-up
• Diffusers can be quickly swapped on-site with minimal difficulty
• Generate a broad spectrum of colors using the RGBW CREE LED
• IP65 outdoor rated while rubber plug is in place
• Up to 20 hours of runtime on a single charge

Product Specifications

Optical

• Colours: RGBW
• Total LED power: 15W
• Luminous Flux: 430Lm
• Emittance (@2m): 1300Lx
• Strobe: 0-25Hz
• Beam Angle: 13˚
• Pixels: 1

Electrical

• Battery: LG Chem Lithium-ion
• Battery Lifetime: 70% after 300 cycles
• Battery Runtime: Up to 20 hours
• Charging time (nominal): 7 Hours
• Input Voltage (charger): 90-264V 47-63Hz
• Input voltage (light): 5V 2.5A

Control

• Wireless Modules: 865-870MHz | 902-928MHz | 2.4GHz
• Range: 300m | 330 Yards
• Wired DMX: supported via Astera PowerBox
• Wireless DMX: CRMX & others, excluding W-DMX G5, City Theatrical

Construction

• Housing: ABS
• IP Rating: IP65
• Relative humidity: 0-100%
• Operating Temperature: 0-40 ˚C | 32-104 ˚F
• Loaded Weight: 28 lbs
• Dimensions: 20.4" x 15.7" x 5.5"
