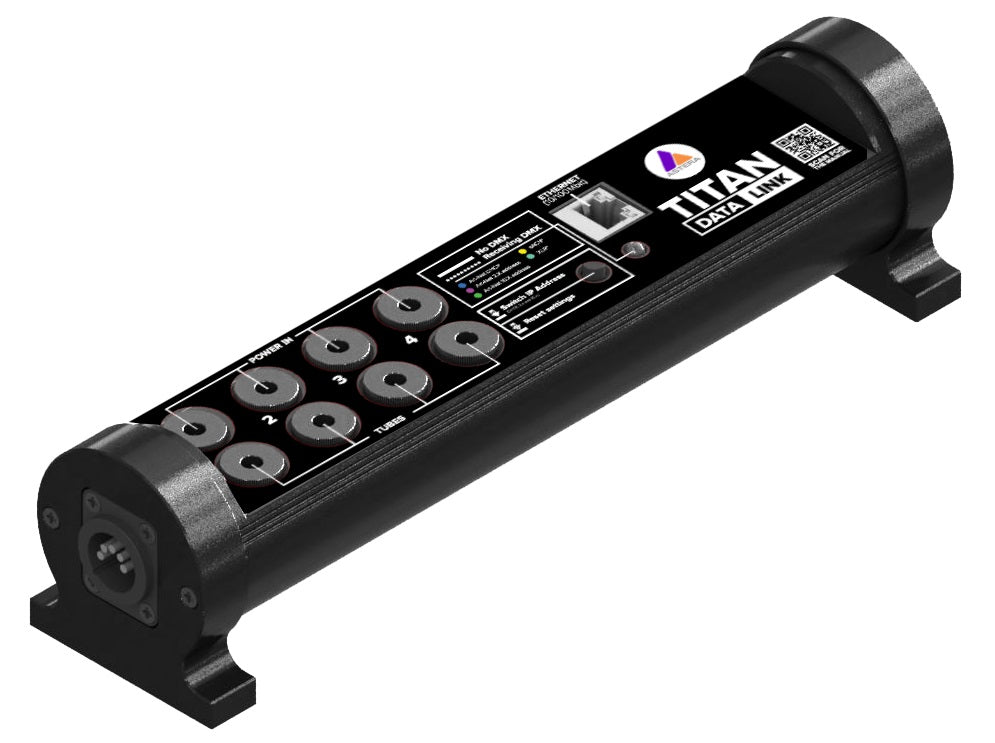

Astera FP1-DTL - Data Link for Hyperion/Titan/Helios

Product Overview

Data Link for Hyperion / Titan / Helios Series Tubes.

Product Features

• Required device to send wired DMX to Hyperion Tube
• Useful for Titan Tube and Helios Tube if no Titan PowerBox is available
• Work with multiple universes on 1 PowerBox

Product Specifications

Electrical

• Input Voltage: 4 x 24VDC, Max 4A
• Output Voltage: 4 x 24VDC

Data

• Data Input: XLR-DMX (in+out), Art-Net (1 Universe), sACN (1 Universe)
• IP Address can be selected between 2.x, 10.x, and DHCP
• Universe ID can be set by web-interface or push button (by button only 1-16)
• Output Data: DMX via DC Socket
• Wireless Data: N/A

Construction

• Housing: Aluminum
• IP Rating: IP20
• Operating Temperature: 32F to 104F
• Weight: 1.10 lbs
• Dimensions: 10.51" x 2.72" x 2.52"
• Environment: Indoor
