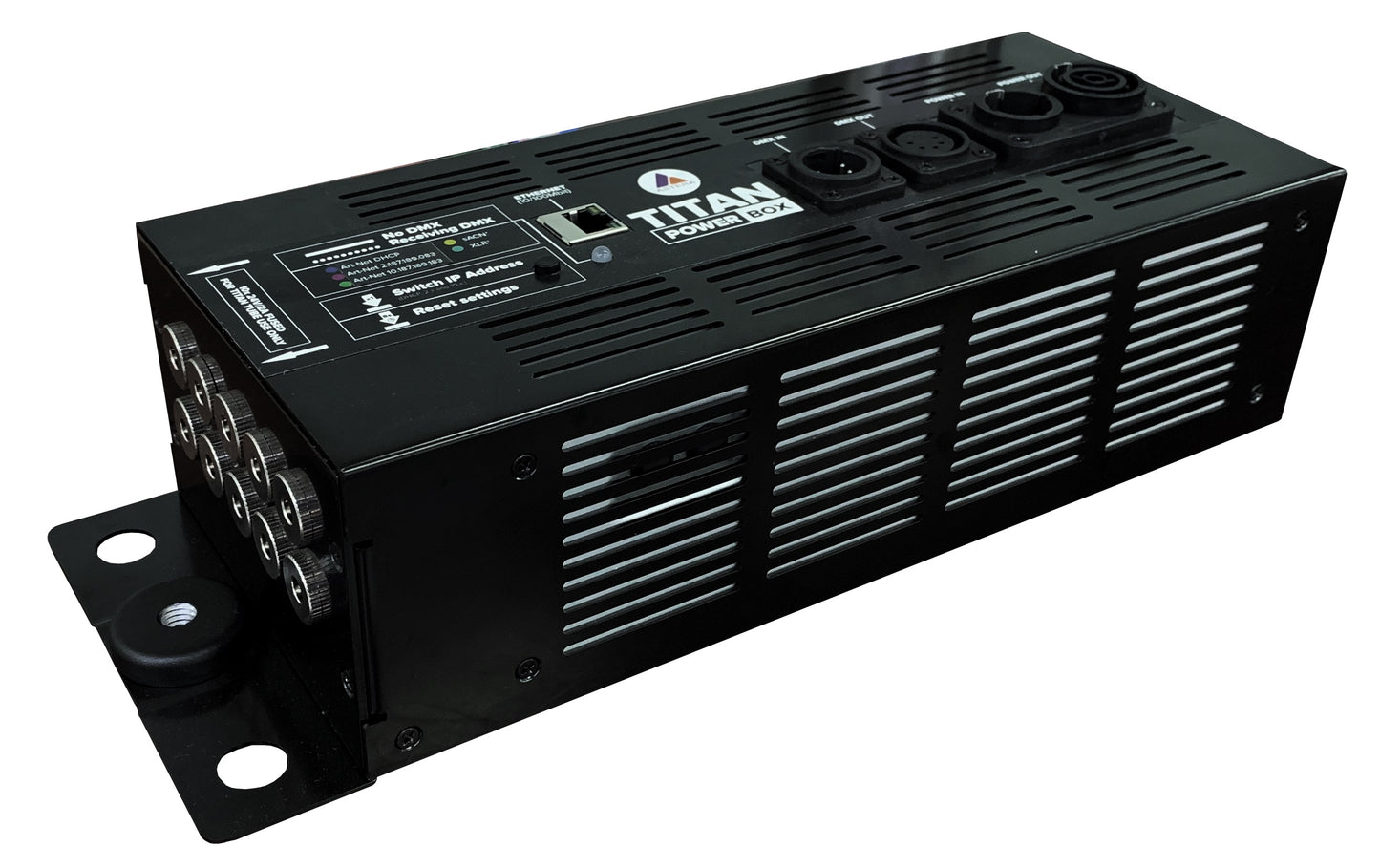

Astera FP1-PWB - Titan Tube Powerbox

Product Overview

The PowerBox can charge Helios and Titan Tubes inside their respective case. When taken out of the case they can also be used to hard-wire tubes for a longer usage. In addition, the PowerBox can add DMX, Artnet and sACN data to your tubes. Power and Data can both run over special cables so only 1 cable is needed to connect a tube to the PowerBox.

Product Features

• Power Supply to charge 10 tubes
• Offers optional wired data transfer option for DMX, Art-Net, and sACN
• Not suitable for Hyperion Tube

Product Specifications

Electrical

• Input Voltage: 90~250 VAC
• Current: 4.4A@115VAC, 3A@230VAC
• Output Voltage: 10 x 24VDC
• Output Current: 10 x 2A
• Power in: Via Powercon True1
• Power out: Via Powercon True1

Data

• Data Input by: XLR-DMX, Art-Net (1 Universe), sACN (1 Universe)
• IP Address can be selected between 2.x, 10.x and DHCP.
• Universe ID can be set by web-interface or pushbutton (by button only 1-16).
• Output Data: DMX via DC sockets
• Wireless Data: n/a
• Data Sockets: 5-pin XLR in+out, RJ45 input

Construction

• Housing: Aluminium
• IP Rating: IP20
• Operating Temperature: 0-40 ˚C | 32-104 ˚F
• Weight: 3.8kg | 8.37lbs
• Dimensions: 321 x 125 x 90.7mm | 12.63 x 4.92 x 3.57 inches
• Environment: Indoor

Warranty

Astera New Product Warranty: 2 years on fixtures and accessories. Built-in batteries, where applicable, are covered for 6 months.
