Astera Hydra Panel - 25W RGBA Mint LED Battery Powered LED Panel with Wireless DMX
Astera Hydra Panel - 25W RGBA Mint LED Battery Powered LED Panel with Wireless DMX
Regular price
$418.50 USD
Regular price
Sale price
$418.50 USD
Unit price
/
per
Product Overview

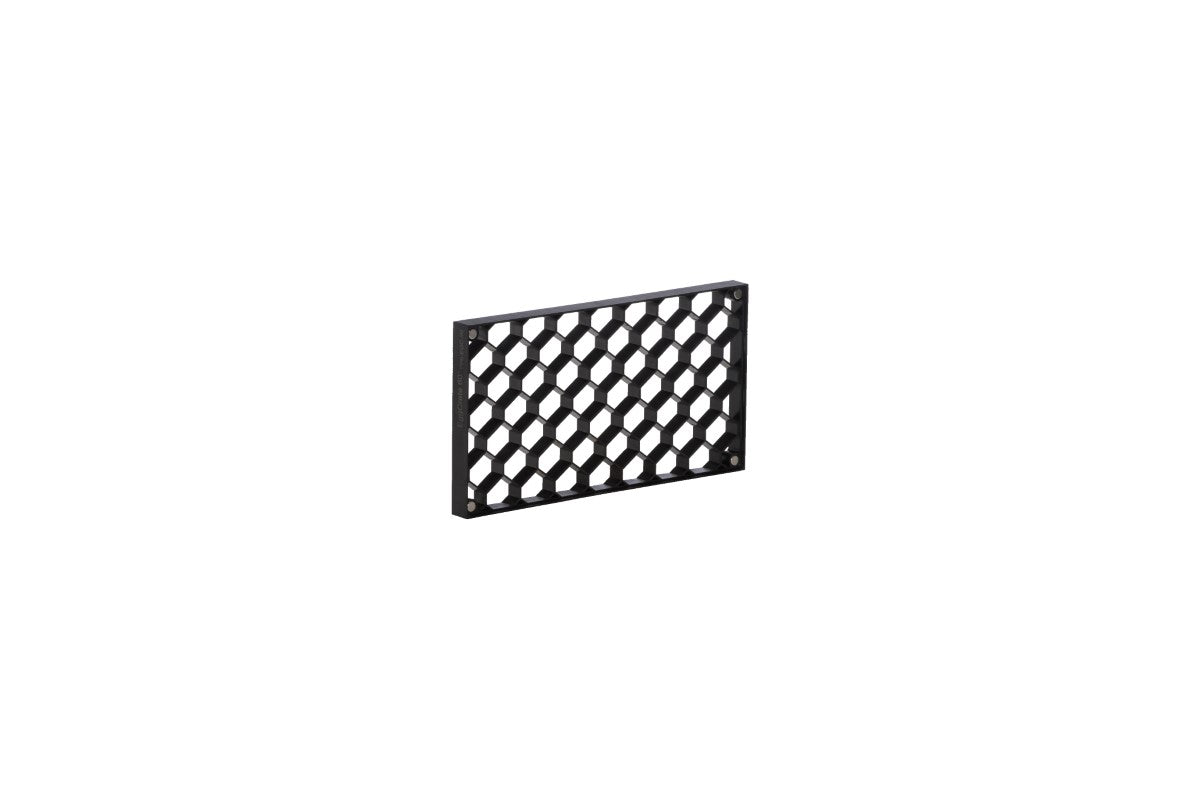

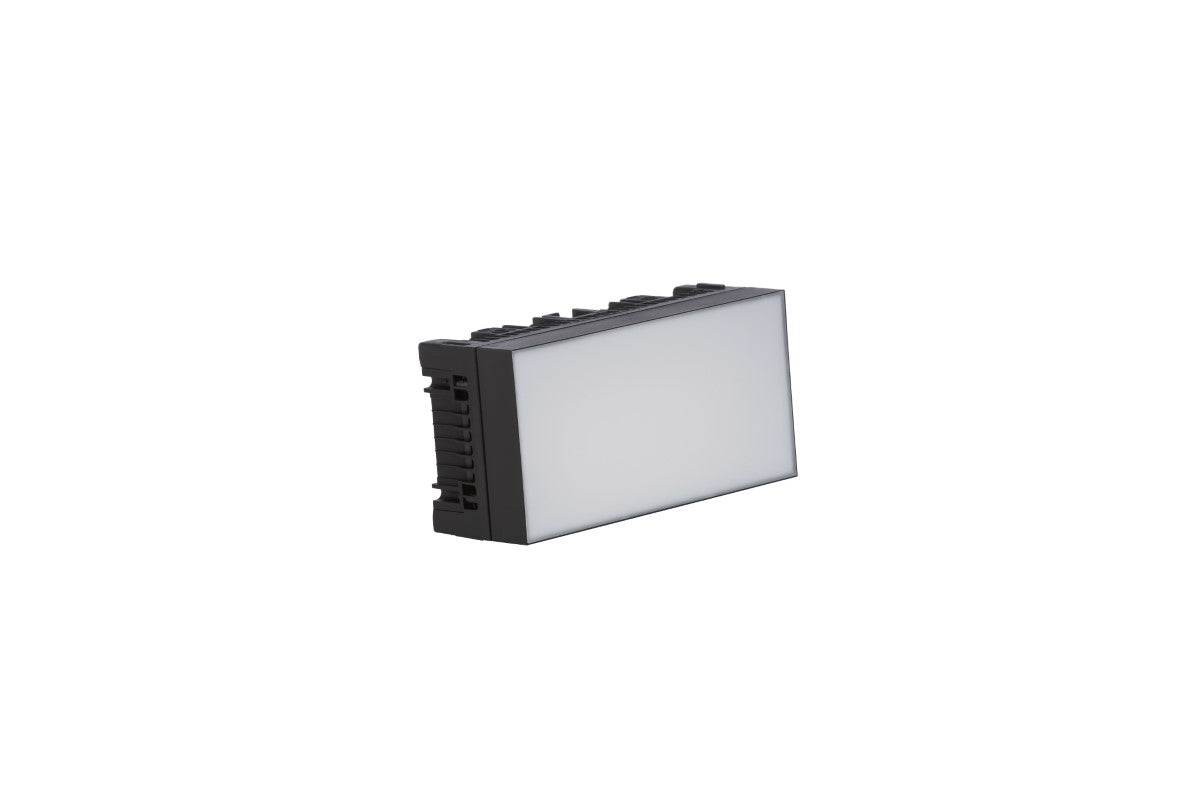

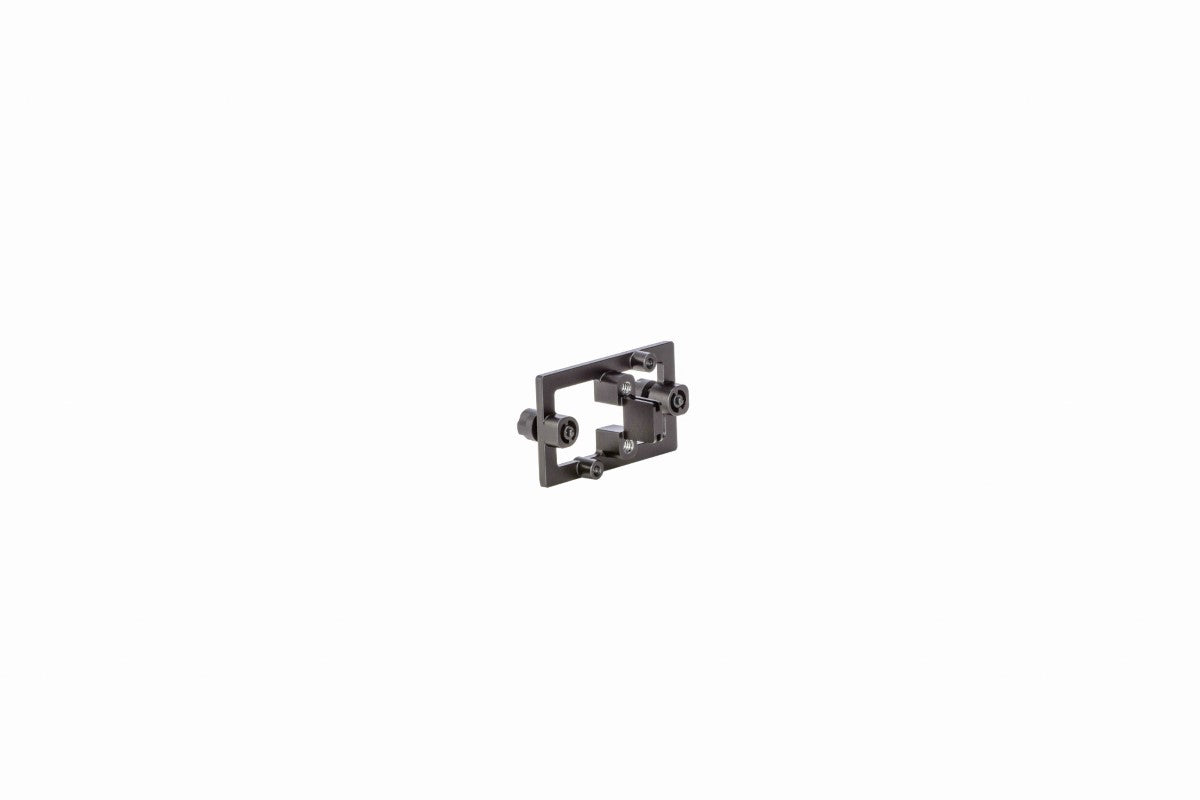

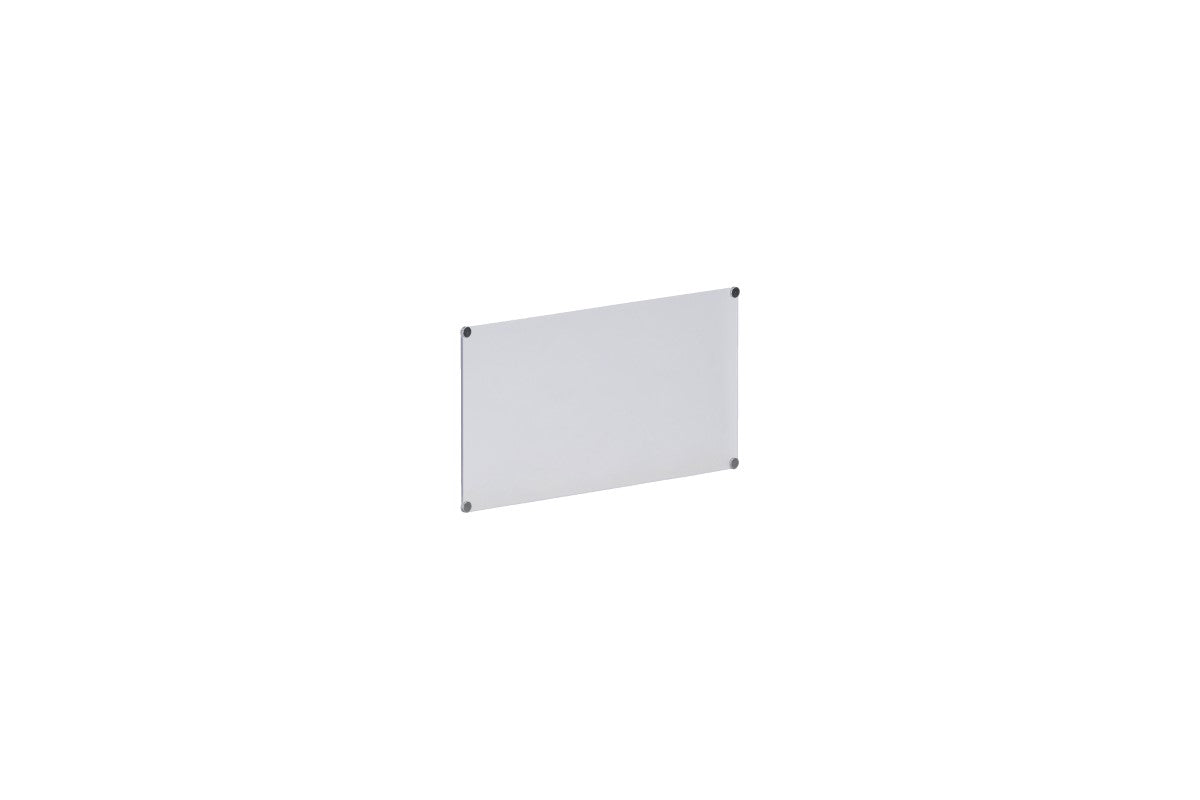

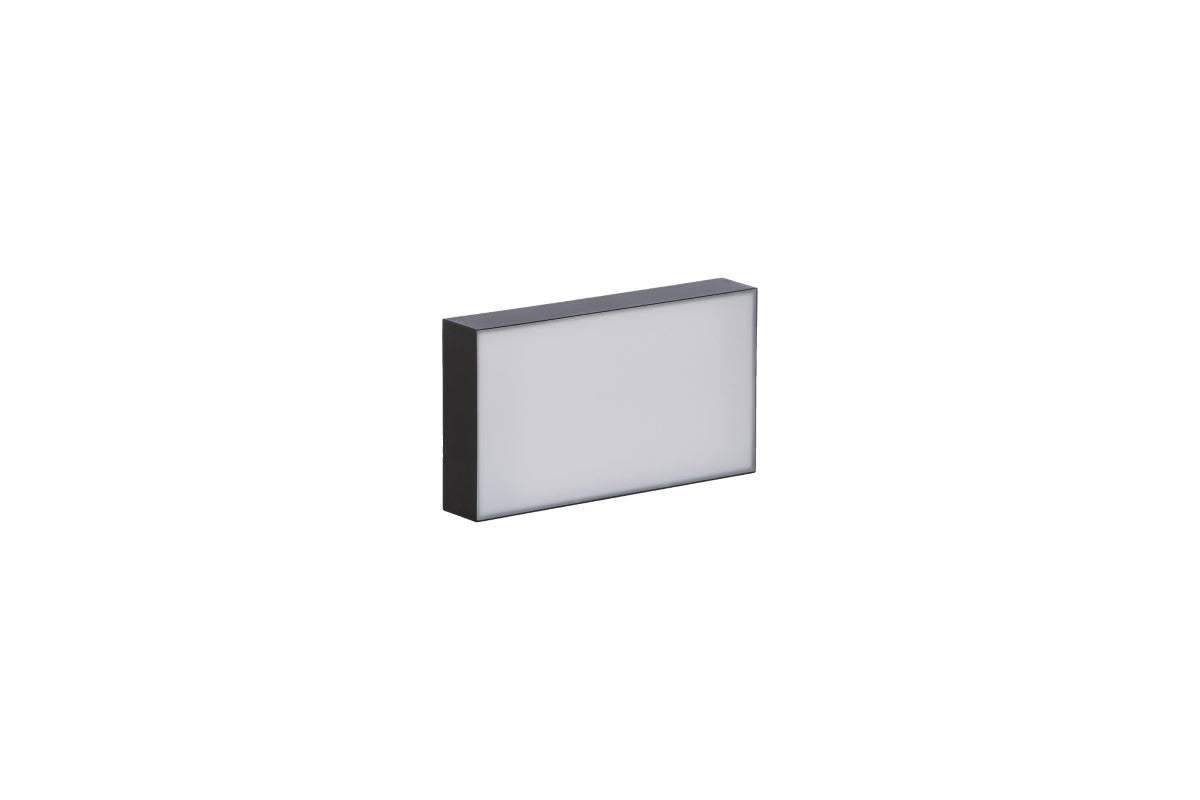

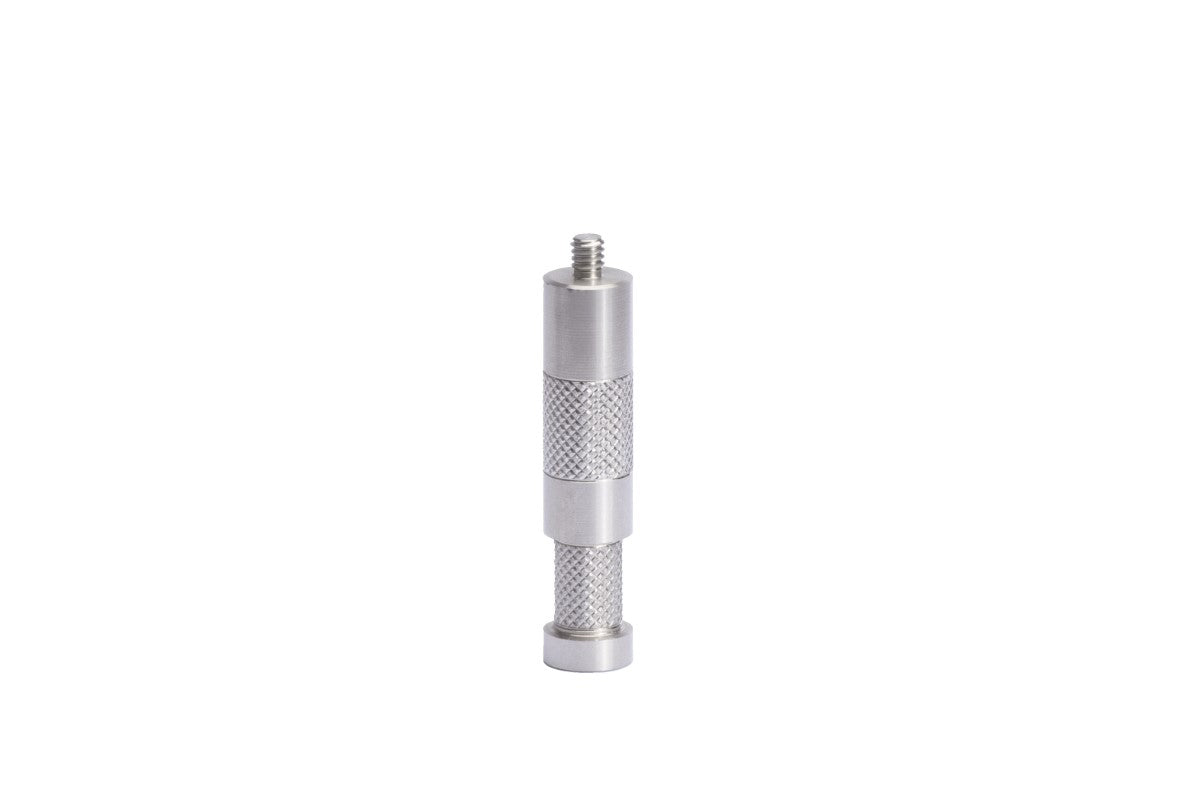

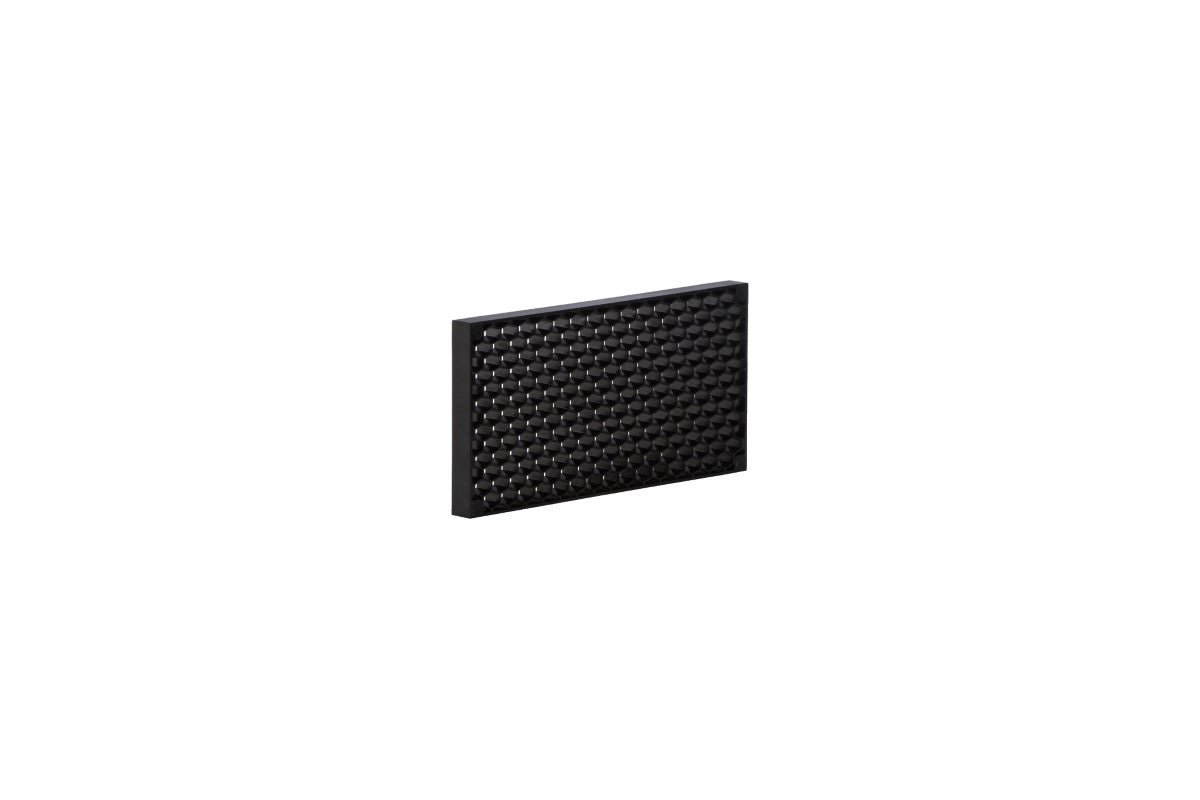

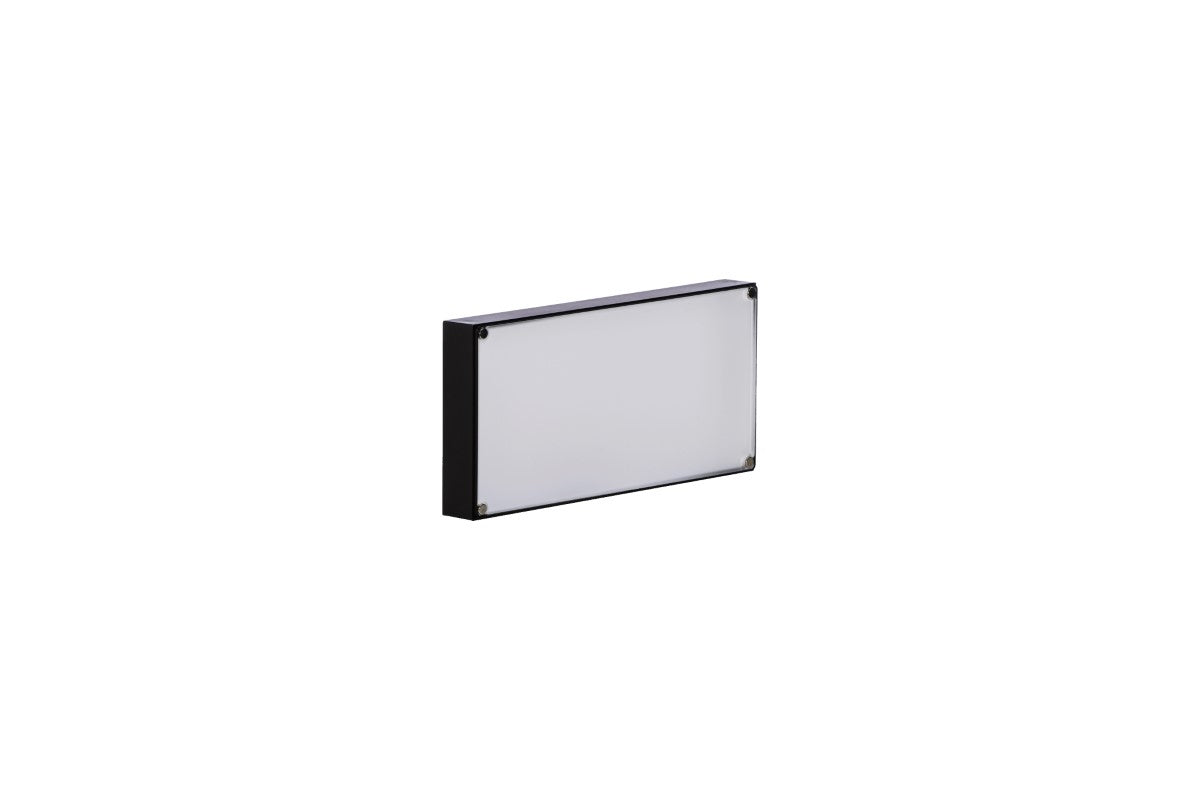

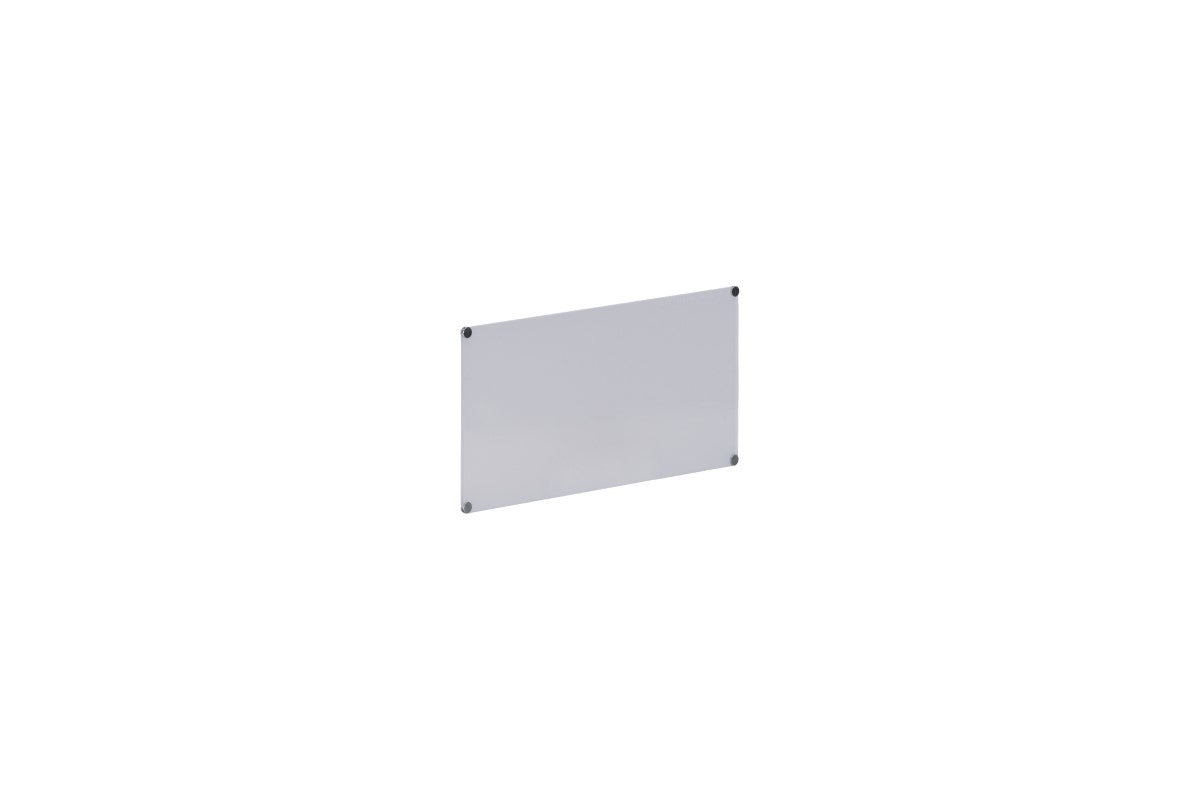

The Astera FP6 Hydra Panel is a is a battery-powered LED panel for film, studio and stage lighting and includes a Diffuser, Intensifier, Soft Frame, Egg Crates, and Gel Holder. The HydraPanel can be mounted with its FlexBase accessory, Babypin and backside magnet. With the ConnectorPlates, up to four panels can be connected to form one bigger panel. For longer installations it can be wired for power and data via an Astera PowerBox. The full-spectrum Titan LED Engine generates an impressive 1300 Lumen output while running on battery power for 1:45h. All packed into a solid watertight housing of just 600g weight and 166mm length (1.3lb, 6.5").
Product Features

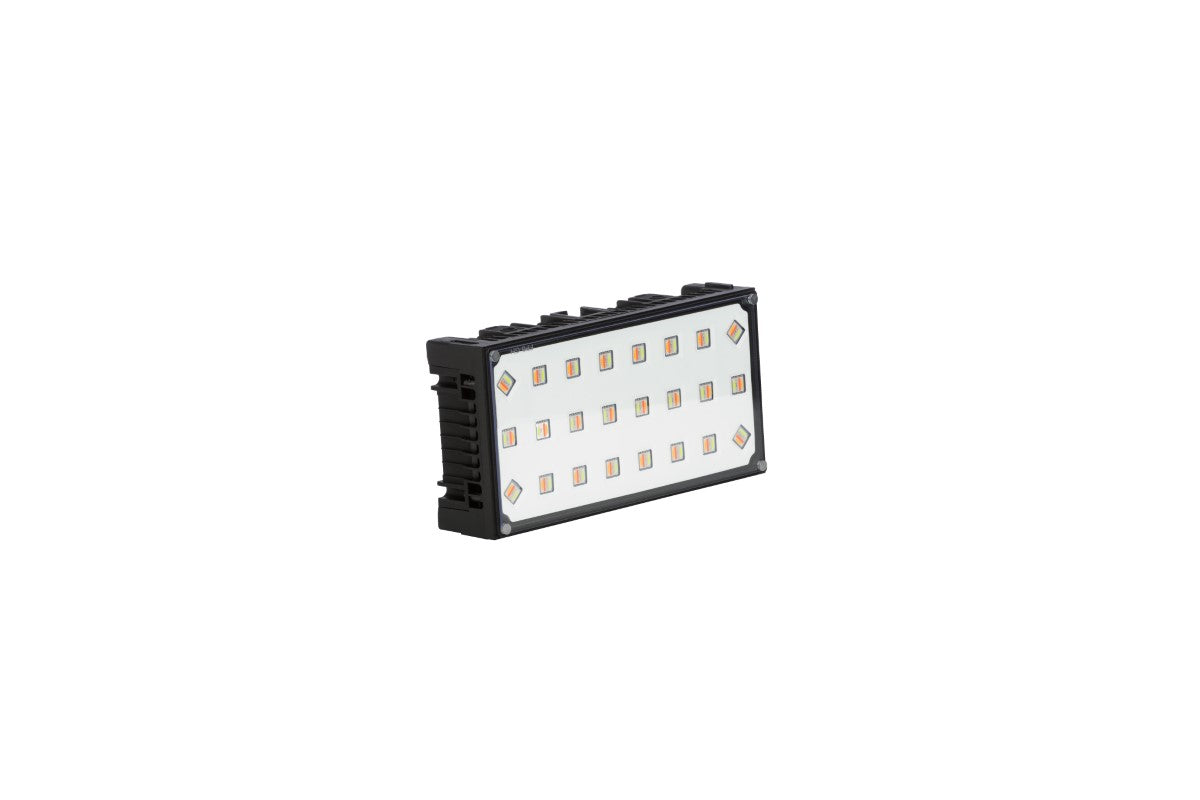

- Titan LED Engine: Industry-leading colors and whites
- Wireless and Wired DMX: Built-in CRMX module and wired DMX via Astera PowerBox
- Light Modifiers: 6 included modifiers to adjust beam from 40° to 100°

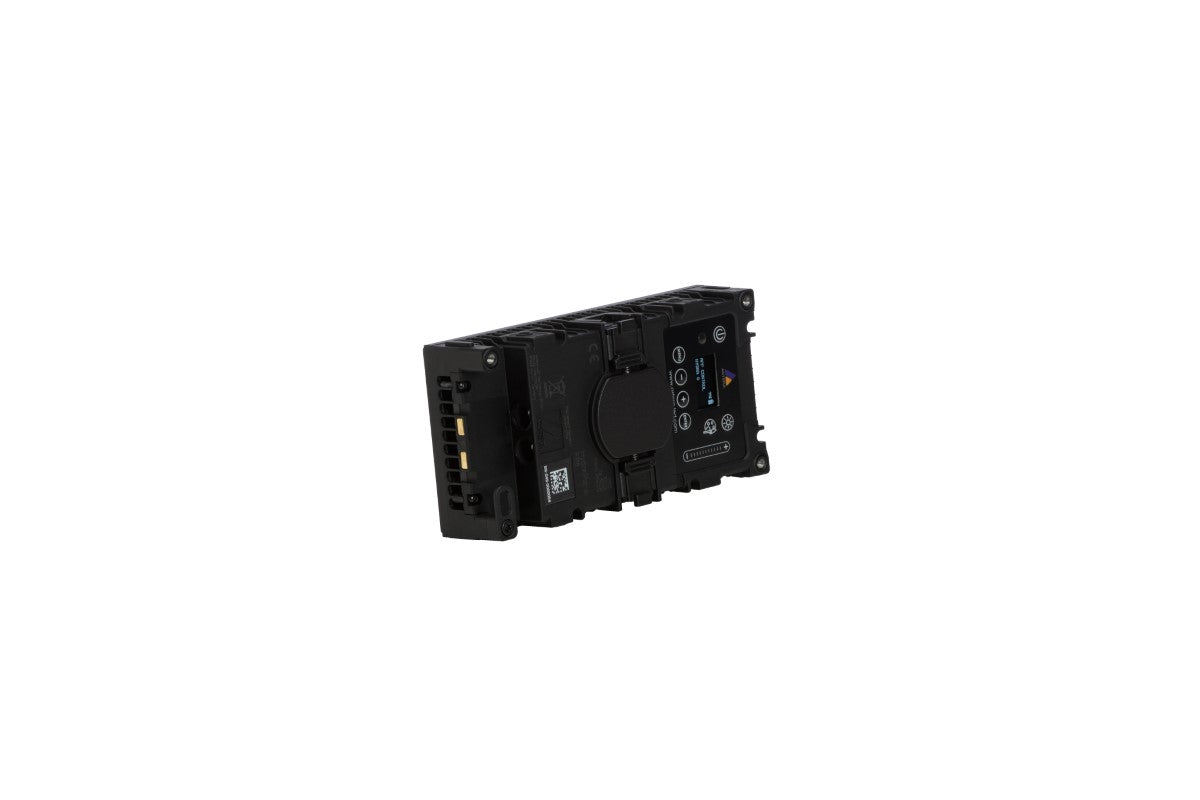

- New Control Panel: Touch Slider for faster setting of colors, CCT, brightness etc
- Easy Integration into Scenery: Unobtrusive Look when installed via backside magnet

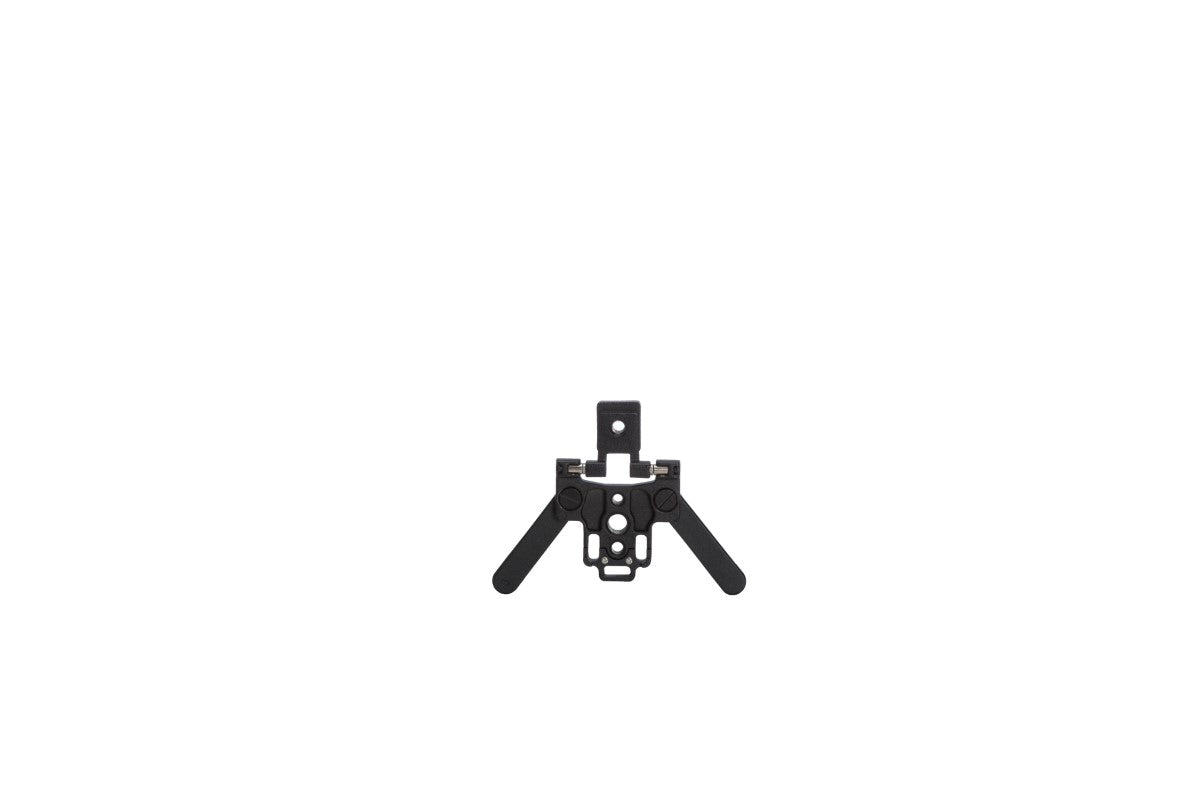

- FlexBase: Stand on floor, mount via Babypin, screw to walls etc.
- Cold Shoe: Add third-party accessories and mount on cameras
- Combine up to 4 panels: Synchronized control from a single control panel
Product Specifications
Optical
- Order Code: FP6
- LED Engine: Titan LED Engine
- Colors: RGBMintAmber
- Total LED Power: 25W
- LED Power Draw: 17W
- Luminous Flux 3200K: 1102 Lumens
- Luminous Flux 4000K: 1287 Lumens
- Luminous Flux 5500K: 1298 Lumens
- Light Output 3200 K @ 1m: 443 Lux
- Light Output 4000 K @ 1m: 512 Lux
- Light Output 5500 K @ 1m: 516 Lux
- CRI (Ra)/ TLCI 3200- 6500 K*: ≥96
- Beam Angle: 110° x 100°
- Field Angle: 150° x 145°
- Strobe: 0 – 25 Hz
- Pixels: 6
- (*Typical value)
Electrical
- Battery Runtime: up to 20 hours
- Battery Runtime Max Brightness: 1h 45m
- Battery Lifetime: 70 % after 300 cycles
- Charging Time (nominal): 3 hours
- DC Input: 24VDC – 0.85 A
- DC Connector: 5,5mm x 2,1mm
Control
- Wired DMX: Yes Via FP1-PWB/FP3-DTL/PWB2-86
- CRMX Receiver: Built-in
- BluetoothBridge BTB: Built-in
- Wireless Protocols: CRMX, UHF, Bluetooth, WiFi
- Wireless Range (CRMX/UHF): Up to 300 m / 330 yds
- Bluetooth: Up to 3 m / 3.3 yds
- Infrared Control: Yes
- ControlSync: Yes
- TouchSlider: Yes
Construction
- Housing Material: Polymer & Metal
- IP Rating: IP65
- Ambient Operating Temperature: 32F – 104F
- Weight: 1.3 lb
- Dimensions L x W x D: 6.53" x 3.34" x 1.71"
