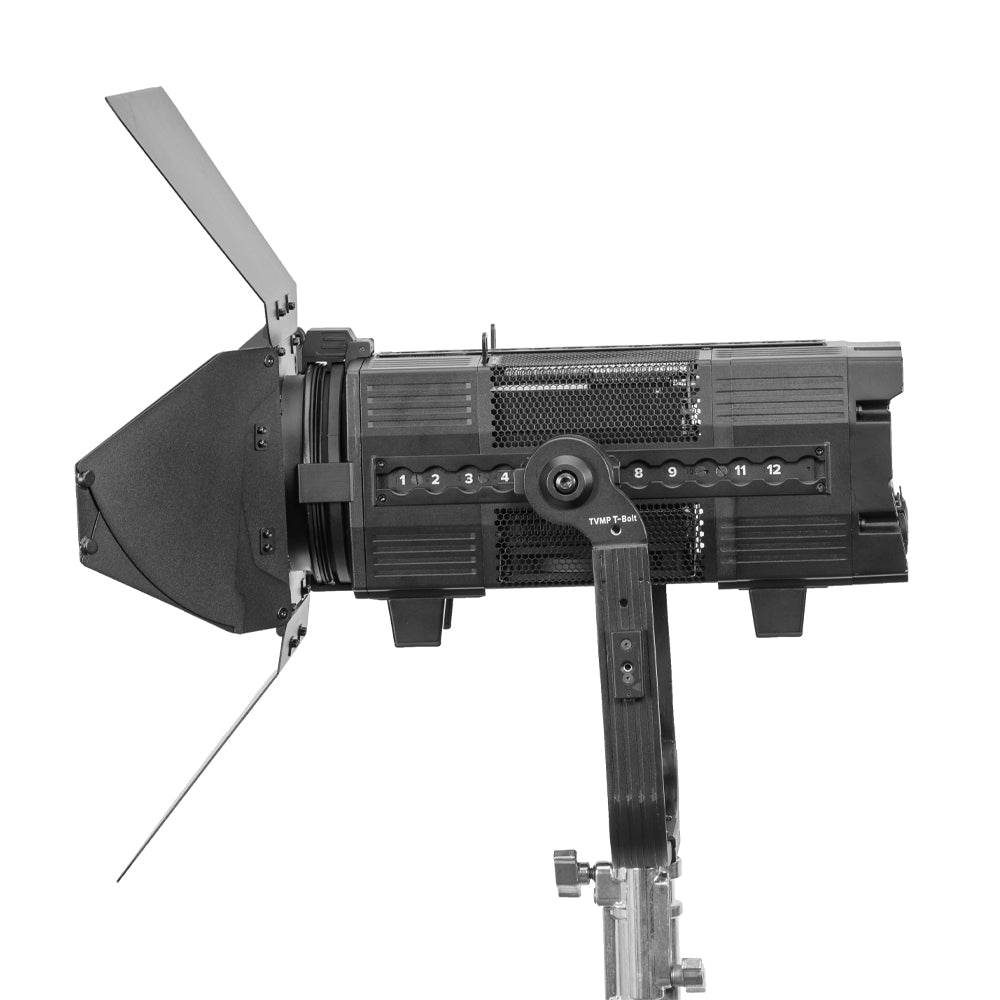

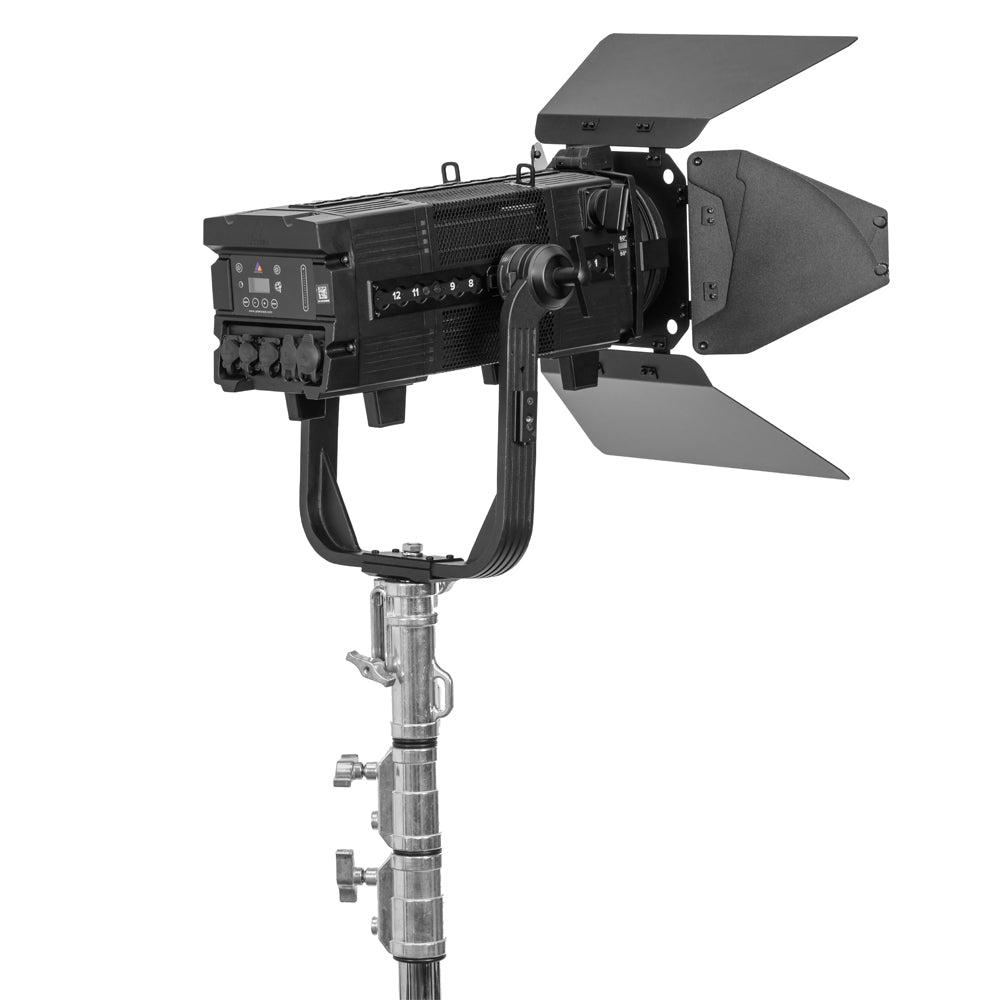

Astera LeoFresnel - 250W RGBAM LED Ellipsoidal with 15 to 60-Degree Zoom

Product Overview

Astera's LeoFresnel is as an exceptional solution for film, studio, and event lighting. LeoFresnel boasts an impressive output comparable to a traditional 1000W Tungsten Fresnel. With a beam angle of 15 to 60-degree without color fringing, wireless and wired DMX control, these lights offer impressive performance while consuming only 250W. Easy to mount and adjust with removable handles and YokeBases, they enhance creativity and productivity on any set.

Product Features

• Built-in battery - Built-in battery for 2 hours on MAX Runtime.
• External Battery Option - Connect one or two RuntimeExtenders with V-Mount or Gold Mount battery for additional Runtime. One 14.4 V battery can operate the light on reduced power. A single 26V battery or two 14.4V batteries allow full power output.
• Removable Lens - Slide out Barndoor and Lens to create an Open Source fixture.
• Yoke Quick-Release - The light can easily be taken out of its Yoke.
• Removable Handle - TrackHandle can be removed or inserted into the Airline Tracks.

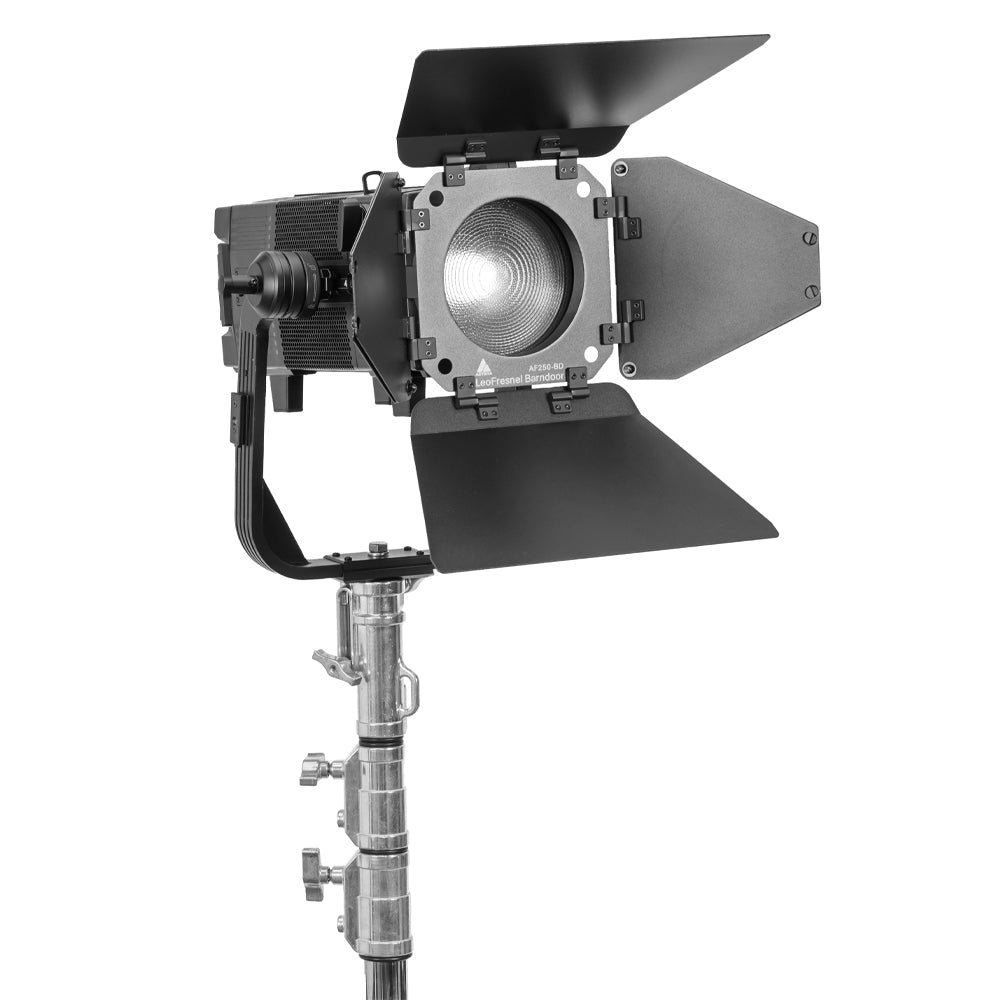

• Barndoor - The Barndoor contains a total of 8 leaves, 4 of them can be slid out if needed.
• Wired DMX - The included XLR in+out sockets allow easy DMX wiring.

Product Specifications

Optical

• LED Engine: Titan LED Engine
• Colors: RGB, Mint, Amber
• Total LED Power: 350 W
• LED Power Draw: 250 W
• CRI (Ra)/ TLCI: 3200-6500K* >96
• Beam Angle: 15° - 60°
• Strobe: 0-25 Hertz
• Pixels: 1

Electrical

• Battery Runtime: up to 20 hours
• Battery Runtime (max. Brightness): 2 h
• Battery Lifetime: 80 % after 400 cycles
• DC Input: 12-48 VDC; max. 15A
• DC Connector: 3pin XLR (Pin 1:- Pin 2:+)
• AC Input: 100-240 VAC, 50/60 Hertz, 3.8 A, 250 W
• AC Connector: PowerCON TRUE1 Input/Output

Control

• Wired DMX: Yes (5-pin XLR)
• CRMX Receiver: Built-in
• BluetoothBridge BTB: Built-in
• Wireless Protocols: CRMX, UHF, Bluetooth, WIFI, RDM
• Wireless Range: CRMX/UHF up to 300m/330 yds, Bluetooth up to 3m/3.3 yds
• Infrared Control: Yes
• TouchSlider: Yes

Construction

• Housing Material: Polymer & Metal
• IP Rating unwired: IP55
• IP Rating wired: IP55
• Ambient Operating Temperature: 32-104F
• Weight (with AF250-FL, AF250-BD): 30.48 lbs
• Weight (with AF250-FL, AF250-BD, AF250-YK, 2x AF250-YKB): 35.99 lbs
• Dimensions L x W x D: 17.91" x 8.46" x 9.45"
• Dimensions L x W x H (with AF250-YK, 2x AF250-YKB, AX-TVMP, AX-THD): 17.91" x 14.61" x 21.46"
• Mounting Options: AirlineTracks, Yoke with 2x BrickMount (PB15-BMO) and 1/2" mounting hole

What's included

• (1) Yoke (AF250-YK)
• (1) YokeBase (AF250-YKB)
• (1) Fresnel Lens (AF250-L)
• (1) BarnDoor (AF250-BD)
• (1) TrackHandle (AX-THD)
• (1) Rabbit-Rounder Adapter
