Astera Set of 8 PixelBrick with Charging Case PB15-SET

Product Overview

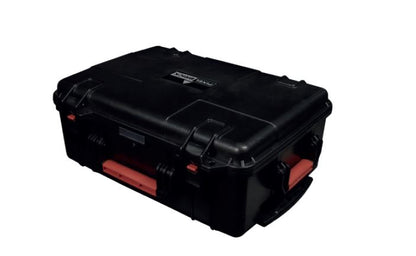

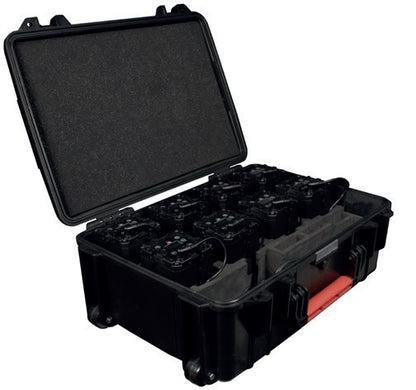

Astera PB15-SET PixelBrick Set includes 8x PixelBrick, 8x BrickBracket, 8x BrickConnect, 8x 30 Degree Flood Filter, 8x 17 Degree Beam Softener, and 1x Charging Case.

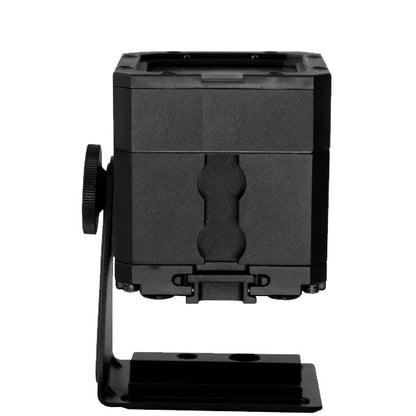

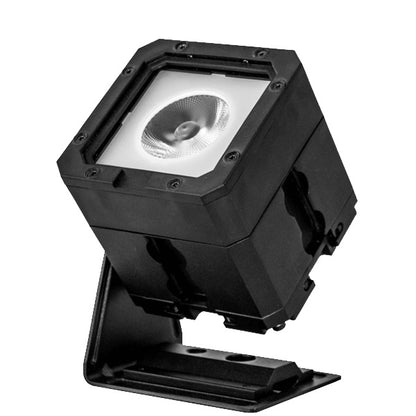

The Astera PixelBrick is a 15W RGB+Mint+Amber LED multi-purpose spotlight not much larger than an AX3 and features the Titan LED engine, CRMX and Wired DMX via PowerBox and direct App control without ART7. Each of its 4 sides includes an airline track and a nifty rail to slide-in mounting accessories which allows a quick connection of several PixelBricks to form clusters and geometrical shapes.

In addition to being a battery-powered uplight and spotlight with 5 different beam options, multiple PixelBricks can be connected to form clusters and shapes. With about 10cm edge length and 1kg weight, it is small and lightweight while still featuring a powerful output of high-quality light which meets the highest demands of film, TV and stage clients.

Product Features

• Combine several units into a cluster using the included BrickConnect accessory
• Build creative shapes using various mounting accessories such as the BrickHinge (sold separately)
• Built-in Titan LED engine featuring RGB, Tunable White, and Amber LEDs
• Filters (30 Degree Flood Filter, 17 Degree Beam Softener Filter come included) and Dome (BrickDome sold separately) create different beams and looks for a variety of applications and aesthetics
• AirlineTrack located on all 4 sides of PixelBrick for accessories and mounting

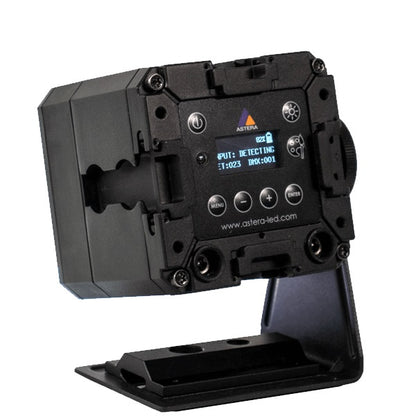

• Backside display with dedicated Color and Brightness buttons

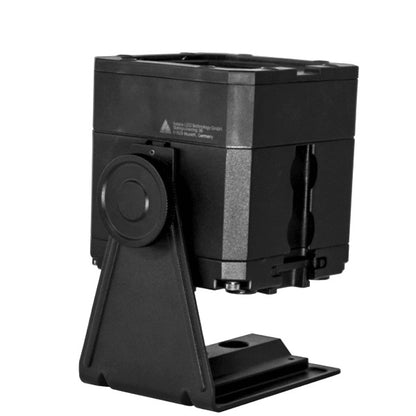

• Removeable adjusting bracket
• Direct App Control (No ART7 AsteraBox required)
• Talkback+: Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.
• Seamless Runtime: Set the length of your production and be sure that your lights won`t run out while still getting the maximum brightness.
• TruColor Calibration: Individually calibrated lights lead to 100% color consistency and exact color reproduction of color temperature and filter gels.
• Effects: Quickly build programs out of colors and effects, trigger them or make them match a beat.
• Flicker Free: Scrambled PWM technology to avoid flickering when filming.
• Green/Magenta Correction: Adjust green/magenta during content creation to reduce postproduction work.
• Scheduled StandBy: Switch lights into power-saving standby and schedule them to wake up when the production starts.
• Dynamic PowerBoost: This exclusive feature makes the light able to display the maximum brightness at all time and intensify non-white colors.
• Emergency Lights: Switches to white light when AC power is cut to keep your event save
• Anti-Theft: The lights give visual and audible alarm and send notification to the AsteraApp if they are being moved during an event.
• DJ Feature: Auto BPM analyzes the beat and matches programs to it, flash buttons can trigger special effects while being held down.
• Other Features: The AsteraApp is packed with many additional items and new features are frequently added via software update.

Product Specifications

Optical

• LED Engine: Titan LED Engine
• Colors: RGB Mint Amber
• Total LED Power: 15W
• Power Draw: 12W
• Light output: 2700K, 3200K, 5500K:* 388lm, 450lm, 375lm
• CRI(Ra)/TLCI 3200-6500K*: ≥96
• Beam Angle: 13°
• Strobe: 0 – 25Hz
• Pixels: 1

Electrical

• Battery Lifetime: 70 % after 300 cycles
• Battery Runtime: up to 20 hours
• Charging Time (nominal): 4 hrs
• Input Voltage: 24VDC
• Input Current: 0.8A

Control

• Wired DMX: Yes (via PWB-2-86)
• CRMX Receiver: Built-in
• Wireless Frequencies: CRMX 2.4GHz, UHF, Bluetooth
• Range (m/yds): 300 meters / 330yds

Construction

• Housing: Aluminium
• IP Rating: IP65
• Ambient Temperature: 32°F- 104°F
• Weight: 2.47 lbs
• Dimensions: 3.6" x 3.6" x 3.7"
