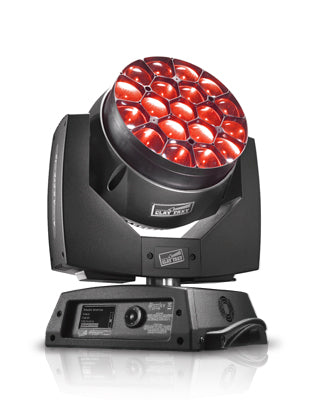

Clay Paky A.leda B-EYE K10 CC - 19 x 15 Watt RGBW LED Moving Head Wash

Product Overview

A.leda B-EYE CC (Color Changer) is directed to those many professional users who wish to use the superior optical characteristics of B-EYE technology exclusively in the wash mode and do not need the mid-air and graphic effects. Unlike the full version, this fixture does not provide control of each pixel and does not have a rotating front lens. The A.leda B-EYE CC is therefore an extraordinarily bright LED-wash, with a perfectly uniform light field, a really wide zoom (from 4 to 60 degrees), and complete colour and white light management. B-EYE CC fixtures are an indispensable tool in every show, where they make the utmost in modern colour wash technology. They are perfect for TV studios, theatres, tours, corporate events, showrooms and theme parks.

Product Features

• Source Type: RGBW LED
• LED Nominal Wattage: 15W
• Number of LEDs: 19
• Unique optical system, featuring unmatched zoom range (4°-60°) and even light spread
• invisible front grid
• White CT Emulation 2500-8000K
• RGB auto-tuning to lamp CT Emulation
• Tungsten Lamp Emulation

Product Specifications

POWER SUPPLIES

• 100-240V 50/60Hz

INPUT POWER

• 350VA

LIGHT SOURCE

• 19 Osram Ostar RGBW LEDs
• LED Nominal Wattage: 15W
• LED Average Life: 50,000 h

OPTICS

• 4°-60° Electronic Zoom Range

EFFECTS SECTION

• 0-100% linear electronic dimmer
• Adjustable speed stop/strobe effect, with instantaneous blackout
• Dedicated channel for color temperature setting
• White CT Emulation 2500-8000K
• RGBW auto-tuning to lamp CT Emulation
• Tungsten Lamp Emulation
• Slow Strobe: 1 flash/sec
• Fast Strobe: 25 flash/sec

CONTROL AND PROGRAMMING

• Control channels: 20
• Protocol signal: USITT DMX 512
• RDM
• Display: Graphic LCD backlit b/w Display
• Pan/Tilt Resolution: 16 bit
• Dimmer Resolution: 16 bit
• Movement control: vectorial
• DMX signal connection: 5 pole XLR input and output
• Software upload through DMX input

BODY

• Aluminium structure with die-cast plastic cover
• Two side handles for transportation
• PAN lock for transport and maintenance

MOVING BODY

• Movement by means of two stepper motors, controlled by microprocessor
• Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit
• PAN = 540°
• TILT = 210°

ELECTRONICS

• Long-life auto-charging buffer battery
• Preset color macros
• Function reset controllable from a central control unit
• Menu-driven internal self-test function
• Display: backlit black-and-white graphic LCD display
• Electronic check-up of every single parameter with error alarm
• DMX level monitoring on each channel
• Automatic internal data transmission error diagnostics
• Firmware upgrade even when the unit is not connected to the power supply
• Firmware transfer from one light to another

SAFETY DEVICES

• Automatic power safety derating in case of overheat of the LED board
• Forced ventilation

WORKING POSITION

• Working in any position
• Hanging system: with fast-lock omega clamps (1/4 turn) on the base

CE MARKING

• In conformity with the European Directives:
• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
• ETL
• This product is available, on demand, with cETLus Listed Mark, that complies with the UL 1573, UL 8750 and CSA C22.2 No. 166 standards.

WEIGHT

• 14.5 Kg (31.9 lbs)
