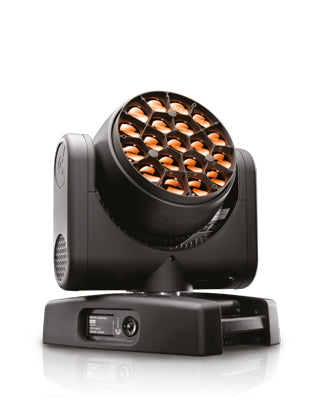

Clay Paky A.leda B-Eye K20 - 37 x 15W RGBW LED Moving Head Wash with 4 to 60-Degree Zoom in Black Finish

The A.leda B-EYE K20 is a high performance wash light, a breathtaking beam light, and a creator of completely new spectacular visual effects. Its unparalleled versatility makes it an extremely interesting creative tool for all lighting designers.

The B-EYE is first and foremost an excellent quality wash light. It is able to wash surfaces with colors at any distance, making the most of its light source. B-EYE is brighter than any LED-wash with the same rated power, thanks to its special optical unit with a truly amazing lumen/watt ratio, designed and built by Clay Paky. The zoom ranges from 4° to 60° and it is therefore suitable both for environments with low ceilings (small theatres and TV studios, for example), where large angles are extremely useful, and for shows in arenas or large environments, where a tight zoom is perfect.

When the B-EYE beam is zoomed down to 4°, the "wash" light turns into a "beam" fixture. The B-EYE therefore becomes a surprising mid-air parallel effect light, capable of generating a pulsating beam of micro-rays, which may be controlled individually, each with its own colors and shades. All the parameters of each LED can be completely controlled.

Lastly, the B-EYE K20 introduces a completely new feature: the front lens may be rotated to create lots of small bright compositions, which may be opened and closed like petals. By adding colors and dynamic graphics, the B-EYE generates never-seen-before graphic light effects.

Product Features

• Source Type: RGBW LEDs
• LED Nominal Wattage: 15W
• Number of LEDs: 37
• Versatile, three operating modes: wash, beam, FX effect
• Unique optical system, featuring unmatched zoom range (4°-60°) and even light spread
• Individual LED control for each parameter
• Invisible front grid
• Beam edge softening control (in wash mode)
• Exclusive parallel beam consisting of an array of individually controllable micro-beams
• Enhanced electronic engine for dynamic beam pattern design, with digital accuracy and repeatability
• Art-Net / RDM
• Rotating front lens for countless vortex effects, for aerial or "kaleidoscopic" projection use
• White CT Emulation 2500-8000K
• RGB auto-tuning to lamp CT Emulation
• Tungsten Lamp Emulation

Specifications

Power Supplies

• 100-240V 50/60Hz

Input Power

• 750VA

Light Source

• 37 Osram Ostar RGBW LEDs
• LED Nominal Wattage: 15W
• LED Average Life: 50,000 h

Optics

• 4°-60° Electronic Zoom Range

Effects Section

• Three operating modes: wash, beam, FX (Kaleido effects)
• Bi-directional Rotating Front Lens
• Digital Wash-Beam Framing effect
• Beam edge softening control (in Wash mode)
• Pixel Patterning Macros with enhanced control
• 0-100% linear electronic dimmer
• Adjustable speed stop/strobe effect, with instantaneous blackout
• Dedicated channel for color temperature setting
• White CT Emulation 2500-8000K
• RGBW auto-tuning to lamp CT Emulation
• Tungsten Lamp Emulation
• Slow Strobe: 1 flash/sec; Fast Strobe: 25 flash/sec

Control and Programming

• Control channels: 21 in standard mode
• DMX protocol signal: USITT DMX 512
• Art-Net / RDM
• Display: Graphic LCD backlit b/w Display
• Pan/Tilt Resolution: 16 bit
• Dimmer Resolution: 16 bit
• Movement control: vectorial
• DMX signal connection: 3 and 5 pole XLR input and output
• Software upload through DMX input

Body

• Aluminium structure with die-cast plastic cover
• Two side handles for transportation
• PAN lock for transport and maintenance

Moving Body

• Movement by means of two stepper motors, controlled by microprocessor
• Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit
• PAN = 540°
• TILT = 210°

Electronics

• Long-life auto-charging buffer battery
• Preset color and graphic effect macros
• Function reset controllable from a central control unit
• Menu-driven internal self-test function
• Ethernet ready with RJ45 socket
• Display: backlit black-and-white graphic LCD display
• Electronic check-up of every single parameter with error alarm
• DMX level monitoring on each channel
• Automatic internal data transmission error diagnostics
• Firmware upgrade even when the unit is not connected to the power supply
• Firmware transfer from one light to another

Safety Devices

• Automatic power safety derating in case of overheat of the LED board
• Forced ventilation

Working Position

• Working in any position
• Hanging system: with fast-lock omega clamps (1/4 turn) on the base

CE Marking

• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
• ETL
• Available, on demand, with cETLus Listed Mark, that complies with the UL 1573, UL 8750 and CSA C22.2 No. 166 standards.

Weight

• 21 Kg (46.3 lbs)
