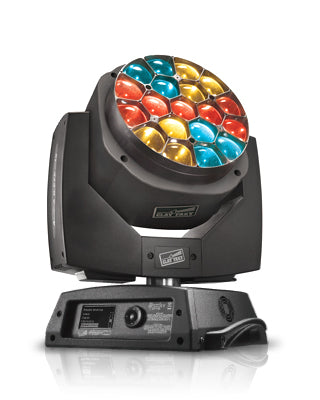

Clay Paky A.leda B-Eye K20 CC - 37 x 15W RGBW LED Moving Head Wash with 4 to 60-Degree Zoom in Black Finish

The A.leda B-EYE K20 CC is a special version of the B-EYE, designed for lighting designers who only want a wash light, but still want to be able to use the superior optical unit of Clay Paky's award-winning B-EYE.

For this case, where no mid-air effects and graphic projections are needed, Clay Paky has created a "simpler" B-EYE version. Unlike the full version, the B-EYE CC does not provide control of each pixel and does not have a rotating front lens.

It is therefore an extraordinarily bright LED wash, with a perfectly uniform light, a wide zoom (from 4 to 60 degrees), and complete color and white light management. The B-EYE K20 CC is a "backbone" tool for TV studios, theatres, tours, corporate events, show rooms and theme parks.

Product Features

• Source Type: RGBW LED
• LED Nominal Wattage: 15W
• Number of LEDs: 37
• Unique optical system, featuring unmatched zoom range (4°-60°) and even light spread
• Invisible front grid
• Preset color and effects macros
• White CT Emulation 2500-8000K
• RGB auto-tuning to lamp CT Emulation
• Tungsten Lamp Emulation
• 0-100% electronic dimmer
• Adjustable stop/strobe, with instanta­neous beam stop (1-25 flashes/s)
• Remote Device Management (RDM)
• Weight: 21 Kg (46.3 lbs)
• Size H: 589 mm (23.19"), W: 330 mm (13"), L: 395 mm (15.55")

Specifications

Power Supplies

• 100-240V 50/60Hz

Input Power

• 550VA

Light Source

• 37 Osram Ostar RGBW LEDs
• LED Nominal Wattage: 15W
• LED Average Life: 50,000 h

Optics

• 4°-60° Electronic Zoom Range

Effects Section

• 0-100% linear electronic dimmer
• Adjustable speed stop/strobe effect, with instantaneous blackout
• Dedicated channel for color temperature setting
• White CT Emulation 2500-8000K
• RGBW auto-tuning to lamp CT Emulation
• Tungsten Lamp Emulation
• Slow Strobe: 1 flash/sec
• Fast Strobe: 25 flash/sec

Control and Programming

• Control channels: 20
• protocol signal: USITT DMX 512, RDM
• Display: Graphic LCD backlit b/w Display
• Pan/Tilt Resolution: 16 bit
• Dimmer Resolution: 16 bit
• Movement control: vectorial
• DMX signal connection: 5 pole XLR input and output
• Software upload through DMX input

Body

• Aluminium structure with die-cast plastic cover
• Two side handles for transportation
• PAN lock for transport and maintenance

Moving Body

• Movement by means of two stepper motors, controlled by microprocessor
• Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit
• PAN = 540°
• TILT = 210°

Electronics

• Long-life auto-charging buffer battery
• Preset color macros
• Function reset controllable from a central control unit
• Menu-driven internal self-test function
• Display: backlit black-and-white graphic LCD display
• Electronic check-up of every single parameter with error alarm
• DMX level monitoring on each channel
• Automatic internal data transmission error diagnostics
• Firmware upgrade even when the unit is not connected to the power supply
• Firmware transfer from one light to another

Safety Devices

• Automatic power safety derating in case of overheat of the LED board
• Forced ventilation

Working Position

• Working in any position
• Hanging system: with fast-lock omega clamps (1/4 turn) on the base

CE Marking

• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
• ETL
• Available, on demand, with cETLus Listed Mark, that complies with the UL 1573, UL 8750 and CSA C22.2 No. 166 standards.

Weight

• 21 kg (46.3 lbs)
