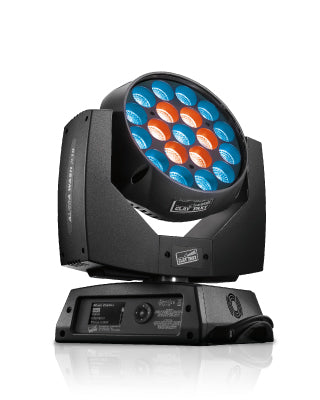

Clay Paky A.leda Wash K10 - 19 x 15 Watt RGBW LED Moving Head Wash

Product Overview

A.LEDA WASH K10 is the mid-range model in the A.LEDA Series - the first professional Clay Paky fixtures to use LEDs as light sources. It offers a valid alternative to discharge lamp washlights, adding all the benefits of LED technology: low energy consumption, long light source life, small size, light weight and robustness. A.Leda Wash K.10 is fitted with multicolor RGBW LEDs that produce a full range of vivid colors as well as excellent shades of white. It is also equipped with a motorised and fully controllable 14°-70°. Each color of each LED may be controlled separately: this unique feature not only allows you to create an endless range of color variations, but also to use each LED of the array as a pixel in order to draw all kinds of graphic images that change dynamically both in shape and color. To ease operation, the light has a library of pre-programmed graphic effects, which operators may customise by changing each parameter: intensity of each color, speed of change, etc.

Product Features

• Light source: 19x15 W RGBW LEDs
• Rated light output: 5,500 lumen
• Each LED color can be dynamically and individually controlled
• 14°-70° electronic zoom
• Dimmer: linear 0-100% on a dedicated channel
• Stop/strobe effect, with instantaneous blackout
• Extremely compact and light-weight for its power class
• Silent operation
• Very quick linear 540° pan and 270° tilt movements
• New design high performance electronics
• Modular construction for easy maintenance
• Long-life auto-charging buffer battery
• Preset color and graphic effect macros
• Ethernet ready
• Input: Powercon Neutrik
• Control channels: 20 basic channels + 57 RGB pixel-mapping channels

Product Specifications

POWER SUPPLIES

• 100-240 V 50/60 Hz

INPUT POWER

• 450 VA

LIGHT SOURCE

• 19 x 15 W RGBW Ostar Osram LEDs
• Average Life: 50,000 h
• Total output: 5,500 lumen

OPTICS

• 14°-70° electronic zoom (8°-55° at 50% of max illumination)

EFFECTS SECTION

• Gradual electronic dimmer 0-100%
• Adjustable speed stop/strobe effect, with instantaneous blackout
• Preset color and graphic effect macros
• Dedicated channel for colour temperature setting

CONTROL AND PROGRAMMING

• Control channels: 20 basic channels + 57 pixel-mapping channels
• protocol signal: USITT DMX 512
• Display: Graphic LCD backlit b/w Display
• Pan/Tilt Resolution: 16 bit
• Dimmer Resolution: 16 bit
• Movement control: vectorial
• DMX signal connection: 5 pole XLR input and output
• Software upload through DMX input

BODY

• Aluminium structure with die-cast plastic cover
• Two side handles for transportation
• PAN lock for transport and maintenance

MOVING BODY

• Angle: PAN=540°; TILT=270°

ELECTRONICS

• Long-life auto-charging buffer battery
• Preset color and graphic effect macros
• Function reset controllable from a central control unit
• Menu-driven internal self-test function
• Ethernet ready
• Display: backlit black-and-white graphic LCD display
• Electronic check-up of every single parameter with error alarm
• DMX level monitoring on each channel
• Automatic internal data transmission error diagnostics
• Firmware upgrade even when the unit is not connected to the power supply
• Firmware transfer from one light to another

SAFETY DEVICES

• Automatic power safety derating in case of overheat of the LED board

WORKING POSITION

• Working in any position.
• Hanging system: with fast-lock omega clamps (1/4 turn) on the base

CE MARKING

• In conformity with the European Directives:
• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
• ETL
• This product is available, on demand, with cETLus Listed Mark, that complies with the UL 1573, UL 8750 and CSA C22.2 No. 166 standards.

WEIGHT

• 14 Kg (30.8 lbs)
