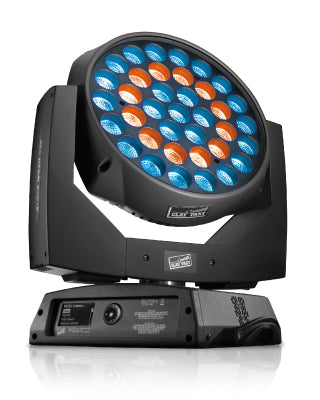

Clay Paky A.leda Wash K20 - 37 x 15 Watt RGBW LED Moving Head Wash

Product Overview

A.LEDA WASH K20 is the model at the top of the A.LEDA Series, the first professional Clay Paky fixtures to use LEDs as light sources. It offers a valid alternative to discharge lamp washlights, adding all the benefits of LED technology: low energy consumption, long light source life, small size, light weight and robustness. A.Leda Wash K.20 is fitted with multicolor RGBW LEDs that produce a full range of vivid colors as well as excellent shades of white. It is also equipped with a motorised and fully controllable 14°-70°. Each color of each LED may be controlled separately: this unique feature not only allows you to create an endless range of color variations, but also to use each LED of the array as a pixel in order to draw all kinds of graphic images that change dynamically both in shape and color. To ease operation, the light has a library of pre-programmed graphic effects, which operators may customise by changing each parameter: intensity of each color, speed of change, etc.

Product Features

• Light source: 37x15 W RGBW LEDs
• Rated light output: 10,500 lumen
• Each LED color can be dynamically and individually controlled
• 14°-70° electronic zoom
• Dimmer: linear 0-100% on a dedicated channel
• Stop/strobe effect, with instantaneous blackout
• Extremely compact and light-weight for its power class
• Silent operation
• Very quick linear 540° pan and 270° tilt movements
• New design high performance electronics
• Modular construction for easy maintenance
• Long-life auto-charging buffer battery
• Preset color and graphic effect macros
• Art-Net / RDM
• Input: Powercon Neutrik
• Control channels: 20 basic channels + 111 RGB pixel-mapping channels

Product Specifications

POWER SUPPLIES

• 100-240 V 50/60 Hz

INPUT POWER

• 750VA

LIGHT SOURCE

• 37 x 15 W RGBW Osram Ostar LEDs
• Average life: 50,000 h
• Total output: 10,500 lumen

OPTICS

• 14°-70° electronic zoom (8°-55° at 50% of max illumination)

EFFECTS SECTION

• 0-100% linear electronic dimmer
• Adjustable speed stop/strobe effect, with instantaneous blackout
• Preset color and graphic effect macros
• Dedicated channel for color temperature setting

CONTROL AND PROGRAMMING

• Control channels: 20 basic channels + 148 pixel-mapping channels
• DMX protocol signal: USITT DMX 512
• Art-Net / RDM
• Display: Graphic LCD backlit b/w Display
• Pan/Tilt Resolution: 16 bit
• Dimmer Resolution: 16 bit
• Movement control: vectorial
• DMX signal connection: 3 and 5 pole XLR input and output
• Software upload through DMX input

BODY

• Aluminium structure with die-cast plastic cover.
• Two side handles for transportation.
• PAN lock for transport and maintenance.

MOVING BODY

• Angle:
• - PAN = 540°
• - TILT = 270°

ELECTRONICS

• Long-life auto-charging buffer battery
• Preset color and graphic effect macros
• Function reset controllable from a central control unit
• Menu-driven internal self-test function
• Display: backlit black-and-white graphic LCD display
• Electronic check-up of every single parameter with error alarm
• DMX level monitoring on each channel
• Automatic internal data transmission error diagnostics
• Firmware upgrade even when the unit is not connected to the
• power supply
• Firmware transfer from one light to another

SAFETY DEVICES

• Automatic power safety derating in case of overheat of the LED board

WORKING POSITION

• Working in any position.
• Hanging system: with fast-lock omega clamps (1/4 turn) on the base

CE MARKING

• In conformity with the European Directives:
• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
• ETL
• This product is available, on demand, with cETLus Listed Mark, that complies with the UL 1573, UL 8750 and CSA C22.2 No. 166 standards.

WEIGHT

• 19.5 Kg (43 lbs)
