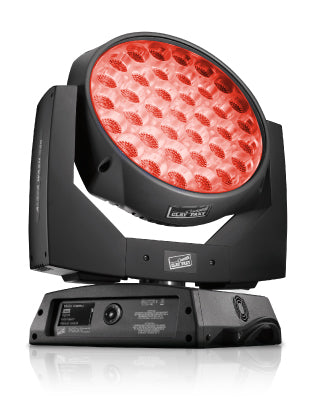

Clay Paky A.leda Wash K20 CC - 37 x 15 Watt RGBW LED Moving Head Wash

Product Overview

A.leda Wash K20 CC (Color Changer) is an excellent, high-quality washlight with enhanced color and color temperature control

Product Features

• Light source: 37x15 W RGBW LEDs
• 14°-70° electronic zoom
• Dimmer: linear 0-100% on a dedicated channel
• Stop/strobe effect, with instantaneous blackout
• White CT Emulation 2500-8000K
• RGB auto-tuning to lamp CT Emulation
• Tungsten Lamp Emulation
• Extremely compact and light-weight for its power class
• Silent operation
• Very quick linear 540° pan and 270° tilt movements
• New design high performance electronics
• Modular construction for easy maintenance
• Long-life auto-charging buffer battery
• Preset color macros
• Input: Powercon Neutrik
• Remote Device Management (RDM)

Product Specifications

POWER SUPPLIES

• 100-240 V 50/60 Hz

INPUT POWER

• 550VA

LIGHT SOURCE

• Light source: 37 x 15 W RGBW LEDs
• Average LED life: 50,000 h
• Total output: 10,900 lumen

OPTICS

• 14°-70° electronic zoom (8°-55° at 50% of max illumination)

EFFECTS SECTION

• 0-100% linear electronic dimmer
• Adjustable speed stop/strobe effect, with instantaneous blackout
• Preset color macros
• Dedicated channel for color temperature setting

CONTROL AND PROGRAMMING

• Control channels: 20
• Protocol signal: USITT DMX 512
• RDM
• Display: Graphic LCD backlit b/w Display
• Pan/Tilt Resolution: 16 bit
• Dimmer Resolution: 16 bit
• Movement control: vectorial
• DMX signal connection: 5 pole XLR input and output
• Software upload through DMX input

BODY

• Aluminium structure with die-cast plastic cover.
• Two side handles for transportation.
• PAN lock for transport and maintenance.

MOVING BODY

• Angle:
• PAN = 540°
• TILT = 270°

ELECTRONICS

• Long-life auto-charging buffer battery
• Preset color macros
• Function reset controllable from a central control unit
• Menu-driven internal self-test function
• Display: backlit black-and-white graphic LCD display
• Electronic check-up of every single parameter with error alarm
• DMX level monitoring on each channel
• Automatic internal data transmission error diagnostics
• Firmware upgrade even when the unit is not connected to the power supply
• Firmware transfer from one light to another

SAFETY DEVICES

• Automatic power safety derating in case of overheat of the LED board

WORKING POSITION

• Working in any position.
• Hanging system: with fast-lock omega clamps (1/4 turn) on the base

CE MARKING

• In conformity with the European Directives:
• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
• ETL
• This product is available, on demand, with cETLus Listed Mark, that complies with the UL 1573, UL 8750 and CSA C22.2 No. 166 standards.

WEIGHT

• 19.5 Kg (43 lbs)
