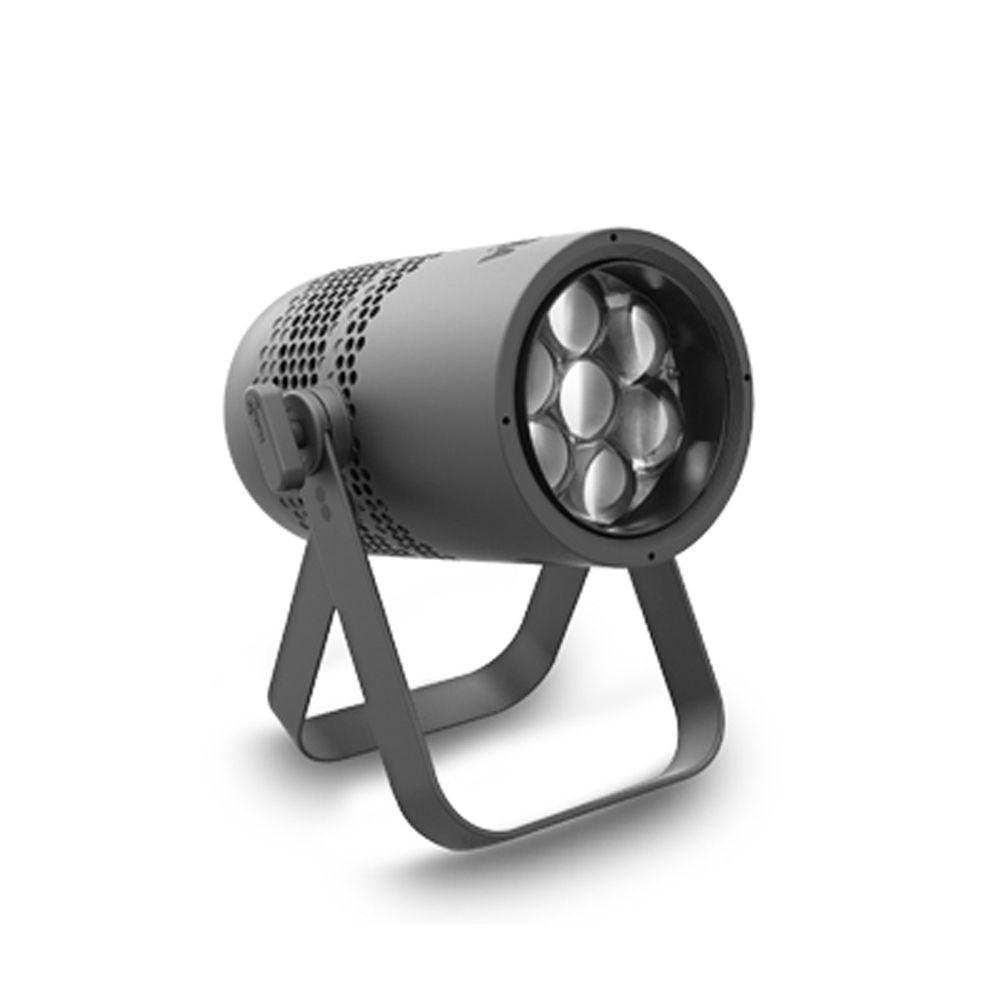

Clay Paky Actoris ParLED - 7 x 40W RGBWW LED Par with 4 to 53-Degree Zoom in Black Finish

There is an increasing demand for smaller, silent, and simpler light fixtures that produce an excellent and efficient light beam. The ACTORIS PARLED embodies these qualities is a small form factor fixture that only weighs 6 kilograms and is 306 mm in length.

First in a series of specialized models for the theatrical sector, this product features an RGBWW LED light source, that produces warm color temperatures perfect to match any complexion or scenery on stage through its replication of natural pastel colors and CRI rating greater than 90. The color temperature can also be digitally adjusted between 2500K through 6500K.

The implementation of a special warm white LEDs does not adversely affect the luminous efficiency: the ACTORIS PARLED is positioned at the top of its category, featuring a lumen output of 3400 lumens.

The ACTORIS PARLED features extremely silent operation, thanks to use of special silenced axial fans.

With a zoom range of 4 to 53° via its motorized zoom, a 24-bit electronic dimmer with five curves, 4 individually selectable operating modes, and its color range, makes the ACTORIS PARLED one of the smallest, most versatile fixtures on the market.

Using the same LED optical system as the Claypaky MINI-B WW range, you can use ACTORIS PARLED with these products for balanced color consistency. Barndoors and frames for frost and gel filters are available as optional accessories.

ACTORIS PARLED is one model being introduced through the new ACTORIS series by ADB, designed specifically for theatres and marketed by Claypaky and its dealer network.

Product Features

• Light source: 7 x 40W RGBWW Osram LEDs
• Natural CT3200K. 6500K-2500K linear CTB
• Compact and lightweight
• Highly efficient light output (3,400 lm), very low power consumption
• Motorized 4° to 53° zoom range, zoom repositioning with DMX off
• 5-curve, 24-bit dimmer with output color balance
• Pre-installed effects/color macros
• Crossfade channels between color and CTO, and between macros
• Electronic strobe @25 f/s
• Ethernet access
• 4 Operating modes: Constant - Auto - Silent - Theatre
• Control signal: USITT DMX 512. Protocols: RDM, WebServer, Art-Net and sACN
• CloudIO Ready: fully compatible with CloudIO
• Split yoke for hanging or floor mount
• Weight: 6 kg (13.2 lbs)
• Dimensions: fixture housing is 322 mm (12.7 in) long and 195 mm (7.7 in) diameter

Specifications

Power Supplies

• Operating Voltage: 100-240V, 50/60 Hz - In/Out Max 8(3) fixtures @ 200-240Vac (@ 100-120Vac)
• Power Supply: Electronic auto range with active PFC

Input Power

• Max Power consumption: 326W

Light Source Type

• 7x Osram 40W RGB+WW LEDs
• LED life expectancy: 50000hrs (20000Hrs L70*)
• *It may vary depending on various factors, as type of use and environment

Photometric Data

• Zoom range: 4°- 53°
• 3380 Lumen Output (Integrating Sphere)
• Front lens diameter: 150mm
• High efficiency optical system

Noise Level

• RnR mode (Dimmer @100%): 44.6 dBA
• Boost mode (Dimmer @100%): 36.6 dBA
• Theatre mode (Dimmer @100%): 31.5 dBA
• SLN mode (Dimmer @100%): 28.0 dBA
• Fanless mode (Dimmer @100%): 24.6 dBA

Control and Connections

• Personalities: Two different operating modes, 12/16 DMX control parameters
• Control Protocol: DMX, Art-Net, RDM, sACN
• DMX and RDM connectors: Locking 5 pin XLR IN/THRU
• Ethernet port: RJ45 IN
• Power connector: PowerCon True1 IN/OUT
• Built In Web Server

Colours

• RGB+WW colour mixing 16bit
• Linear CTB, 6500K to 2500K
• Preset macro colors

Beam

• Motorized Zoom

Dimmer/Strobe

• High resolution electronic Dimmer - 24 bit
• High speed electronic Strobe

Hardware and Software

• Display Graphic LCD backlit b/w Display
• Firmware upload from another fixture
• Firmware Upgrade via Web Server
• Diagnostic
• DMX monitoring
• Remote access through RDM
• CloudIO compatibility

Housing

• Plastic and steel structure
• Two built in brackets designed to stand on the floor
• IP20 protection rate

Working Position

• Working in any position
• Hanging system: built in brackets
• Optional safety chain

Thermal

• Max ambient temperature 45°C (113°F)
• Min ambient temperature -20°C (-4°F)
• Max temperature of the external surface 90°C (194°F)
• Total heat dissipation: 1110 BTU/hr ±10% / 1170 kJ/hr ±10%

Safety

• Minimum distance of illuminated objects 0.2 meters (8")
• Minimum distance from flammable materials 0.2 meters (8")
• Thermally protected power supply (overheating and cooling failure)
• Forced ventilation with axial fans
• T6.3A fuse

Compliance

• CE: conforms to the European Directives
• UKCA: conforms to UK Regulations
• EAC: conforms to EurAseC Regulations
• cMETus Listed

Packaging

• Carton box + Polystyrene
• Carton box + Foam Shell
• Flight case + Foam shell (8 positions)

Weight and Size

• 5.7 Kg (12.6 lbs)
• 341mm x 325mm x 275mm
• Distance between two fixtures 400mm
