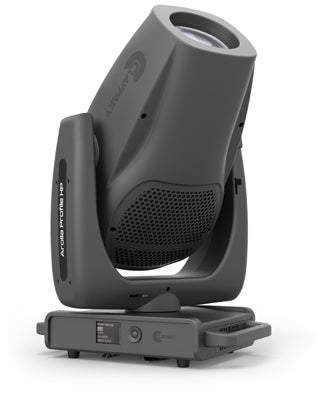

Clay Paky Arolla Profile HP - 1200W LED Moving Head Profile with 5.8 to 50.5-Degree Zoom in Black Finish

Clay Paky Arolla Profile HP - 1200W LED Moving Head Profile with 5.8 to 50.5-Degree Zoom in Black Finish

Regular price $15,120.00 USD
Regular price Sale price $15,120.00 USD
Sale Sold out

With its custom designed 1200-Watt white LED engine, the Arolla Profile HP is one of the most powerful LED Profile moving heads on the market. The LED engine produces 52,000 lumens and the Arolla Profile HP fixture's beam is flat and uniform making projections crisp and colours rich. This fixture boasts a very comprehensive assortment of features: a 5.8°-50.5° zoom, CMY colour mixing, a six-colour wheel including a CRI enhancement filter, linear CTO, six rotating gobos, seven fixed gobos, an animation disc, a four-facet rotating prism, a Claypaky framing system on four focal planes and macro channel control, a 16-blade iris, soft edge and flood frost filters, a 24-bit digital dimmer, and a fast digital stop-strobe effect. All the gobos are made of high-definition dichroic glass. They can be swapped and morphed with each other and the animation wheel to create new and exciting textures. The Arolla Profile HP has several low noise operating modes (1200 - 800 - 600 - Silent - Theatre) so you can use the unit virtually anywhere.

One of the essential features Claypaky targeted when creating this fixture was a significant reduction of the fixture's size. Comparing the Arolla Profile HP to fixtures in this class, it is one of the most compact LED Profile Moving heads available but with one of the highest wattage and output LED engines. In addition to agile movements and a powerful feature set, this compact fixture leads to several benefits for rental firms in terms of maintenance, transportation, overall cost of ownership, and more. The Arolla Profile HP offers a much quicker return of investment than ever seen before.

The Arolla Profile HP has the feature set to be the go-to light for any show. It was designed to meet the features and size needs with an unmatched performance/price ratio.

Product Features

  • Light source: custom 1200W white LED engine (6000 K)
  • CRI: 70+ with selectable filter for CRI 88+
  • Output: 52,000 lm (in integrating sphere)
  • 160-millimeter diameter front lens, with high quality, tempered glass lenses
  • 5.8°-50.5° linear zoom
  • 16-bit CMY color mixing
  • Linear CTO
  • 6-color wheel (including high CRI filter)
  • 6 HD interchangeable rotating gobos
  • 7 HD interchangeable fixed gobos
  • All gobos can be swapped with each other
  • Go-Bright Technology: no light loss or color shift when gobos are inserted into the beam
  • Animation wheel
  • 4-facet rotating prism
  • 16-blade motorized iris
  • Framing system: 4 focal planes, +/- 60° rotation and macro channel control
  • Soft edge frost and flood frost
  • 24-bit digital dimmer with 4 user-selectable dimming curves
  • Digital stop-strobe effect
  • Control protocols: DMX, Art-Net, RDM, sACN
  • Personalities: single mode with 38 control channels
  • CloudIO Ready: fully compatible with CloudIO
  • Operating voltage: 100-240V, 50/60 Hz
  • Max Power consumption: 1650VA
  • 5 user-selectable fans speed modes
  • Weight: 44.7 kg (98.5 lbs)
  • Size (LxWxH): 510 x 312 x 800 mm (20.1 x 12.3 x 31.5 in)
  • Distance between two fixtures: 660 mm (26 in)

Specifications

POWER SUPPLIES

  • Operating Voltage: 100-240V, 50/60 Hz
  • Power Supply: Electronic auto range with active PFC

INPUT POWER

  • Max Power consumption: 1650VA

LIGHT SOURCE TYPE

  • 1200W White LED Engine
  • CRI: 70+ with selectable filter for CRI 88+
  • Colour Temperature: 6000K
  • LED life expectancy: 40000Hrs L70*
  • *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

  • Zoom range: 5.8°- 50.5°
  • 52000 Lumen Output (Integrating Sphere)
  • Front lens diameter: 160mm
  • High efficiency optical system

NOISE LEVEL

  • 1200W Auto fan mode: 47.3 dBA
  • 800W Auto fan mode: 44.1 dBA
  • 600W Auto fan mode : 41.6 dBA
  • Silent fan mode: 41.3 dBA
  • Theatre fan mode: 40.3 dBA

CONTROL and CONNECTIONS

  • Personalities: Single mode with 39 control channels
  • Control Protocol: DMX, Art-Net, RDM
  • DMX and RDM connectors: Locking 3 and 5 pin XLR IN/OUT
  • Ethernet port: RJ45 IN
  • Power connector: PowerCon True1
  • Built In Web Server

DYNAMIC EFFECTS

  • Colours: Linear CMY Color Mixing CMY, Linear CTO
  • Fixed color wheel with 6 dichroic colors including High CRI filter
  • Framing system: 4 blades with +/- 60° rotation of the full system. "Total Curtain" effect allowing the full blackout with each single blade
  • Built In macros

Gobos

  • 1 Rotating gobo wheel with 6 HD Indexable and replaceable gobos
  • 1 Static gobo wheel with 7 HD replaceable gobos
  • Ext diam.31.9mm
  • Image diam. 24mm
  • Thickness 1.1mm

Frost

  • Light frost 1° for soft diffusion
  • Heavy frost 5° for wash effect

Rotating Effects

  • Aluminum animation wheel with continuous rotation in both direction at variable speed
  • 4 Facets prism with rotation in both direction at variable speed

Iris

  • Motorized with variable pulse and random effects

Movement

  • Pan: 540° - 16bit
  • Tilt: 270° - 16bit
  • Automatic repositioning
  • Fast/Medium/Slow speed selectable by Function channel
  • Mechanical Pan/Tilt lock for safe transportation and maintenance

Beam

  • Motorized Zoom and Focus

Dimmer/Shutter

  • High resolution electronic Dimmer - 24 bit
  • High speed electronic Shutter and Strobe

HARDWARE and SOFTWARE

  • Long life self-charging battery
  • Display Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM
  • CloudIO compatibility

HOUSING

  • Aluminum and steel structure with plastic covers
  • Two side handles for transportation
  • IP20 protection rate

WORKING POSITION

  • Working in any position
  • Hanging system: with fast-lock omega clamps (1/4 turn) on the base
  • Optional safety chain

THERMAL SPECIFICATION

  • Max ambient temperature 45°C (113°F)
  • Min ambient temperature -20°C (-4°F)
  • Max temperature of the external surface 90°C (194°F)
  • Total heat dissipation: 5636 BTU/hr ±10% / 5940 kJ/hr ±10%

SAFETY SPECS

  • Minimum distance of illuminated objects 2.5 meters (8' 2")
  • Minimum distance from flammable materials 0.2 meters (8")
  • Fuse T25A - 250V
  • Thermally protected power supply (overheating and cooling failure)
  • Forced ventilation with axial fans

COMPLIANCE

  • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
  • 2014/30/EU - Electromagnetic Compatibility (EMC)
  • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
  • 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
  • cMETus Listed

PACKAGING

  • Carton box + Polystyrene
  • Carton box + Foam shell
  • Flight case + Foam shell (1 position)

WEIGHT - SIZE

  • 44.7 Kg (98.5 lbs)
  • 312x510mm (base dimension) - 800mm with vertical head(h) (20.1 x 12.3 x 31.5 in)
  • Distance between two fixtures 660 mm

POWER SUPPLIES

  • Operating Voltage: 100-240V, 50/60 Hz
  • Power Supply: Electronic auto range with active PFC

INPUT POWER

  • Max Power consumption: 1650VA

LIGHT SOURCE TYPE

  • 1200W White LED Engine
  • CRI: 70+ with selectable filter for CRI 88+
  • Colour Temperature: 6000K
  • LED life expectancy: 40000Hrs L70*
  • *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

  • Zoom range: 5.8°- 50.5°
  • 52000 Lumen Output (Integrating Sphere)
  • Front lens diameter: 160mm
  • High efficiency optical system

NOISE LEVEL

  • 1200W Auto fan mode: 47.3 dBA
  • 800W Auto fan mode: 44.1 dBA
  • 600W Auto fan mode : 41.6 dBA
  • Silent fan mode: 41.3 dBA
  • Theatre fan mode: 40.3 dBA

CONTROL and CONNECTIONS

  • Personalities: Single mode with 39 control channels
  • Control Protocol: DMX, Art-Net, RDM
  • DMX and RDM connectors: Locking 3 and 5 pin XLR IN/OUT
  • Ethernet port: RJ45 IN
  • Power connector: PowerCon True1
  • Built In Web Server

DYNAMIC EFFECTS

  • Colours: Linear CMY Color Mixing CMY, Linear CTO
  • Fixed color wheel with 6 dichroic colors including High CRI filter
  • Framing system: 4 blades with +/- 60° rotation of the full system. "Total Curtain" effect allowing the full blackout with each single blade
  • Built In macros

Gobos

  • 1 Rotating gobo wheel with 6 HD Indexable and replaceable gobos
  • 1 Static gobo wheel with 7 HD replaceable gobos
  • Ext diam.31.9mm
  • Image diam. 24mm
  • Thickness 1.1mm

Frost

  • Light frost 1° for soft diffusion
  • Heavy frost 5° for wash effect

Rotating Effects

  • Aluminum animation wheel with continuous rotation in both direction at variable speed
  • 4 Facets prism with rotation in both direction at variable speed

Iris

  • Motorized with variable pulse and random effects

Movement

  • Pan: 540° - 16bit
  • Tilt: 270° - 16bit
  • Automatic repositioning
  • Fast/Medium/Slow speed selectable by Function channel
  • Mechanical Pan/Tilt lock for safe transportation and maintenance

Beam

  • Motorized Zoom and Focus

Dimmer/Shutter

  • High resolution electronic Dimmer - 24 bit
  • High speed electronic Shutter and Strobe

HARDWARE and SOFTWARE

  • Long life self-charging battery
  • Display Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM
  • CloudIO compatibility

HOUSING

  • Aluminum and steel structure with plastic covers
  • Two side handles for transportation
  • IP20 protection rate

WORKING POSITION

  • Working in any position
  • Hanging system: with fast-lock omega clamps (1/4 turn) on the base
  • Optional safety chain

THERMAL SPECIFICATION

  • Max ambient temperature 45°C (113°F)
  • Min ambient temperature -20°C (-4°F)
  • Max temperature of the external surface 90°C (194°F)
  • Total heat dissipation: 5636 BTU/hr ±10% / 5940 kJ/hr ±10%

SAFETY SPECS

  • Minimum distance of illuminated objects 2.5 meters (8' 2")
  • Minimum distance from flammable materials 0.2 meters (8")
  • Fuse T25A - 250V
  • Thermally protected power supply (overheating and cooling failure)
  • Forced ventilation with axial fans

COMPLIANCE

  • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
  • 2014/30/EU - Electromagnetic Compatibility (EMC)
  • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
  • 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
  • cMETus Listed

PACKAGING

  • Carton box + Polystyrene
  • Carton box + Foam shell
  • Flight case + Foam shell (1 position)

WEIGHT - SIZE

  • 44.7 Kg (98.5 lbs)
  • 312x510mm (base dimension) - 800mm with vertical head(h) (20.1 x 12.3 x 31.5 in)
  • Distance between two fixtures 660 mm
