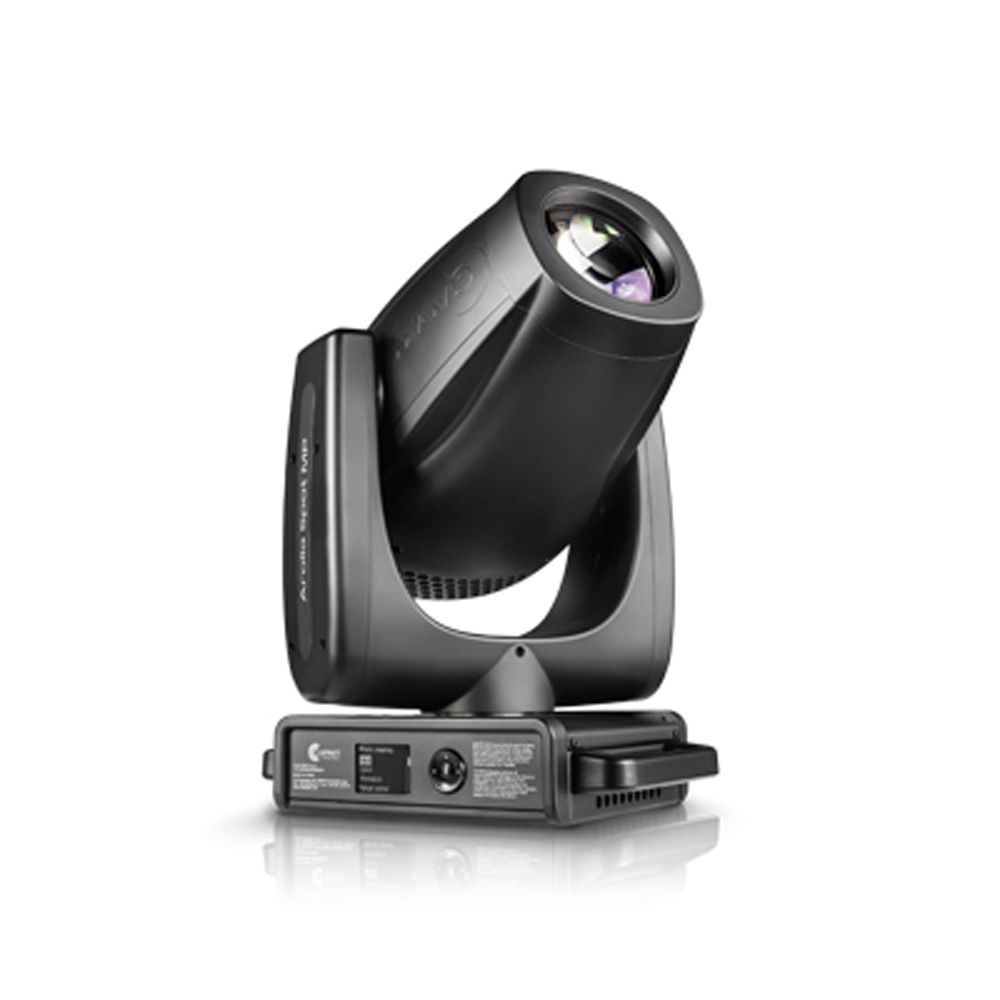

Clay Paky Arolla Spot MP - 470W LED Moving Head Profile with 6.2 to 48.8-Degree Zoom in Black Finish

Name: Clay Paky Arolla Spot MP - 470W LED Moving Head Profile with 6.2 to 48.8-Degree Zoom in Black Finish
Brand: Clay Paky
SKU: CL3012
Availability: InStock

Clay Paky Arolla Spot MP - 470W LED Moving Head Profile with 6.2 to 48.8-Degree Zoom in Black Finish

$0.00 USD

Sale Sold out

Product variants

Quantity

The AROLLA SPOT MP is the smallest and lightest moving head fixture available in its class. While small in stature, it delivers powerful light output with its 470-Watt white LED engine (at over 22,000 lumens output) and is full of the features you would expect in a much larger, more expensive luminaire.

The eSWAP technology is a unique feature of this series, that is the interchangeability of the gobo module from the spot version with the framing assembly of the profile model. These modules can be moved from their fixture to the other version and the fixture's electronics immediately recognizes and configures the fixture to operate with the module, so users do not have to make any changes themselves to the menu system.

Claypaky known for our industry-leading precision optics and color reproduction has given the AROLLA SPOT MP fixture an optical system with a 6 to 50 degree zoom range, a CMY color mixing system that produces deep, rich colors (including an unmatched deep red), a seven-color wheel that includes an 88+ CRI enhancement filter, and linear CTO to hit the color temperatures you need. The unit's source is a native 6000K that does not produce the metallic white that often limits the fixture's application and color temperature range. For eye-catching aesthetics, the AROLLA SPOT MP is fitted with a 120-millimeter diameter front lens giving the unit a unique look when viewed from the front.

For effects, the AROLLA SPOT MP comes with two rotating gobo wheels; each has seven rotating high-definition gobos. Thanks to our exclusive "Go-Bright" technology, there is no light loss or color shift when gobos are inserted into the beam. The unit also includes a rotating animation wheel and a four-facet rotating prism. For beam control the AROLLA SPOT MP offers a mechanical iris, a variable frost filter, a 24-bit digital dimmer with four user-selectable dimming curves that maintains color balance throughout the dimming range, and a fast-digital stop-strobe. Being universal voltage, the fixture operates on 100 to 240 volts AC and include five user-selectable fans speed modes: Auto - Sln - Theatre - RnR - Standard.

The AROLLA SPOT MP weighs less than 24 kilograms, or 50 pounds, making it one of the lightest moving head spot fixtures available, without giving up the output and features often found in a much larger and heavier fixtures.

The AROLLA SPOT MP fixtures' versatility allows it to fit comfortably and perform in tours, theatres, or fixed installations.

Product Features

Light source: custom 470W white LED engine (6000 K)
CRI: 70+ with selectable filter for CRI 88+
Output: 22,000 lm (in integrating sphere)
125-millimeter diameter front lens
6.2°-48.8° linear zoom
Linear CMY color mixing
Linear CTO
7-color wheel (including high CRI filter)
2 rotating gobo wheels, with 7 HD Indexable and replaceable gobos each
Go-Bright Technology: no light loss or color shift when gobos are inserted into the beam
Animation wheel
4-facet rotating prism
eSWAP technology: interchangeability of the gobo module from the spot version with the framing assembly of the profile model
16-blade motorized iris
Linear heavy frost 5° for wash effect
24-bit digital dimmer with 4 user-selectable dimming curves
Digital stop-strobe effect
Control protocols: DMX, Art-Net, RDM, sACN
Personalities: single mode with 29 control channels
CloudIO Ready: fully compatible with CloudIO
Operating voltage: 100-240V, 50/60 Hz
Max power consumption: 740VA
5 user-selectable fans speed modes
Weight: 24 kg (52.9 lbs)
Size (LxWxH): 250 x 360 x 593 mm (9.8 x 14.2 x 23.3 in)

Specifications

POWER SUPPLIES

Operating Voltage: 100-240V, 50/60 Hz
Power Supply: Electronic auto range with active PFC

INPUT POWER

Max Power consumption: 740VA

LIGHT SOURCE

470W White LED Engine
CRI: 70+ with selectable filter for typical CRI value up to 90
Colour Temperature: 6000K
LED life expectancy: 40000Hrs L70*
*It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

Zoom range: 6.2°- 48.8°
22054 Lumen Output (Integrating Sphere)
Front lens diameter: 120 mm
High efficiency optical system

NOISE LEVEL

Theatre fan mode: 40.6 dBA
SLN fan mode: 40.6 dBA
Standard fan mode: 46.8 dBA
Auto fan mode: 48.4 dBA
RNR fan mode: 48.7 dBA

CONTROL and CONNECTIONS

Personalities: Single mode with 37 control channels
Control Protocol: DMX, Art-Net, RDM, sACN
DMX and RDM connectors: Locking 5 pin XLR IN/OUT
Ethernet port: RJ45 IN
Power connector: PowerCon True 1
Built In Web Server

DYNAMIC EFFECTS

Colours: Linear CMY colour mixing, Linear CTO
Fixed color wheel with 7 dichroic colors including High CRI filter

Gobos

2 Rotating gobo wheels with 7 HD Indexable and replaceable gobos
Ext diam.22.9mm
Image diam. 17mm
Thickness 1.1mm
The Gobo module is interchangeable with the optional Framing version without any setting

Frost

Linear heavy frost 5° for wash effect

Rotating Effects

Aluminum animation wheel with continuous rotation in both direction at variable speed
4 Facets prism with rotation in both direction at variable speed

Iris

Motorized with variable pulse and random effects

Movement

Tilt: 270° - 16bit
Pan: 540° - 16bit
Accuracy: Resolution ± 0.17° (Range 0.34°)
Automatic repositioning
Fast/Medium/Slow speed selectable by Function channel
Mechanical Pan/Tilt lock for safe transportation and maintenance

Beam

Motorized Zoom and Focus

Dimmer/Shutter

High resolution electronic Dimmer - 24 bit
High speed electronic Shutter and Strobe

HARDWARE and SOFTWARE

Long life self-charging battery
Display Graphic LCD backlit b/w Display
Firmware upload from another fixture
Firmware Upgrade via Web Server
Diagnostic
DMX monitoring
Remote access through RDM
CloudIO compatibility

HOUSING

Aluminum and steel structure with plastic covers
Two side handles for transportation
IP20 protection rate

WORKING POSITION

Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base pn 183102/805
Optional safety chain

THERMAL SPECIFICATION

Max ambient temperature 45°C (113°F)
Min ambient temperature -20°C (-4°F)
Max temperature of the external surface 90°C (194°F)
Total heat dissipation: 2527 BTU/hr ±10% / 2664 kJ/hr ±10%

SAFETY SPECS

Minimum distance of illuminated objects 2.5 meters (8' 2")
Minimum distance from flammable materials 0.2 meters (8")
Fuse T10A - 250V
Thermally protected power supply (overheating and cooling failure)
Forced ventilation with axial fans

COMPLIANCE

2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU - Electromagnetic Compatibility (EMC)
2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
cMETus Listed

PACKAGING

Carton box + Polystyrene
Carton box + Foam shell
Flight case + Foam shell (4 positions)

WEIGHT - SIZE

23.7 Kg (52.2 lbs)
250x360mm (base dimension) - 593mm with vertical head (h)
Distance between two fixtures 480mm
