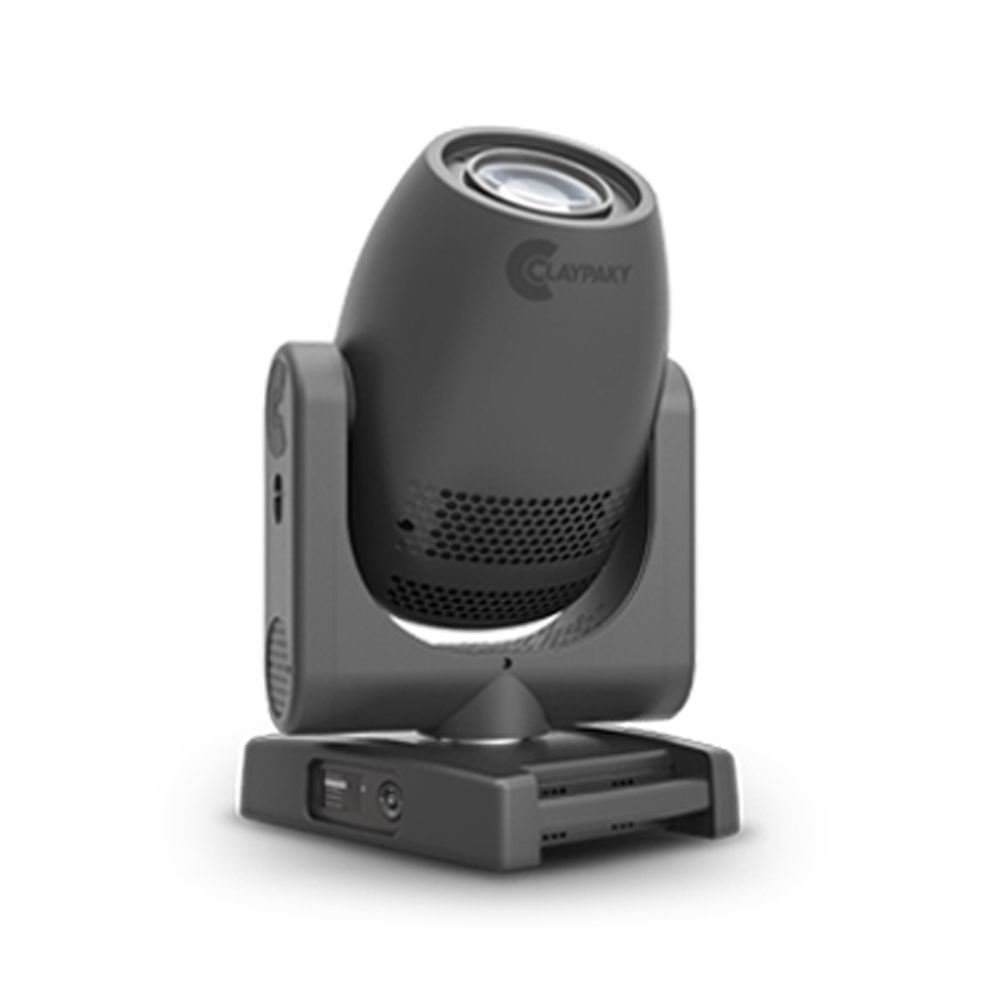

Clay Paky Axcor Profile 400 HC - 300W LED Moving Head Profile with 5 to 43-Degree Zoom in Black Finish

Name: Clay Paky Axcor Profile 400 HC - 300W LED Moving Head Profile with 5 to 43-Degree Zoom in Black Finish
Brand: Clay Paky
SKU: C61768
Availability: InStock

Clay Paky Axcor Profile 400 HC - 300W LED Moving Head Profile with 5 to 43-Degree Zoom in Black Finish

$0.00 USD

Sale Sold out

Product variants

Quantity

The Axcor Profile 400 enhances the medium-low power category with sophisticated professional functions. It has an extraordinarily compact body (65 cm / 251/2 inches high) packed with all the most advanced lighting, mechanical and electronic features. These include a professional framing system, an animation wheel, a CMY + linear CTO system, and a high precision mechanical iris.

Its light source is a 300W white LED module designed specifically for this unit. The Axcor Profile 400 comes in a 9,800 lm, 6500 K, CRI=70 model, or alternatively a 6,700 lm, 5600 K CRI=90 model.

It is extremely quiet, and has three operating modes, which can be chosen according to needs: Silent, Standard and Auto.

Product Features

Source: 300W White LED Module
Versions available: CRI: at least 70, CT 6500K (Axcor Profile 400), CRI: at least 90, CT 5600K (Axcor Profile 400 HC)
Ã˜ 120mm front lens
5°-43° linear Zoom
CMY + Linear CTO
One Color Wheel with 6 Colors
One Rotating Gobo Wheel with 7 Gobos
Rotating 4-facet prism
Animation wheel
Motorized framing system with 4 focal planes
Framing system indexable over 90 degrees
Mechanical Iris
Variable Frost filter
16-bit Electronic Dimmer with 4 curves
Electronic strobe @25 f/sec.
Three different fan ventilation modes (STD - AUTO - SLN)
Weight: about 27 Kg (59.5 lbs)

Specifications

Power Supplies

Operating Voltage: 100-240V, 50/60 Hz
Power Supply: Electronic auto range with active PFC

Input Power

Max Power consumption: 500VA

Light Source

300W White LED Engine
CRI: at least 70, CT 6500K (Axcor Profile 400)
CRI: at least 90, CT 5600K (Axcor Profile 400 HC)
LED life expectancy: 20000Hrs L70*
*It may vary depending on various factors, as type of use and environment

Photometric Data

Zoom range: 5.3°- 43.3°
9800 Lumen Output (Axcor Profile 400)
6700 Lumen Output (Axcor Profile 400 HC)
Front lens diameter: 120mm
High efficiency optical system

Noise Level

Theatre/Silent Fan mode: 40.5dBA
Auto Fan mode: 46.5 dBA
Constant Fan mode: 48.5 dBA

Control and Connections

Personalities: Single mode with 36 control channels
Control Protocol: DMX, Art-Net, RDM, sACN
DMX and RDM connectors: Locking 5 pin XLR IN/THRU
Ethernet port: RJ45 IN
Power connector: PowerCon True1 IN/OUT
Built In Web Server

Colors

Linear CMY color mixing
Linear CTO
Fixed color wheel with 6 dichroic colors

Framing system

4 blades with +/- 90° rotation of the full system
Total Curtain effect allowing the full blackout with each single blade
Built In macros

Gobos

1 Rotating gobo wheel with 7 HD Indexable and replaceable gobos
Ext. diam. 22.9mm
Image diam. 17.5mm
Thickness 1mm

Variable Frost

0-100% linear

Rotating Effects

Aluminum animation wheel with continuous rotation in both direction at variable speed
4 Facets prism with rotation in both direction at variable speed

Iris

Motorized with variable pulse and random effects

Movement

Tilt: 270° - 16bit
Pan: 540° - 16bit
Automatic repositioning
Fast/Medium/Slow speed selectable by Function channel
Mechanical Pan/Tilt lock for safe transportation and maintenance

Beam

Motorized Zoom and Focus

Dimmer/Shutter

High resolution electronic Dimmer - 24 bit, 4 curves
High speed electronic Shutter and Strobe

Hardware and Software

Long life self-charging battery
Display Graphic LCD backlit b/w Display
Firmware upload from another fixture
Firmware Upgrade via Web Server
Diagnostic
DMX monitoring
Remote access through RDM
CloudIO compatibility

Housing

Aluminum and steel structure with plastic covers
Two side handles for transportation
IP20 protection rate

Working Position

Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base
Optional safety chain

Thermal Specifications

Max ambient temperature 40°C (104°F)
Min ambient temperature -20°C (4°F)
Max temperature of the external surface 90°C (194°F)
Total heat dissipation: 1708 BTU/hr ±10% / 1800 kJ/hr ±10%

Safety Specifications

Minimum distance of illuminated objects 3 meters (9' 10")
Minimum distance from flammable materials 0.2 meters (8")
Fuse T6.3A - 250V
Thermally protected power supply (overheating and cooling failure)
Forced ventilation with axial fans

Compliance

2014/35/EU Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU Electromagnetic Compatibility (EMC)
2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
2009/125/EC EcoDesign requirements for Energy-related Products (ErP)
UKCA: conforms to UK legislation
cMETus Listed

Packaging

Carton box + Polystyrene
Carton box + Foam shell
Flight case + Foam shell (2 positions)

Weight and Size

27 Kg (59.5 lbs)
276x350mm (base dimension) - 531mm with vertical head (h)
Distance between two fixtures 500mm
