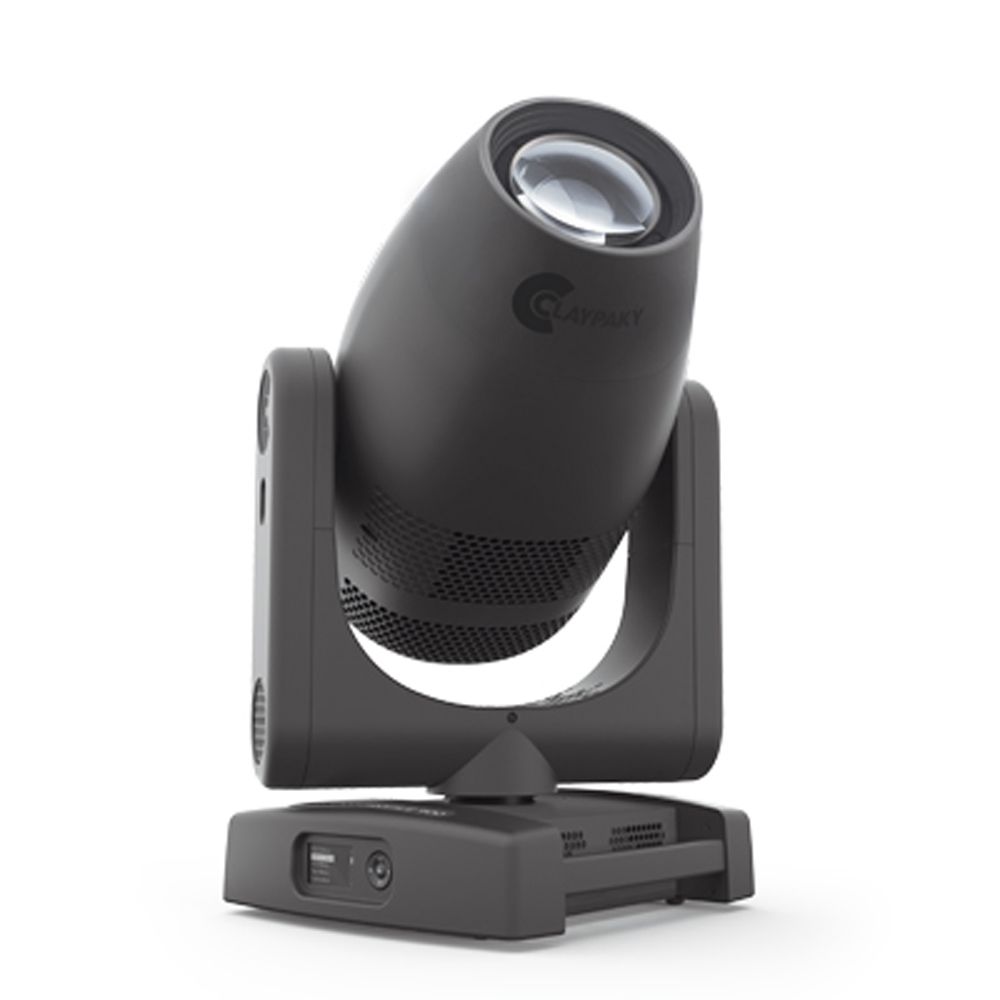

Clay Paky Axcor Profile 600 HC-ST - 500W LED Moving Head Profile with 5.3 to 47.2-Degree Zoom in Black Finish

In the crowded world of medium-high power lights, the AXCOR PROFILE 600 stands out for its excellent combination of high performance, exceptional light quality, and versatility of use.

It fits a 500 W white LED engine, available in two versions: with high output 6500K color temperature, or - alternatively - with 5600K color temperature and a CRI of around 90.

The luminous efficiency is among the highest in this power category, and - if necessary - it can be further increased by about 25% thanks to "boost mode" (available on the standard version and on the HC version), making AXCOR PROFILE 600 a perfect tool for tours and large events.

A wide zoom range from 5.3° to 47.2° (1:9 ratio) means the light can be used in a variety of situations, including those for which a narrow angle is best.

The completeness of its color section, its great wealth of visual effects, its framing system implemented with technological devices that enhance its precision and versatility, the possibility of using it as a wash light, make the Axcor Profile 600 an essential benchmark for all modern entertainment uses.

The AXCOR PROFILE 600 TEATRO is a special version of the Axcor Profile 600 ST that features an updated cooling system and mechanisms to significantly reduce the unit's acoustical footprint. Available in two different CRI versions, this fixture is ideal for applications where noise is a concern in venues such as theatres, television studios, opera houses, conference halls, and more.

Product Features

• Source: 500W White LED Engine
• Versions available: CRI: at least 70, CT 6500K (Axcor Profile 600 and ST), CRI: at least 90, CT 5600K (Axcor Profile 600 HC and HC-ST)
• Ø 132mm front lens
• 5.3°- 47.2° linear Zoom
• CMY + Linear CTO
• One Color Wheel with 5 Colors
• One Rotating Gobo Wheel with 7 Gobos
• Rotating 4-facet prism
• Animation wheel (interchangeable with fixed gobo wheel)
• Motorized framing system with 4 focal planes
• Framing system indexable over 90 degrees
• Variable Frost filter
• Iris with multiple macros (random, pulsing€¦)
• Electronic linear dimmer, 16 bit and 4 curves
• Electronic strobe @25 f/sec.
• Weight: 33 Kg (72.7 lbs)

Specifications

Power Supplies

• Operating Voltage: 100-240V, 50/60 Hz
• Power Supply: Electronic auto range with active PFC

Input Power

• Max Power consumption: 800VA

Light Source Type

• 500W White LED Engine
• CRI: 70+, CT 6500K (600 / 600ST / 600Teatro)
• CRI: 90+, CT 5600K (600HC / 600HC-ST / 600HC Teatro)
• LED life expectancy: 40000Hrs L70*
• *It may vary depending on various factors, as type of use and environment

Photometric Data

• Zoom range: 5.3°- 47.2°
• Front lens diameter: 132mm
• High efficiency optical system
• Lumen Output: 11,500 lm

Noise Level

• Standard Mode; LED @ 500W: 45.0 dBA
• Standard Mode; LED @ 400W: 41.5 dBA

Control and Connections

• Personalities: 2 modes with 40/44 control channels
• Control Protocol: DMX, Art-Net, RDM, sACN
• DMX and RDM connectors: Locking 3 and 5 pin XLR IN/THRU
• Ethernet port: RJ45 IN
• Power connector: PowerCon True1 IN/OUT
• Built In Web Server

Colors

• Linear CMY color mixing
• Linear CTO
• Fixed color wheel with 5 dichroic colors

Framing system

• 4 blades that move separately with +/- 90° rotation of the full system
• Motorized framing system with 4 focal planes
• Smooth, flexible blade movements at variable speed
• A "total curtain" effect made separately by each of the 4 blades, in many - shapes and colors. / Small and large dynamic profiles.

Gobos

• 1 Rotating gobo wheel with 7 HD Indexable and replaceable gobos
• Ext diam. 25.9mm
• Image diam. 20mm
• Thickness 1.0mm

Frost

• Variable "soft edge" frost 0-100% linear

Rotating Effects

• Aluminum animation wheel with continuous rotation in both direction at variable speed
• 4 Facets prism with rotation in both direction at variable speed

Iris

• Motorized with variable pulse and random effects

Movement

• Tilt: 268° - 16bit
• Pan: 540° - 16bit
• Accuracy: Resolution ± 0.23° (Range 0.46°)
• Automatic repositioning
• Fast/Normal speed selectable by Function channel
• Mechanical Pan/Tilt lock for safe transportation and maintenance

Beam

• Motorized Zoom and Focus

Dimmer/Shutter

• High resolution electronic Dimmer - 24 bit, 4 curves
• High speed electronic Shutter and Strobe

Hardware and Software

• Long life self-charging battery
• Display Graphic LCD backlit b/w Display
• Firmware upload from another fixture
• Firmware Upgrade via Web Server
• Diagnostic
• DMX monitoring
• Remote access through RDM
• CloudIO compatibility

Housing

• Aluminum and steel structure with plastic covers
• Two side handles for transportation
• IP20 protection rate

Working Position

• Working in any position
• Hanging system: with fast-lock omega clamps (1/4 turn) on the base pn 183102/805
• Optional safety chain

Thermal Specifications

• Max ambient temperature 40°C (104°F)
• Min ambient temperature -10°C (14°F)
• Max temperature of the external surface 90°C (194°F)
• Total heat dissipation: 2390 BTU/hr ±10% / 2520 kJ/hr ±10%

Safety

• Minimum distance of illuminated objects 3 meters (9' 10")
• Minimum distance from flammable materials 0.2 meters (8")
• Thermally protected power supply (overheating and cooling failure)
• Forced ventilation with axial fans

Compliance

• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU - Electromagnetic Compatibility (EMC)
• 011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
• UKCA: conforms to UK Regulations
• cETLus Listed

Packaging

• Carton box + Polystyrene
• Carton box + Foam shell
• Flight case + Foam shell (2 position)

Weight and Size

• 33 Kg (72.7 lbs)
• 329x388mm (base dimension) - 785mm with vertical head (h)
• Distance between two fixtures 700mm
