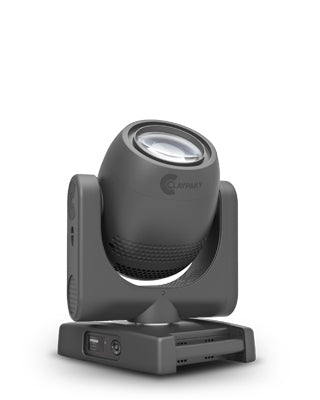

Clay Paky Axcor Spot 300 - 180W LED Moving Head Spot with 8 to 40-Degree Zoom in Black Finish
Clay Paky Axcor Spot 300 - 180W LED Moving Head Spot with 8 to 40-Degree Zoom in Black Finish
Couldn't load pickup availability
The new Axcor 300 family of moving LED fixtures brings Claypaky's no-compromise quality and performance to the broad mid-market. The quality of their effects, their construction, and their high light output derive from the high-end products Claypaky specializes in.
The AXCOR SPOT 300 has 17 gobos on 2 wheels, including 7 high quality dichroic rotating gobos. Weighing just 20 Kg and measuring a little over 500 mm, this unit incorporates features that are not often found in models of this size, like a rotating prism, a motorised iris, a soft edge filter, a 16-bit dimmer, and a 8-40° zoom.
It boasts cutting- edge electronic and software technology, with all the features that enable optimal fixture management and maintenance over time.With a price-point, physical size and power consumption that disguise its strength and creative potential, the Axcor Spot 300 enables a new world of expression in touring, events, TV, theatre and installed lighting markets.
Product Features
- Source: 180W White LED engine (7000 K)
- 8°-40° linear zoom
- Motorised focus lens
- CMY System
- One color wheel with 7 colors (including 1 CTO filter)
- One wheel with 7 rotating gobos
- One wheel with 10 fixed gobos
- Rotating 4-facet prism
- Mechanical Iris
- Frost filter
- 16-bit Electronic Dimmer with 4 curves
- Electronic strobe@24 f/sec
- Extremely compact and lightweight
Specifications
Power Supplies
- AC power input Neutrik PowerCON
- 100-240V, 50/60 Hz
Input Power
- 340 VA @230Vac - 50Hz
- Total Lumen output: 7000 lumens
Light Source
- 180W White LED engine (7000 K)
Optics
- 8°-40° linear zoom
- Motorised focus lens
Color System
- CMY System
- One color wheel with 7 colors (including 1 CTO filter)
Effects Section
- One wheel with 7 rotating gobos
- One wheel with 10 fixed gobos
- Rotating 4-facet prism
- Mechanical Iris
- Frost filter
Control and Programming
- 23 DMX 512 control channels
- Control signal USITT DMX 512
- Protocols RDM, WebServer
- Display Graphic LCD backlit b/w Display
- Display battery self-charging buffer battery
- 16-bit Electronic Dimmer with 4 curves
- Electronic strobe@24 f/sec
- Pan/Tilt Resolution 16 bit
- Dimmer Resolution 16 bit
- DMX signal connection 5 pole XLR input and output
Body
- Aluminum and steel structure with plastic covers
- Two side handles for transportation
- Device locking PAN and TILT mechanisms for transportation and maintenance
Moving Body
- PAN range 540°
- TILT range 270°
Electronics
- Long life self-charging buffer battery
- Function reset from the lighting desk
- AUTOTEST function from menu
- Electronic monitoring with status error
- Cooling system monitoring
- DMX level monitoring on all channels
- Internal data transmission diagnostics
- Firmware Upgrade via Web Server
- Firmware upload from another fixture
- Protocols/Functions: RDM, Web Server
Safety Devices
- Minimum distance of illuminated objects 3 meters (9' 10")
- Minimum distance from flammable materials 0.2 meters (8")
- Max ambient temperature 40°C (104°F)
- Max temperature of the external surface 90°C (194°F)
- Forced ventilation with axial fans
Working Position
- Working in any position
- Hanging system: with fast-lock omega clamps (1/4 turn) on the base
CE Marking
- 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
- 2014/30/EU - Electromagnetic Compatibility (EMC)
- 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
- 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
Weight and Dimensions
- 20.2 Kg (44.53 lbs)
- Dimensions: (LxWxH): 13.78" x 10.86" x 21.77"
Power Supplies
- AC power input Neutrik PowerCON
- 100-240V, 50/60 Hz
Input Power
- 340 VA @230Vac - 50Hz
- Total Lumen output: 7000 lumens
Light Source
- 180W White LED engine (7000 K)
Optics
- 8°-40° linear zoom
- Motorised focus lens
Color System
- CMY System
- One color wheel with 7 colors (including 1 CTO filter)
Effects Section
- One wheel with 7 rotating gobos
- One wheel with 10 fixed gobos
- Rotating 4-facet prism
- Mechanical Iris
- Frost filter
Control and Programming
- 23 DMX 512 control channels
- Control signal USITT DMX 512
- Protocols RDM, WebServer
- Display Graphic LCD backlit b/w Display
- Display battery self-charging buffer battery
- 16-bit Electronic Dimmer with 4 curves
- Electronic strobe@24 f/sec
- Pan/Tilt Resolution 16 bit
- Dimmer Resolution 16 bit
- DMX signal connection 5 pole XLR input and output
Body
- Aluminum and steel structure with plastic covers
- Two side handles for transportation
- Device locking PAN and TILT mechanisms for transportation and maintenance
Moving Body
- PAN range 540°
- TILT range 270°
Electronics
- Long life self-charging buffer battery
- Function reset from the lighting desk
- AUTOTEST function from menu
- Electronic monitoring with status error
- Cooling system monitoring
- DMX level monitoring on all channels
- Internal data transmission diagnostics
- Firmware Upgrade via Web Server
- Firmware upload from another fixture
- Protocols/Functions: RDM, Web Server
Safety Devices
- Minimum distance of illuminated objects 3 meters (9' 10")
- Minimum distance from flammable materials 0.2 meters (8")
- Max ambient temperature 40°C (104°F)
- Max temperature of the external surface 90°C (194°F)
- Forced ventilation with axial fans
Working Position
- Working in any position
- Hanging system: with fast-lock omega clamps (1/4 turn) on the base
CE Marking
- 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
- 2014/30/EU - Electromagnetic Compatibility (EMC)
- 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
- 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
Weight and Dimensions
- 20.2 Kg (44.53 lbs)
- Dimensions: (LxWxH): 13.78" x 10.86" x 21.77"
