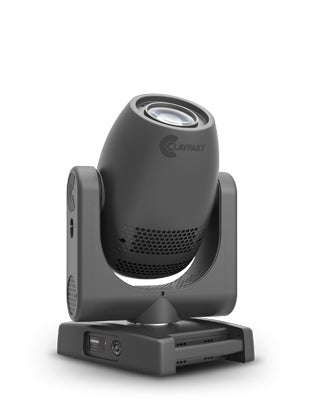

Clay Paky Axcor Wash 300 - 180W LED Moving Head Wash with 5.5 to 42-Degree Zoom in Black Finish
Clay Paky Axcor Wash 300 - 180W LED Moving Head Wash with 5.5 to 42-Degree Zoom in Black Finish
Couldn't load pickup availability
The new Axcor 300 family of moving LED fixtures brings Claypaky's no-compromise quality and performance to the broad mid-market. The quality of their effects, their construction, and their high light output derive from the high-end products Claypaky specializes in.
The AXCOR WASH 300 has a 140mm front PC lens and linear 5.5°-42° zoom. Producing colors is its speciality: it is fitted with all the components youneed to produce any shade of color you desire, with a light diffusion uniformity comparable to higher-end models.
It boasts cutting-edge electronic and software technology, with all the features that enable optimal fixture management and maintenance over time.With a price-point, physical size and power consumption that disguise its strength and creative potential, the Axcor Wash 300 enables a new world of expression in touring, events, TV, theatre and installed lighting markets.
Product Features
- Source: 180W White LED engine (7000 K)
- Ø 140mm PC front lens
- 5.5°-42° Linear Zoom
- CMY system on wheels
- One color wheel with 9 colors (including 1 CTO filter)
- Rotating Ovaliser beam
- 16-bit Electronic Dimmer with 4 curves
- Electronic strobe@24 f/sec
- Extremely compact and lightweight
Specifications
Power Supplies
- AC power input Neutrik PowerCON
- 100-240V, 50/60 Hz
Input Power
- 290 VA @230Vac - 50Hz
Light Source
- 180W White LED engine (7000 K)
Optics
- Ø 140mm PC front lens
- 5.5°-42° Linear Zoom
Color System
- CMY system on wheels
- One color wheel with 9 colors (including 1 CTO filter)
Effects Section
- Rotating Beam shaper
- Strobe 24 flash/sec, electronic, instant open and blackout
- Dimmer 16 bit electronic and linear; 4 dimmer curves
- Electronic Zoom
Control and Programming
- 16 DMX 512 control channels
- DMX 512 - Art-Net
- Control signal USITT DMX 512
- Protocols RDM, WebServer
- Display Graphic LCD backlit b/w Display
- Display battery Long life self-charging buffer battery
- Pan/Tilt Resolution 16 bit
- Dimmer Resolution 16 bit
- DMX signal connection 5 pole XLR input and output
- Ethernet input
Body
- Aluminum and steel structure with plastic covers
- Two side handles for transportation
- Device locking PAN and TILT mechanisms for transportation and maintenance
Moving Body
- PAN range 540°
- TILT range 270°
Electronics
- Long life self-charging buffer battery
- Function reset from the lighting desk
- AUTOTEST function from menu
- Electronic monitoring with status error
- Cooling system monitoring
- DMX level monitoring on all channels
- Internal data transmission diagnostics
- Firmware Upgrade via Web Server
- Firmware upload from another fixture
- Protocols/Functions: RDM, Web Server
Safety Devices
- Minimum distance of illuminated objects 3 meters (9' 10")
- Minimum distance from flammable materials 0.2 meters (8")
- Max ambient temperature 40°C (104°F)
- Max temperature of the external surface 90°C (194°F)
- T5A fuse
- Automatic break in power supply in case of overheating
- Forced ventilation with axial fans
Working Position
- Working in any position
- Hanging system: with fast-lock omega clamps (1/4 turn) on the base
CE Marking
- 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
- 2014/30/EU - Electromagnetic Compatibility (EMC)
- 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
- 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
Weight and Dimensions
- 19.9 Kg (43.87 lbs)
- 13.78" x 10.86" x 25.16"
