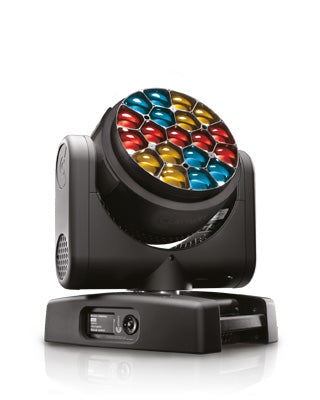

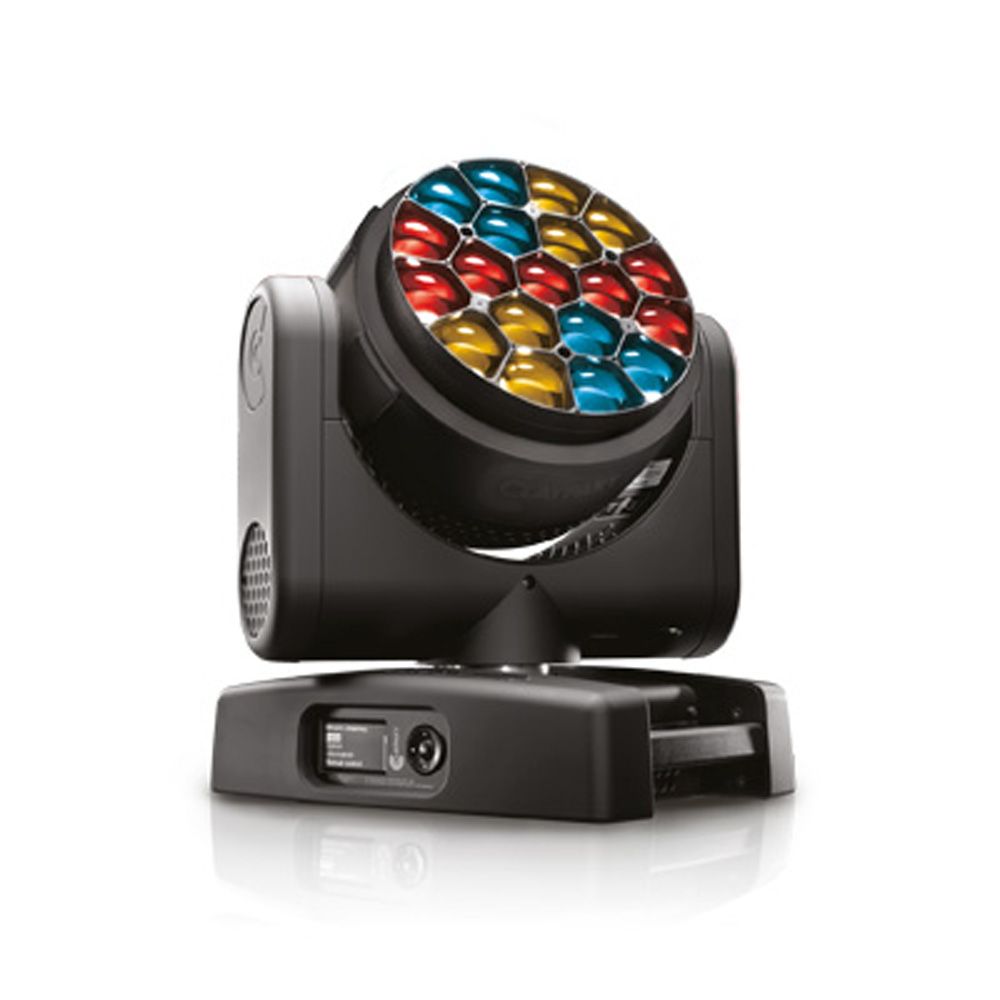

Clay Paky HY B-Eye K15 - 19 x 40W RGBW LED Moving Head Wash with 4 to 60-Degree Zoom in Black Finish

The B-EYE has revolutionized the way we think of LED show lighting. Its innovative optical unit enhances the uniformity and efficiency of the light output. The rotating front lens and the possibility to control each single LED individually have made spectacular kaleidoscopic projections and charming eye candy effects possible. A sophisticated effect engine has made it easier to routinely use macro effects, which would otherwise be difficult to program. These technological innovations make the B-EYE a versatile product: it is a high-performance LED wash light, a perfect beam light, and a spectacular visual effect projector all in one. It has won several awards and been copied by countless manufacturers over the years.

Today Claypaky offers HY B-EYE, that is TWICE MORE POWERFUL and bright than B-EYE. It even offers more VERSATILITY and more INTERACTIVITY with the media servers (Kling-Net protocol included), it is very SILENT while featuring the same size and same control mode as the B-EYE.

Product Features

• Source Type: 19 x RGBW LED Osram OSTAR - Stage II LE RTDUW S2WN (6000 K)
• LED Nominal Wattage: 40W
• Versatile, three operating modes: wash, beam, FX effect
• 4°-60° Zoom range and even light spread
• Individual LED control for each parameter
• Invisible front grid
• Beam edge softening control (in wash mode)
• Exclusive parallel beam consisting of an array of individually controllable micro-beams
• Enhanced electronic engine for dynamic beam pattern design, with digital accuracy and repeatability
• Art-Net / RDM
• Arkaos Kling-Net protocol already included in the firmware
• Rotating front lens for countless vortex effects, for aerial or "kaleidoscopic" projection use
• White CT Emulation 2500-8000K
• RGB auto-tuning to lamp CT Emulation
• Tungsten Lamp Emulation
• Weight: about 21 Kg (46.3 lbs)

Specifications

Power Supplies

• 100-240V 50/60Hz

Input Power

• 600 VA at 230V 50Hz

Light Source

• 19 RGBW LEDs driven at 40 Watt
• - Type: OSRAM OSTAR - Stage II LE RTDUW S2WN
• - Color Temperature: 6,000 K
• - Life: 50,000 hrs

Optics

• 4°-60° Electronic Zoom Range

Effects Section

• Three operating modes: wash, beam, FX (Kaleido effects)
• Bi-directional Rotating Front Lens
• Digital Wash-Beam Framing effect
• Beam edge softening control (in Wash mode)
• Pixel Patterning Macros with enhanced control
• 0-100% linear electronic dimmer
• Adjustable speed stop/strobe effect, with instantaneous blackout
• Dedicated channel for color temperature setting
• White CT Emulation 2500-8000K
• RGBW auto-tuning to lamp CT Emulation
• Tungsten Lamp Emulation
• Slow Strobe: 1 flash/sec; Fast Strobe: 25 flash/sec

Control and Programming

• DMX protocol signal: USITT DMX 512
• Art-Net / RDM
• Arkaos Kling-Net protocol already included in the firmware
• Display: Graphic LCD backlit b/w Display
• Pan/Tilt Resolution: 16 bit
• Dimmer Resolution: 16 bit
• Movement control: vectorial
• DMX signal connection: 3 and 5 pole XLR input and output
• Software upload through DMX input

Body

• Aluminium structure with die-cast plastic cover
• Two side handles for transportation
• PAN and TILT lock for transport and maintenance

Moving Body

• Movement by means of two stepper motors, controlled by microprocessor
• Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit
• Travel:
• - PAN = 540°
• - TILT = 210°

Electronics

• Long-life auto-charging buffer battery
• Preset color and graphic effect macros
• Function reset controllable from a central control unit
• Menu-driven internal self-test function
• Ethernet ready with RJ45 socket
• Display: backlit black-and-white graphic LCD display
• Electronic check-up of every single parameter with error alarm
• DMX level monitoring on each channel
• Automatic internal data transmission error diagnostics
• Firmware upgrade even when the unit is not connected to the power supply
• Firmware transfer from one light to another

Safety Devices

• Automatic power safety derating in case of overheat of the LED board
• Forced ventilation

Working Position

• Working in any position
• Hanging system: with fast-lock omega clamps (1/4 turn) on the base

CE Marking

• In conformity with the European Directives:
• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
