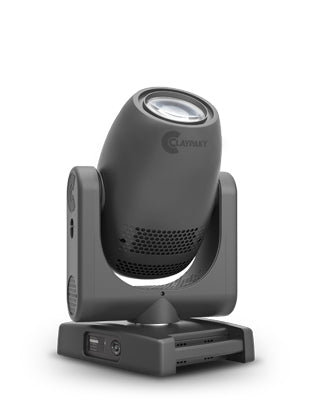

Clay Paky K-Eye K20 HCR - 37 X RGBACL LED Moving Head Wash with 7 to 53-Degree Zoom in Black Finish

K-EYE HCR is an LEDwash light which provides total control over the quality of all forms of white or colored light. The new HCR technology used in the K-EYE is an exclusive electronic platform developed by Claypaky in conjunction with Osram to meet the needs of lighting designers all over the world who were not fully satisfied with the performance of LED devices in comparison with traditional lamps, in particular because of their incomplete color range, poor color rendering index and lack of consistency. All these limitations have been overcome in the K-EYE HCR, and it is finally possible to produce every color, every nuance and every shade with satisfactory quality. The heart of the K-EYE HCR wash light is a LED light source consisting of a module with six colors: besides the three "classic" basic red, green and blue colors, Claypaky has added amber, cyan and lime. This exclusive Claypaky device provides a very wide color range with excellent color spectrum coverage.

Product Features

• Advanced LED moving head wash light
• Light sources: 37 LED modules
• 6-color LED module: RGB + Amber + Cyan + Lime
• Rated LED module average lifetime: 50,000 h
• CRI > 97 (up to 99)
• 2500K-8000K color temperature correction
• Control of the colors: RAW mode, HSL mode, RGB mode, CMY mode.
• Dedicated color macro channel
• Software algorithm by Osram
• 7°- 53° linear zoom
• Electronic linear dimmer, 16 bit
• Optional frame for external gels and frost filters
• Optional top hat
• Protocols/Functions: RDM, Web Server and ArtNet
• Totally flicker free
• Very silent: 38.5 dB(A)

Specifications

Power Supplies

• 100/240V 50/60 Hz

Input Power

• 750 VA

Light Source

• Light sources: 6-color LED modules
• LED module: R+G+B+Amber+Cyan+Lime
• Number of LEDS: 37
• LED life expectancy: min. 50,000h
• Total lumen output: 11,000 lumen
• Typical lumen manteinance: 70%@50,000 hours
• Typical CRI value > 97 up to 99

Optics

• Optics featuring 6-color LED module system + rod-bar mixing system + front lens
• 7°- 53° linear electronic Zoom

Color System

• Color system: R+G+B+Cyan+Amber+Lime LED module
• Color Temperature control: Linear from 2500K to 8000K (CTO controlled mode plus RAGCB correction)
• Control of the colors: RAW mode, HSL mode, RGB mode, CMY mode
• RAW mode Enable specific control of each color
• HSL mode function is based on algorithm. HSL parameters: HUE, HUE fine, Saturation, Crossfade, Path, Tint
• RGB mode The projectors works in the same way as a classical RGB fixture
• CMY mode The projectors works in the same way as a classical CMY fixture
• Halo Emulation 750W, 1000W, 1200W, 2000W, 2500W lamp emulation
• Gamma Wave: Different chromatic curves for each color
• Macro: Dedicated color macro channel with 80 preselected colors

Effects Section

• Electronic and linear dimmer, 16 bit
• Strobe 24 flash/sec. Electronic, instant open and blackout. Variable speed pulsation

Control and Programming

• 19-32 DMX 512 control channels
• Control signal: USITT DMX 512
• Protocols: RDM, WebServer and Art-Net
• Display: Graphic LCD backlit b/w display
• Display battery: Long life self-charging buffer battery
• Pan/Tilt Resolution 16 bit
• Dimmer Resolution 16 bit
• Movement control: vectorial
• DMX signal connection: 3 and 5 pole XLR input and output
• Firmware update: Software upload through DMX input

Body

• Structure in aluminium with die-cast plastic cover
• Handles Two side handles for transportation
• Device locking PAN and TILT mechanisms for transportation
• Optional frame for external gels and frost filters
• Optional top hat (adjustable with the Zoom movement)

Moving Body

• PAN range: 540°
• Resolution: PAN = 2.11° - PAN FINE = 0.008°
• TILT range: 210°
• Resolution: TILT = 0.960° - TILT FINE = 0.004°

Electronics

• Long-life auto-charging buffer battery
• Preset color macros
• Function reset controllable from a central control unit
• Menu-driven internal self-test function
• Electronic check-up of every single parameter with error alarm
• DMX level monitoring on each channel
• Automatic internal data transmission error diagnostics
• Firmware upgrade with no power
• Firmware transfer from one light to another

Safety Devices

• Minimum distance of illuminated objects: 0.2 meters (8")
• Minimum distance from flammable materials: 0.2 meters (8")
• Max ambient temperature: 40°C (104°F)
• Max temperature of the external surface: 90°C (194°F)
• Bipolar circuit breaker with thermal protection
• Automatic break in power supply in case of overheating
• Forced ventilation withaxial fans

Working Position

• Working position: Any
• Hanging system: 2xfast-lock omega clamps (1/4 turn) on the base
• Optional 48-51mm, max300Kg clamps; Ø 4mm, lenght680mm safety cable

CE Marking

• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)

Weight

• 22.5 Kg (49.6 lbs)
