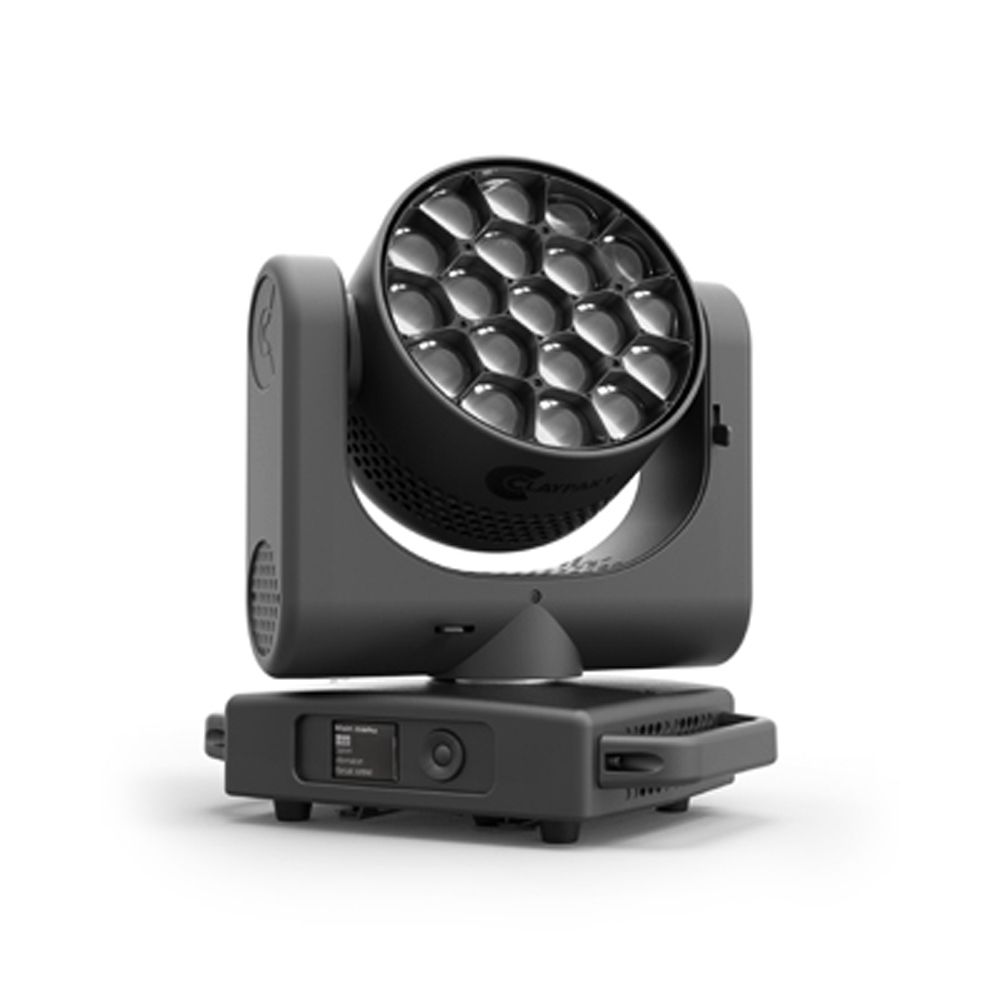

Clay Paky Midi-B - 19 x 40W RGBWW LED Moving Head Wash with 4 to 50-Degree Zoom in Black Finish

Clay Paky Midi-B - 19 x 40W RGBWW LED Moving Head Wash with 4 to 50-Degree Zoom in Black Finish

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out

Fixtures in this class are in high demand because they meet many needs, from the smallest venue to the largest show. With so many choices available, this category of fixture lends to highly competitive prices but also lowest common-denominator performance. This makes it difficult for customers to decide which fixture to choose without sacrificing performance. Claypaky's MIDI-B clearly addresses these needs thanks to its amazing cost/performance ratio. The MIDI-B is a new LED-based moving head luminaire with 19 Osram 40-Watt RGBW LEDs, the same ones used in the popular HY B-EYE and MINI-B fixtures. Its zoom range of 4° to 50° allows for a wide variety of applications. At the narrowest angle, the beam produced is ultra-dense and concentrated, ideal for aerial effects. At its widest zoom, the MIDI-B turns into an exceptional, uniform wash light and can replace much heavier and bulkier fixtures. The 19 LEDs are arranged in three independently controllable rings, which can be used for bright back lighting effects. Colour macros, 2500K to 8000K colour temperature control range, 16-bit dimmer with four curves, 25 flashes per second electronic strobe, Ethernet access complete the MIDI-B's features.

Product Features

  • Light source: 19 x 40W RGBW (or RGBWW) Osram Ostar LEDs
  • Compact and lightweight
  • Extremely efficient light output (11,400 lm)
  • Optimized HD optical system
  • Special coating around the lens and minimum space between lens and body to light spillage
  • 4° to 50° zoom range, zoom repositioning with DMX off
  • 5-curve, 24-bit dimmer with output color balance
  • Three independently controllable LED rings
  • Pre-installed effects/color macros
  • Two models available: - MIDI-B: 7000K, 2500K-8000K linear CTO - MIDI-B WW: 3200K, 6500K-2500K linear CTB
  • Crossfade channels between color and CTO, and between macros
  • Electronic strobe @25 f/s
  • Extreme precision and silence on movements
  • Ethernet access
  • 4 operating modes: Constant - Auto - Silent - Theatre
  • Control signal: USITT DMX 512. Protocols: RDM, WebServer, Art-Net and sACN
  • DMX Channels: 17/21/25/37
  • CloudIO Ready: fully compatible with CloudIO
  • Max power consumption: 830VA
  • Weight: 17 kg (37.5 lbs)
  • Size (LxWxH): 390 x 252 x 471 mm (15.35 x 9.9 x 18.5 in)

Specifications

POWER SUPPLIES

  • Operating Voltage: 100-240V, 50/60 Hz
  • Power Supply: Electronic auto range with active PFC

INPUT POWER

  • Max Power consumption: 830VA

LIGHT SOURCE TYPE

  • MIDI-B: 19x Osram 40W RGBW LEDs.
  • MIDI-B WW: 19x Osram 40W RGB+WW LEDs.
  • 1900 lumen each LED
  • LED life expectancy: 50000Hrs ( 20000Hrs L70* )
  • *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

  • Zoom range: 4°- 50°
  • 11400 Lumen Output (Integrating Sphere)
  • High efficiency optical system

NOISE LEVEL

  • Theatre Fan mode: 34.5 dBA
  • SLN Fan Mode: 35.2dBA
  • Auto Fan Mode: 39.2 dBA
  • Constant Fan mode: 41.2 dBA

CONTROL and CONNECTIONS

  • Personalities: 4 modes with 17/21/25/37 control channels
  • Control Protocol: DMX, Art-Net, RDM, sACN
  • DMX and RDM connectors: Locking 5 pin XLR IN/OUT
  • Ethernet port: RJ45 IN
  • Power connector: PowerCon True1 IN
  • Built In Web Server

DYNAMIC EFFECTS

  • Colors MIDI-B: Linear RGBW, Linear CTO (2500K to 8000K color temperature control)
  • Colors MIDI-B WW: RGB+WW colour mixing 16bit, Linear CTB, 6500K to 2500K
  • Preset Macro colors
  • Three independently controlled LED rings

Movement

  • Tilt: 270° - 16bit
  • Pan: 540° - 16bit
  • Automatic repositioning
  • Fast/Standard speed selectable by Function channel
  • Mechanical Pan/Tilt lock for safe transportation and maintenance

Beam

  • Motorized Zoom
  • Automatic repositioning when DMX is disconnected

Dimmer/Shutter

  • High resolution electronic Dimmer - 24 bit (5 curves)
  • High speed electronic Strobe

HARDWARE and SOFTWARE

  • Long life self-charging battery
  • Display Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM
  • CloudIO compatibility

HOUSING

  • Aluminum and steel structure with plastic covers
  • Two side handles for transportation
  • IP20 protection rate

WORKING POSITION

  • Working in any position
  • Hanging system: with fast-lock omega clamps (1/4 turn) on the base pn 183102/805
  • Optional safety chain

THERMAL SPECIFICATION

  • Max ambient temperature 45°C (113°F)
  • Min ambient temperature -20°C (-4°F)
  • Max temperature of the external surface 90°C (194°F)
  • Total heat dissipation: 2596 BTU/hr ±10% / 2736 kJ/hr ±10%

SAFETY SPECS

  • Minimum distance of illuminated objects 0.2 meters (8")
  • Minimum distance from flammable materials 0.2 meters (8")
  • Fuse T10A - 250V
  • Thermally protected power supply (overheating and cooling failure)
  • Forced ventilation with axial fans

COMPLIANCE

  • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
  • 2014/30/EU - Electromagnetic Compatibility (EMC)
  • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
  • 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
  • cMETus Listed

PACKAGING

  • Carton box + Polystyrene
  • Carton box + Foam shell
  • Flight case + Foam shell (4 positions)

WEIGHT - SIZE

  • 17 Kg (37.5 lbs)
  • 252x390mm (base dimension) - 471mm with vertical head (h)
  • Distance between two fixtures 500mm

POWER SUPPLIES

  • Operating Voltage: 100-240V, 50/60 Hz
  • Power Supply: Electronic auto range with active PFC

INPUT POWER

  • Max Power consumption: 830VA

LIGHT SOURCE TYPE

  • MIDI-B: 19x Osram 40W RGBW LEDs.
  • MIDI-B WW: 19x Osram 40W RGB+WW LEDs.
  • 1900 lumen each LED
  • LED life expectancy: 50000Hrs ( 20000Hrs L70* )
  • *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

  • Zoom range: 4°- 50°
  • 11400 Lumen Output (Integrating Sphere)
  • High efficiency optical system

NOISE LEVEL

  • Theatre Fan mode: 34.5 dBA
  • SLN Fan Mode: 35.2dBA
  • Auto Fan Mode: 39.2 dBA
  • Constant Fan mode: 41.2 dBA

CONTROL and CONNECTIONS

  • Personalities: 4 modes with 17/21/25/37 control channels
  • Control Protocol: DMX, Art-Net, RDM, sACN
  • DMX and RDM connectors: Locking 5 pin XLR IN/OUT
  • Ethernet port: RJ45 IN
  • Power connector: PowerCon True1 IN
  • Built In Web Server

DYNAMIC EFFECTS

  • Colors MIDI-B: Linear RGBW, Linear CTO (2500K to 8000K color temperature control)
  • Colors MIDI-B WW: RGB+WW colour mixing 16bit, Linear CTB, 6500K to 2500K
  • Preset Macro colors
  • Three independently controlled LED rings

Movement

  • Tilt: 270° - 16bit
  • Pan: 540° - 16bit
  • Automatic repositioning
  • Fast/Standard speed selectable by Function channel
  • Mechanical Pan/Tilt lock for safe transportation and maintenance

Beam

  • Motorized Zoom
  • Automatic repositioning when DMX is disconnected

Dimmer/Shutter

  • High resolution electronic Dimmer - 24 bit (5 curves)
  • High speed electronic Strobe

HARDWARE and SOFTWARE

  • Long life self-charging battery
  • Display Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM
  • CloudIO compatibility

HOUSING

  • Aluminum and steel structure with plastic covers
  • Two side handles for transportation
  • IP20 protection rate

WORKING POSITION

  • Working in any position
  • Hanging system: with fast-lock omega clamps (1/4 turn) on the base pn 183102/805
  • Optional safety chain

THERMAL SPECIFICATION

  • Max ambient temperature 45°C (113°F)
  • Min ambient temperature -20°C (-4°F)
  • Max temperature of the external surface 90°C (194°F)
  • Total heat dissipation: 2596 BTU/hr ±10% / 2736 kJ/hr ±10%

SAFETY SPECS

  • Minimum distance of illuminated objects 0.2 meters (8")
  • Minimum distance from flammable materials 0.2 meters (8")
  • Fuse T10A - 250V
  • Thermally protected power supply (overheating and cooling failure)
  • Forced ventilation with axial fans

COMPLIANCE

  • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
  • 2014/30/EU - Electromagnetic Compatibility (EMC)
  • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
  • 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
  • cMETus Listed

PACKAGING

  • Carton box + Polystyrene
  • Carton box + Foam shell
  • Flight case + Foam shell (4 positions)

WEIGHT - SIZE

  • 17 Kg (37.5 lbs)
  • 252x390mm (base dimension) - 471mm with vertical head (h)
  • Distance between two fixtures 500mm
