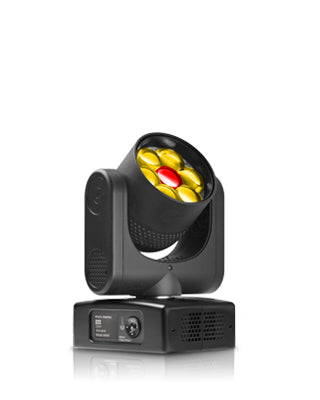

Clay Paky Mini-B - 7 x 40W RGBW LED Moving Head Wash with 4 to 55-Degree Zoom in Black Finish

Mini-B is the smallest LED moving light ever made by Claypaky for the professional market. Although it weighs just 7 Kg and measures only 34 cm, Mini-B features the most advanced, modern optical and electronic technology. The light source is based on 40 Watt Osram RGBW LEDs, the same ones fitted in the new Claypaky HY B-EYE.

Mini-B features a wide zoom, ranging from 4° to 55° that makes this little luminaire extremely versatile. At the narrow angle, the beam produced is very solid and concentrated, superb for aerial effects. At full aperture, the Mini-B becomes an excellent wash light and it can replace much heavier and bulkier equipment, on stages, in TV studios, at multi-purpose venues and at clubs.

The Mini-B's central LED may be controlled separately from the external ring of LEDs, making it ideal for graphic lighting effects too. More than fifty pre-installed effects/color macros, 2500K-8000K color temperature control, a 24 bit dimmer with five curves, an electronic strobe @ 25 f/sec, and Ethernet access complete this highly professional tool.

Product Features

• Light source: 7 x 40W RGBW (or RGBWW) Osram Ostar LEDs
• Extremely compact and lightweight
• Highly efficient light output (3,420 lm), very low power consumption
• Very high-speed pan and tilt movements
• Motorized 4° to 55° zoom range, zoom repositioning with DMX off
• 5-curve, 24-bit dimmer with output color balance
• Independent control of the central LED
• Pre-installed effects/color macros
• Two models available: - MINI-B: 7000K, 2500K-8000K linear CTO - MINI-B WW: 3200K, 6500K-2500K linear CTB
• Crossfade channels between color and CTO, and between macros
• Electronic strobe @ 25 f/sec
• Ethernet access
• 4 Operating modes: Constant - Auto - Silent - Theatre
• Control signal: USITT DMX 512. Protocols: RDM, WebServer, Art-Net and sACN
• DMX Channels: 16/20/28
• CloudIO Ready: fully compatible with CloudIO
• Operating voltage: 100-240V, 50/60 Hz - In/Out Max 6(2) fixtures @ 200-240Vac (@ 100-120Vac)
• Weight: 6.5 kg (14.3 lbs)
• Size (LxWxH): 224 x 186 x 340 mm (8.8 x 7.3 x 13.4 in)

Specifications

Power Supplies

• Operating Voltage: 100-240V, 50/60 Hz - In/Out Max 6(2) fixtures @ 200-240Vac (@ 100-120Vac)
• Power Supply: Electronic auto range with active PFC

Input Power

• Max Power consumption: 375VA

Light Source Type

• MINI-B: 7x Osram 40W RGBW LEDs
• MINI-B WW: 7x Osram 40W RGB+WW LEDs
• LED life expectancy: 50000Hrs (20000 L70*)
• *It may vary depending on various factors, as type of use and environment

Photometric Data

• Zoom range: 4°- 55°
• 3420 Lumen Output
• Front lens assembly diameter: 140mm
• High efficiency optical system

Noise Level

• Constant fan mode: 45.9 dBA
• AUTO fan mode: 43.2 dBA
• Theatre fan mode: 40.2 dBA
• SLN fan mode: 35.7 dBA

Control and Connections

• Personalities: three modes with 16/20/28 control channels
• Control Protocol: DMX, Art-Net, RDM, sACN
• DMX and RDM connectors: Locking 5 pin XLR IN/THRU
• Ethernet port: RJ45 IN
• Power connector: PowerCon True1 IN/OUT
• Built-in Web Server

Dynamic Effects

• Colors MINI-B: RGB+W color mixing, 16bit, Linear CTO 2500K to 8000K, 16bit, Preset macro colors
• Colors MINI-B WW: RGB+WW color mixing, 16bit, Linear CTB, 6500K to 2500K, Preset macro colors
• Tilt: 260° - 16bit
• Pan: 540° - 16bit
• Automatic repositioning
• Fast/Normal speed selectable by Function channel
• Motorized Zoom
• High resolution electronic Dimmer - 24 bit, 5 curves
• High speed electronic Strobe

Hardware and Software

• Long life self-charging battery
• Display Graphic LCD backlit b/w Display
• Firmware upload from another fixture
• Firmware Upgrade via Web Server
• Diagnostic
• DMX monitoring
• Remote access through RDM
• CloudIO compatibility

Housing

• Aluminum and steel structure with plastic covers
• Two optional side handles for transportation
• IP20 protection rate

Working Position

• Working in any position
• Hanging system: with fast-lock omega clamp (1/4 turn) on the base
• Optional safety chain

Thermal Specification

• Max ambient temperature 40°C (104°F)
• Min ambient temperature -20°C (-4°F)
• Max temperature of the external surface 90°C (194°F)
• Total heat dissipation: 956.5 BTU/hr ±10% / 1008 kJ/hr ±10%

Safety Specifications

• Minimum distance of illuminated objects 0.2 meters (8")
• Minimum distance from flammable materials 0.2 meters (8")
• Fuse T6.3A - 250V
• Thermally protected power supply (overheating and cooling failure)
• Forced ventilation with axial fans

Compliance

• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
• cMETus Listed

Packaging

• Carton box + Polystyrene
• Carton box + Foam shell
• Flight case + Foam shell (8 position)

Weight and Size

• 6.5 Kg (14.5 lbs)
• 186x220mm (base dimension) - 346mm with vertical head (h)
• Distance between two fixtures 340mm
