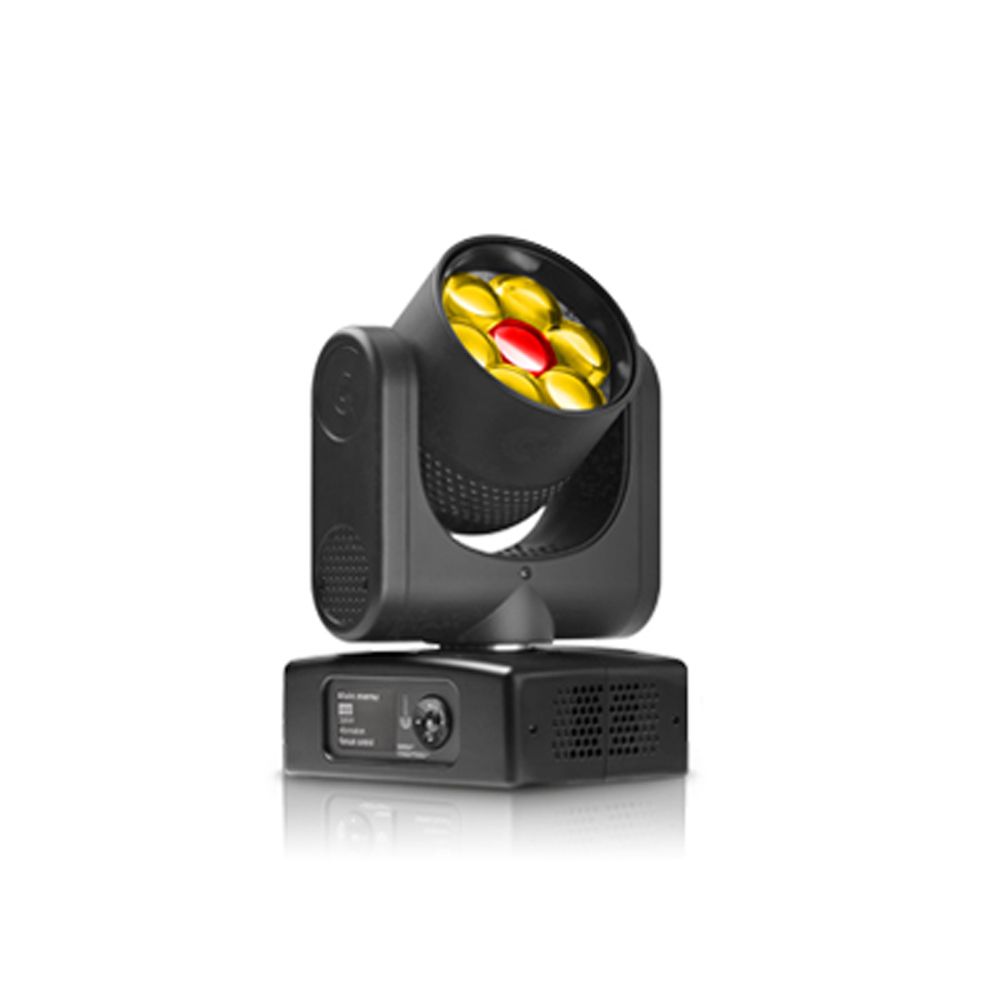

Clay Paky Mini-B - 7 x 40W RGBWW LED Moving Head Wash with 4 to 55-Degree Zoom in Black Finish

Name: Clay Paky Mini-B - 7 x 40W RGBWW LED Moving Head Wash with 4 to 55-Degree Zoom in Black Finish
Brand: Clay Paky
SKU: CL3020
Availability: InStock

Clay Paky Mini-B - 7 x 40W RGBWW LED Moving Head Wash with 4 to 55-Degree Zoom in Black Finish

$0.00 USD

Sale Sold out

Product variants

Quantity

Mini-B is the smallest LED moving light ever made by Claypaky for the professional market. Although it weighs just 7 Kg and measures only 34 cm, Mini-B features the most advanced, modern optical and electronic technology. The light source is based on 40 Watt Osram RGBW LEDs, the same ones fitted in the new Claypaky HY B-EYE.

Mini-B features a wide zoom, ranging from 4° to 55° that makes this little luminaire extremely versatile. At the narrow angle, the beam produced is very solid and concentrated, superb for aerial effects. At full aperture, the Mini-B becomes an excellent wash light and it can replace much heavier and bulkier equipment, on stages, in TV studios, at multi-purpose venues and at clubs.

Following the success of the Mini-B Series, Claypaky has added lights equipped with Warm White RGB LEDs to its range. The power is the same as the original models but they have a natural colour temperature of 3200K. MINI-B WWs are bright, lightweight and compact, and are just right when warm colour tones and the possibility of enhancing the complexion of the artists on stage are crucial factors in the lighting designer's choice of units.

Product Features

Light source: 7 x 40W RGBW (or RGBWW) Osram Ostar LEDs
Extremely compact and lightweight
Highly efficient light output (3,420 lm), very low power consumption
Very high-speed pan and tilt movements
Motorized 4° to 55° zoom range, zoom repositioning with DMX off
5-curve, 24-bit dimmer with output color balance
Independent control of the central LED
Pre-installed effects/color macros
Two models available: - MINI-B: 7000K, 2500K-8000K linear CTO - MINI-B WW: 3200K, 6500K-2500K linear CTB
Crossfade channels between color and CTO, and between macros
Electronic strobe @ 25 f/sec
Ethernet access
4 Operating modes: Constant - Auto - Silent - Theatre
Control signal: USITT DMX 512. Protocols: RDM, WebServer, Art-Net and sACN
DMX Channels: 16/20/28
CloudIO Ready: fully compatible with CloudIO
Operating voltage: 100-240V, 50/60 Hz - In/Out Max 6(2) fixtures @ 200-240Vac (@ 100-120Vac)
Weight: 6.5 kg (14.3 lbs)
Size (LxWxH): 224 x 186 x 340 mm (8.8 x 7.3 x 13.4 in)

Specifications

Power Supplies

Operating Voltage: 100-240V, 50/60 Hz - In/Out Max 6(2) fixtures @ 200-240Vac (@ 100-120Vac)
Power Supply: Electronic auto range with active PFC

Input Power

Max Power consumption: 375VA

Light Source Type

MINI-B: 7x Osram 40W RGBW LEDs
MINI-B WW: 7x Osram 40W RGB+WW LEDs
LED life expectancy: 50000Hrs (20000 L70*)
*It may vary depending on various factors, as type of use and environment

Photometric Data

Zoom range: 4°- 55°
3420 Lumen Output
Front lens assembly diameter: 140mm
High efficiency optical system

Noise Level

Constant fan mode: 45.9 dBA
AUTO fan mode: 43.2 dBA
Theatre fan mode: 40.2 dBA
SLN fan mode: 35.7 dBA

Control and Connections

Personalities: three modes with 16/20/28 control channels
Control Protocol: DMX, Art-Net, RDM, sACN
DMX and RDM connectors: Locking 5 pin XLR IN/THRU
Ethernet port: RJ45 IN
Power connector: PowerCon True1 IN/OUT
Built-in Web Server

Dynamic Effects

Colors MINI-B: RGB+W color mixing, 16bit, Linear CTO 2500K to 8000K, 16bit, Preset macro colors
Colors MINI-B WW: RGB+WW color mixing, 16bit, Linear CTB, 6500K to 2500K, Preset macro colors
Tilt: 260° - 16bit
Pan: 540° - 16bit
Automatic repositioning
Fast/Normal speed selectable by Function channel
Motorized Zoom
High resolution electronic Dimmer - 24 bit, 5 curves
High speed electronic Strobe

Hardware and Software

Long life self-charging battery
Display Graphic LCD backlit b/w Display
Firmware upload from another fixture
Firmware Upgrade via Web Server
Diagnostic
DMX monitoring
Remote access through RDM
CloudIO compatibility

Housing

Aluminum and steel structure with plastic covers
Two optional side handles for transportation
IP20 protection rate

Working Position

Working in any position
Hanging system: with fast-lock omega clamp (1/4 turn) on the base
Optional safety chain

Thermal Specification

Max ambient temperature 40°C (104°F)
Min ambient temperature -20°C (-4°F)
Max temperature of the external surface 90°C (194°F)
Total heat dissipation: 956.5 BTU/hr ±10% / 1008 kJ/hr ±10%

Safety Specifications

Minimum distance of illuminated objects 0.2 meters (8")
Minimum distance from flammable materials 0.2 meters (8")
Fuse T6.3A - 250V
Thermally protected power supply (overheating and cooling failure)
Forced ventilation with axial fans

Compliance

2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU - Electromagnetic Compatibility (EMC)
2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
cMETus Listed

Packaging

Carton box + Polystyrene
Carton box + Foam shell
Flight case + Foam shell (8 position)

Weight and Size

6.5 Kg (14.5 lbs)
186x220mm (base dimension) - 346mm with vertical head (h)
Distance between two fixtures 340mm
