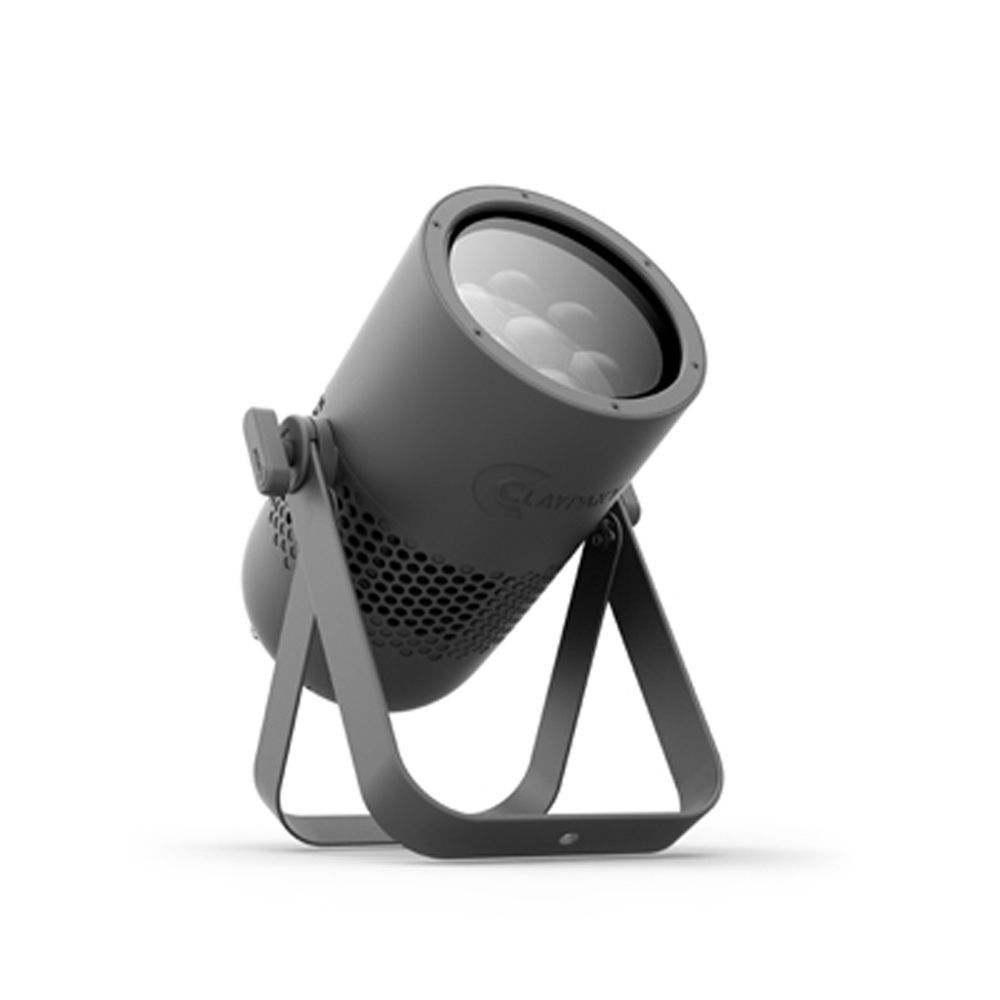

Clay Paky Mini-B ParLED Aqua WW - 7 x 40W RGBWW LED IP66-Rated Par with 4 to 53-Degree Zoom in Black Finish

Name: Clay Paky Mini-B ParLED Aqua WW - 7 x 40W RGBWW LED IP66-Rated Par with 4 to 53-Degree Zoom in Black Finish
Brand: Clay Paky
SKU: CL2017
Availability: InStock

Clay Paky Mini-B ParLED Aqua WW - 7 x 40W RGBWW LED IP66-Rated Par with 4 to 53-Degree Zoom in Black Finish

$0.00 USD

Sale Sold out

Product variants

Quantity

With the increasing demand for weather-resistant fixtures for entertainment and architecture applications, Claypaky's MINI-B PARLED AQUA fits the needs for size, output, and features. With its seven Osram 40W RGBW LED engine, this little fixture makes it one of the brightest available.

MINI-B PARLED AQUA is a static version of the recently introduced MINI-B that is IP66 rated. This fixture has the same optical and electronic features as the MINI-B: a motorized 4° to 53° zoom, independent control of the central LED for effects, 2500K to 8000K colour temperature control, 16-bit dimmer with four different dimming curves, 25 flashes per second electronic strobe and Ethernet access.

This fixture is compact and lightweight and very complimentary to the MINI-B and MIDI-B fixtures in optical performance and colour consistency.

Following the success of the Mini-B Series, Claypaky has added models equipped with Warm White RGB LEDs to its range. The power is the same as the original models but they have a natural colour temperature of 3200K. Mini-B Parled Aqua WWs are bright, lightweight and compact, and are just right when warm colour tones and the possibility of enhancing the complexion of the artists on stage are crucial factors in the lighting designer's choice of units.

Product Features

Static IP66-rated LED fixture, ideal for events and outdoor installations
Light source: 7 x RGBW Osram LEDs
LED power rating: 40 W
Compact and lightweight
Highly efficient light output, very low power consumption
Motorized 4° to 53° zoom range
Independent control of the central LED
Pre-installed effects/colour macros
2500K - 8000K colour temperature control
24-bit dimmer with 5 curves
Electronic strobe @25 f/s
Ethernet access
Control Protocol: DMX, Art-Net, RDM, sACN
Split yoke for hanging or floor mount
Weight: 7.4 kg (16.3 lbs)
281mm x 345mm x 367mm (with brackets)

Specifications

Power Supplies

Operating Voltage: 100-240V, 50/60 Hz - In/Out Max 9(4) fixtures @ 200-240Vac (@ 100-120Vac)
Power Supply: Electronic auto range with active PFC

Input Power

Max Power consumption: 300VA

Light Source Type

MINI-B PARLED AQUA: 7x Osram 40W RGBW LEDs
MINI-B PARLED AQUA WW: 7x Osram 40W RGB+WW LEDs
LED life expectancy: 50000hrs (20000Hrs L70*)
*It may vary depending on various factors, as type of use and environment

Photometric Data

Zoom range: 4°- 53°
3400 Lumen Output (Integrating Sphere)
Front lens diameter: 160mm
High efficiency optical system

Noise Level

SLN mode: 36.4 dBA
Auto mode: 44.5 dBA
Constant mode: 47.9 dBA

Control and Connections

Personalities: Four different operating modes, 12/16 or 24 DMX control parameters
Control Protocol: DMX, Art-Net, RDM, sACN
DMX and RDM connectors: Locking 5 pin XLR IN/THRU
Ethernet port: RJ45 IN
Power connector: PowerCon True1 IN/OUT
Built-in Web Server

Colors (MINI-B PARLED AQUA)

RGBW colour mixing 16bit
Linear CTO, 2500K to 8000K
Preset macro colors

Colors (MINI-B PARLED AQUA WW)

RGB+WW colour mixing 16bit
Linear CTB, 6500K to 2500K
Preset macro colors

Beam

Motorized Zoom

Dimmer/Strobe

High resolution electronic Dimmer - 24 bit
High speed electronic Strobe

Hardware and Software

Display Graphic LCD backlit b/w Display
Firmware upload from another fixture
Firmware Upgrade via Web Server
Diagnostic
DMX monitoring
Remote access through RDM
CloudIO compatibility

Housing

Aluminum and steel structure
Two built in brackets designed to stand on the floor
IP66 protection rate
IK08 impact energy

Working Position

Working in any position
Hanging system: built in brackets
Optional safety chain

Thermal

Max ambient temperature 45°C (113°F)
Min ambient temperature -20°C (-4°F)
Max temperature of the external surface 90°C (194°F)
Total heat dissipation: 957 BTU/hr ±10% / 1008 kJ/hr ±10%

Safety

Minimum distance of illuminated objects 0.2 meters (8")
Minimum distance from flammable materials 0.2 meters (8")
Thermally protected power supply (overheating and cooling failure)
Forced ventilation with axial fans

Compliance

2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU - Electromagnetic Compatibility (EMC)
2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
cMETus Listed

Packaging

Carton box + Polystyrene
Flight case + Foam shell (8 positions)

Weight and Size

7.4 Kg (16.3 lbs)
281mm x 345mm x 367mm
Distance between two fixtures 400mm
