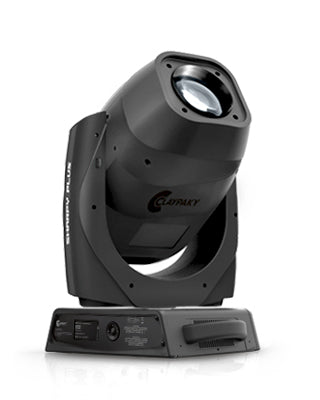

Clay Paky Sharpy Plus Aqua - 330W Discharge Moving Head Spot/Beam Hybrid in Black Finish and IP66-Rated Housing

Designed in the spirit of the award-winning Sharpy Plus platform, the SHARPY PLUS AQUA luminaire is an IP66-rated moving head fixture perfect for outdoor events, touring, permanent installations, cruise ships, and much more. This new fixture maintains the same performance features of its predecessor, the Sharpy Plus luminaire, in a new weather-resistant package; giving you greater flexibility in a single luminaire.

When designing a weather-resistant moving light, performance and features are often sacrificed. Not with the SHARPY PLUS AQUA luminaire. Claypaky addressed and enhanced the design of the SHARPY PLUS AQUA in critical areas to make sure this fixture maintains the brightness, efficiency, and performance you need and expect.

The cooling system was redesigned and optimized specifically for this new outdoor configuration for the Osram Sirius HRI 330W X8 lamp currently used in the Sharpy Plus fixture. This lamp is a proven performer in its reliability, output, and being consistent in both brightness and colour temperature.

Just like the Sharpy Plus, the SHARPY PLUS AQUA fixture offers two distinct operating modes - beam or spot. The 3° to 36° zoom covers the entire zoom range linearly with a beam that is always perfectly sharp and uniform in either mode. The SHARPY PLUS AQUA offers the same complement of prisms, rotating and static gobos, colour wheels, CMY colour mixing, and more. So, if you need to use both the Sharpy Plus and SHARPY PLUS AQUA on a production, you can be assured of a consistent look and performance from these fixtures.

The SHARPY PLUS AQUA is also an appealing unit when you consider the value. At a price point every rental company will appreciate, you can take home a light with truly excellent performance, which you can use in a wide range of environments and entertainment venues, whether your requirements are for a beam or spot fixture, for indoor or outdoor applications.

Product Features

• Moving head fixture for outdoors (IP66 protection rating)
• Source: Osram Sirius HRI 330W X8 arc lamp
• Two projection modes: Beam and Spot
• 3°- 36° linear zoom in both modes
• CMY colour mixing | 15 colours on 3 wheels | 2 CTO filters
• Rotating Gobo Wheel: 8 glass gobos
• Static Gobo Wheel: 18 static gobos (including 6 beam reducers)
• Rotating 4-facet prism on dedicated channel
• Rotating 8-facet prism on dedicated channel
• Animation Wheel
• Linear, soft edge frost filter
• Dimmer and stop/strobe

Specifications

Power Supplies

• Operating Voltage: 100-240V, 50/60 Hz
• Power Supply: Electronic auto range with active PFC

Input Power

• Max Power consumption: 560VA

Light Source Type

• 330W X8 HRI Sirius Osram Arc Lamp
• Colour Temperature: 8000K ±300
• Lamp average lifetime: 1500 hrs
• *It may vary depending on various factors, as type of use and environment

Photometric Data

• Zoom range: 3°- 36°
• 12000 Lumen Output
• Front lens diameter: 135mm
• High efficiency optical system

Noise Level

• Lamp Off - Dimmer @ 0%: 43.0 dBA
• Lamp On - Dimmer @ 100%: 54.5 dBA

Control and Connections

• Personalities: Single mode with 31 control channels
• Integrated Wireless DMX system as standard (Wireless Solution)
• Control Protocol: DMX, Art-Net, RDM, sACN.
• DMX and RDM connectors: Locking 5 pin XLR IN/OUT
• Ethernet port: RJ45 IN
• Power connector: Power Con True1 IN
• Built-in Web Server

Colors

• Linear CMY colour mixing
• 15 colors on 3 wheels (2 CTO filters)

Gobos

• 1 Static gobo wheel with 18 gobos, 6 beam reducers (down to 0.5°)
• 1 Rotating gobo wheel with 8 HD Indexable and replaceable gobos
• Ext diam.15.9mm
• Image diam. 12mm
• Thickness 1.1mm

Frost

• Linear soft edge frost filter

Rotating Effects

• Aluminum animation wheel with continuous rotation in both direction at variable speed
• 4 Facets prism with rotation in both direction at variable speed
• 8 Facets prism with rotation in both direction at variable speed

Movement

• Tilt: 270° - 16bit
• Pan: 540° - 16bit
• Accuracy: Resolution ± 0,28° (Range 0,56°)
• Automatic repositioning
• Fast/Standard speed selectable by Function channel
• Mechanical Pan/Tilt lock for safe transportation and maintenance

Beam

• Motorized Zoom and Focus

Dimmer/Shutter

• High resolution Dimmer - 16 bit
• High speed electronic Shutter and Strobe

Hardware and Software

• Long life self-charging battery
• Display Graphic LCD backlit b/w Display
• Firmware upload from another fixture
• Firmware Upgrade via Web Server
• Diagnostic
• DMX monitoring
• Remote access through RDM
• CloudIO compatibility

Housing

• Aluminum and steel structure with plastic covers
• Two side handles for transportation
• IP66 protection rate
• IK10 impact resistance rate

Working Position

• Working in any position
• Hanging system: with fast-lock omega clamps (1/4 turn) on the base pn 183102/805
• Optional safety chain

Thermal

• Max ambient temperature 40°C (104°F).
• Min ambient temperature -10°C (14°F).
• Max temperature of the external surface 90°C (194°F)
• Total heat dissipation: 1128 BTU/hr ±10% / 1188 kJ/hr ±10%

Safety

• Minimum distance of illuminated objects 3 meters (9' 10")
• Minimum distance from flammable materials 0.2 meters (8")
• Thermally protected power supply (overheating and cooling failure)
• Forced ventilation with axial fans

Compliance

• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
• UKCA: conforms to UK legislation
• cMETus Listed

Packaging

• Carton box + Polystyrene
• Carton box + Foam shell
• Flight case + Foam shell (2 positions)

Weight and Size

• 37,5 Kg (82,8 lbs)
• 336x420mm (base dimension) - 731mm with vertical head (h)
• Distance between two fixtures 700mm
