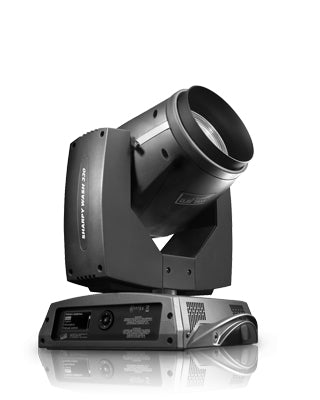

Clay Paky Sharpy Wash 330 - 330 Watt Discharge Moving Head Wash

Product Overview

Sharpy Wash 330 is an extraordinarily compact, lightweight 330 W washlight, with the luminous efficiency, graphic and optical performance of a 1000W fixture. It is extremely silent and quick, and fitted with a complete CMY color system, special colors, 6.5°-48° zoom, mechanical dimmer, beam shaping filter and motorized top-hat. At minimum beam angle, the Sharpy Wash 330 produces a beam like its brother Sharpy: the two lights are designed to work perfectly together. It is an eco-friendly light, allowing considerable running and consumption cost savings.

Product Features

• New 330W Lamp (8,000 K 1,500 h)
• Equalling the light output of a 1,000 Watt luminaire
• Small, lightweight and easily transported: only 18.5 Kg (40.8 lbs)
• Adjustable beam angle from 6.5° to 48°
• Motorised Top Hat (Clay Paky patented)
• CMY Color System + 11-color wheel + open
• Rotating beam shaper
• High speed movements and effects
• Frosted, smooth mechanical dimmer
• High speed Stop/Strobo effect
• Soft-edge Filter + heavy frost filter
• New, high-performance electronics
• Art-Net / RDM
• Patented Italian design Eco-friendly: replaces far larger and more expensive washlights
• Electronic ballast fitted as standard
• Available in black, white, gold-plated and "mirror-finish" chrome plated versions

Product Specifications

POWER SUPPLIES

• 115/230V 50/60 Hz

INPUT POWER

• 520VA at 230V 50Hz

LIGHT SOURCE

• Discharge lamp with a short arc burner in a reflector system
• Output lamp power: 330W
• Color temperature: 8,000 K
• Nominal luminous flux: 16,000 lm
• Average rated life: 1,500 h

OPTICS

• Front-Fresnel lens (patented spiral lens)
• Zoom: from 6.5° to 48°

COLOR SYSTEM

• CMY Color System
• Color wheel with 11 fixed colors + open

EFFECTS SECTION

• Smooth and frosted mechanical dimmer
• High speed Stop/Strobo effect
• Soft-edge Filter
• Heavy Frost Filter
• Rotating and indexable beam shaper

CONTROL AND PROGRAMMING

• Max 22 DMX 512 control channels
• DMX protocol signal: USITT DMX 512
• Art-Net / RDM
• Display: Graphic LCD backlit b/w Display
• Pan/Tilt Resolution: 16 bit
• Movement control: vectorial
• DMX signal connection: 3 and 5 pole XLR input and output
• Software upload through DMX input

BODY

• Aluminium structure with die-cast plastic cover
• Two side handles for transportation
• Device locking PAN and TILT mechanisms for transportation and maintenance

MOVING BODY

• Travel:PAN = 540°TILT = 240°
• Resolution:PAN=2.11°; PAN FINE=0.008
• TILT=0.98°; TILT FINE=0.0004°
• Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit

ELECTRONICS

• Long life self-charging buffer battery
• Function reset from the lighting desk
• ON/OFF lamp control from the lighting desk
• "AUTOTEST" function from menu
• Electronic monitoring with status error
• Cooling system monitoring
• DMX level monitoring on all channels
• Internal data transmission diagnostics
• Firmware upgrade with no power
• Firmware upload from another fixture

SAFETY DEVICES

• Bipolar circuit breaker with thermal protection
• Automatic break in power supply in case of overheating
• Forced ventilation with axial fans

WORKING POSITION

• Any working position
• Hanging system: with fast-lock omega clamps (1/4 turn) on the base

CE MARKING

• In conformity with the European Directives:
• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
• ETL
• This product is available with cETLus Listed Mark, that complies with the UL 1573 and CSA C22.2 No. 166 standards

WEIGHT

• 18.5 kg (40.8 lbs)
