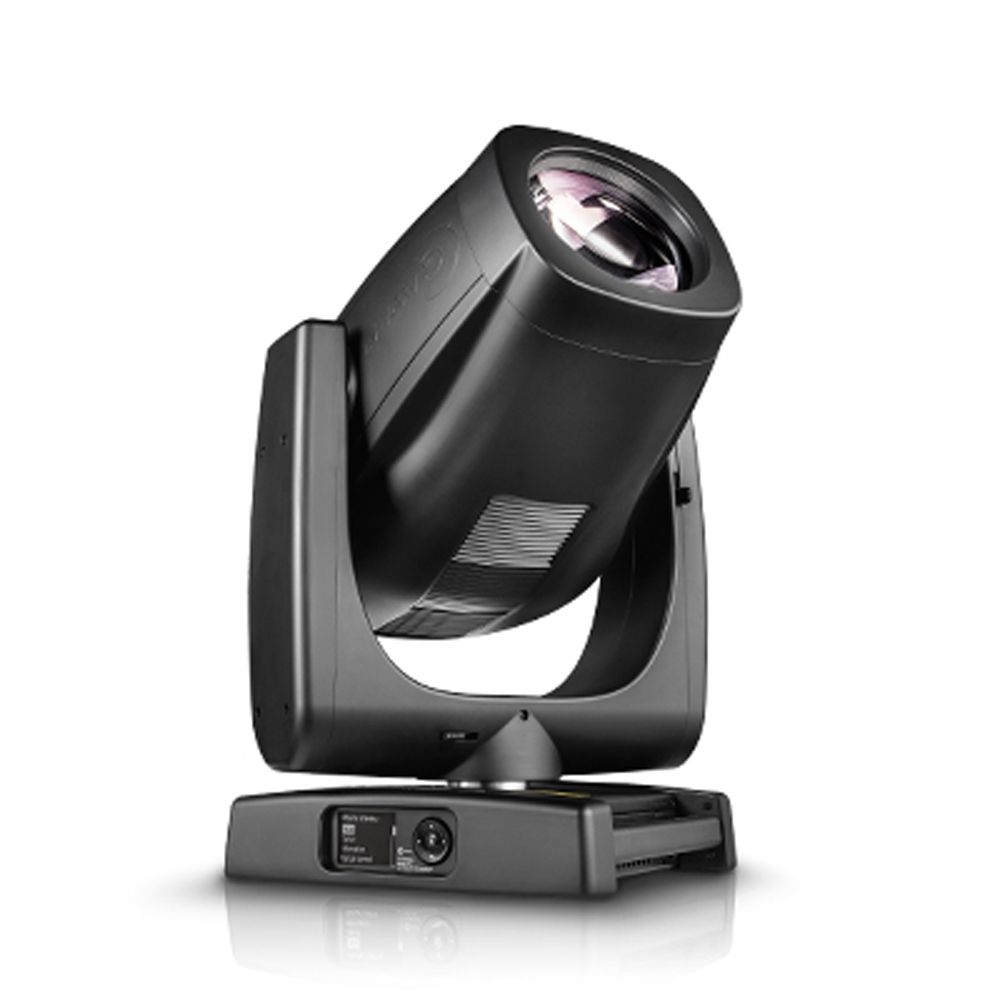

Clay Paky Sharpy X Frame - 550W Discharge Moving Head Spot/Beam Hybrid in Black Finish

Adding to the family of the award-winning SHARPY fixtures, Claypaky introduces the SHARPY X FRAME multifunction luminaire. The SHARPY X FRAME takes the best features of the SHARPY line and integrates a four-focal plane shutter system in a lightweight, compact fixture. The unit's source is the powerful 550- Watt arc lamp that makes this fixture extremely bright and produces deep and vivid uniform colors (including an unmatched deep red).

The unit boasts the flexibility to be the light you need when you need it. As a completely hybrid, multifunction fixture, the SHARPY X FRAME not limited as to beam effects, it can also be a spot, profile, or wash unit. This fixture replaces much larger luminaires using the longer life 550- Watt arc lamp.

Although a small fixture by most standards, nothing is sacrificed in the SHARPY X FRAME fixture's feature set. In addition to the four-focal plane shutter system, the unit offers a rotating gobo wheel with eight rotating gobos, a static gobo wheel, four and eight-facet rotating prisms, linear frost, a color system featuring CMY, CTO and a separated color wheel, and six beam reducers starting at 0.5°.

With a zoom range from 3° to 52° (spot mode) and 2° to 29° (beam mode), the SHARPY X FRAME can do unparalleled visual effects. The unit is fitted with a 160mm front lens and proven Claypaky optics for producing sharp images and collimated beams.

The SHARPY X FRAME is the most versatile, compact hybrid fixture on the market that addresses the needs for a bright spot, aerial effects unit, framing fixture and everything in between in an affordable, compact package.

Thanks to the continuous success that Sharpy X Frame is showing internationally and across many market segments, a new version has been introduced: the SHARPY X FRAME FD. Equipped with minor, yet worthy, solutions suitable for broadcasting application, Sharpy X Frame FD has immediately found appreciation from TV Lighting Designers. It features a brilliant and lighter magenta color filter (with a different color gamut delivering "camera-friendly" tonalities), and a light frost filter allowing soft-edge effect on gobos and framing blades.

Product Features

• Light source: 550W arc lamp
• CRI: 80+ and up to 90 by mixing the CMY wheels
• Output: 18,800 lm (in integrating sphere)
• 160-millimeter diameter front lens
• 3°-52° (spot mode) and 2°-29° (beam mode) linear motorized zoom
• Linear CMY color mixing
• Linear CTO
• 14-color wheel on separate channel
• Rotating gobo wheel with 8 interchangeable glass gobos
• Static gobo wheel with 18 static gobos
• Six beam reducers (down to 0.5°)
• Animation wheel
• Rotating 4-facet prism on dedicated channel
• Rotating 8-facet prism on dedicated channel
• Motorized iris
• Framing system: 4 focal planes, +/-60° rotation and macro channel control
• Linear heavy frost 5° for wash effect (Sharpy X Frame) | Linear heavy frost 2° for wash effect (Sharpy X Frame FD)

Specifications

Power Supplies

• Operating Voltage: 100-240V, 50/60 Hz
• Power Supply: Electronic auto range with active PFC

Input Power

• Max Power consumption: 750VA

Light Source Type

• 550W arc lamp
• CRI: 80+
• Colour Temperature: 8000K
• Lamp life expectancy: 1500 hrs
• *It may vary depending on various factors, as type of use and environment

Photometric Data

• Zoom range in SPOT mode: 3° to 52°
• Zoom range in BEAM mode: 2° to 29° (up to 0.5° using beam reducer)
• 18800 Lumen Output (Integrating Sphere)
• Front lens diameter: 160mm
• High efficiency optical system

Noise Level

• Auto fan mode: 49.3 dBA

Control and Connections

• Personalities: Single mode with 43 control channels
• Control Protocol: DMX, Art-Net, RDM, sACN
• DMX and RDM connectors: Locking 5 pin XLR IN/THRU
• Ethernet port: RJ45 IN
• Power connector: PowerCon True1
• Built In Web Server

Colors

• Linear CMY color mixing (brilliant and lighter Magenta in the Sharpy X Frame FD model)
• Linear CTO
• Fixed color wheel with 14 dichroic colors

Gobos

• 1 Rotating gobo wheel with 8 HD Indexable and replaceable gobos
• Rotating gobo dimensions:
• Ext diam. 19 mm
• Image diam. 14.5 mm
• Thickness 1.1mm
• 1 Static Gobo Wheel with 18 gobos

Framing system

• 4 blades with +/- 60° rotation of the full system
• Total Curtain effect allowing the full blackout with each single blade
• Built In macros

Frost

• Linear heavy frost 5° for wash effect Sharpy X Frame
• Linear light frost 2° for wash effect Sharpy X Frame FD

Rotating Effects

• Aluminum animation wheel with continuous rotation in both direction at variable speed
• 2 prisms (4 and 8 facet) with rotation in both direction at variable speed

Iris

• Motorized with variable pulse and random effects

Movement

• Tilt: 270° - 16bit
• Pan: 540° - 16bit
• Accuracy: Resolution ± 0.27° (Range 0.54°)
• Automatic repositioning
• Fast/Standard speed selectable by Function channel
• Mechanical Pan/Tilt lock for safe transportation and maintenance

Beam

• Motorized Zoom and Focus

Dimmer/Shutter

• High resolution dimmer 16 bit
• Shutter and Strobe effect

Hardware and Software

• Long life self-charging battery
• Display Graphic LCD backlit b/w Display
• Firmware upload from another fixture
• Firmware Upgrade via Web Server
• Diagnostic
• DMX monitoring
• Remote access through RDM
• CloudIO compatibility

Housing

• Aluminum and steel structure with plastic covers
• Two side handles for transportation
• IP20 protection rate

Working Position

• Working in any position
• Hanging system: with fast-lock omega clamps (1/4 turn) on the base
• Optional safety chain

Thermal

• Max ambient temperature 45°C (113°F)
• Min ambient temperature -20°C (-4°F)
• Max temperature of the external surface 90°C (194°F)
• Total heat dissipation: 2562 BTU/hr ±10% / 2700 kJ/hr ±10%

Safety

• Minimum distance of illuminated objects 8 meters (26' 3")
• Minimum distance from flammable materials 0.2 meters (8")
• Fuse T10A - 250V
• Thermally protected power supply (overheating and cooling failure)
• Forced ventilation with axial fans

Compliance

• CE: conforms to the European Directives
• UKCA: conforms to UK Regulations
• EAC: conforms to EurAseC Regulations
• cMETus Listed

Packaging

• Carton box + Polystyrene
• Carton box + Foam shell
• Flight case + Foam shell (2 positions)

Weight and Size

• 28 Kg (61.7 lbs)
• 306x350mm (base dimension) - 668 with vertical head (h)
• 12.04" x 13.78" (base dimensions) - 26.3" with vertical head (h)
• Distance between two fixtures 505mm
