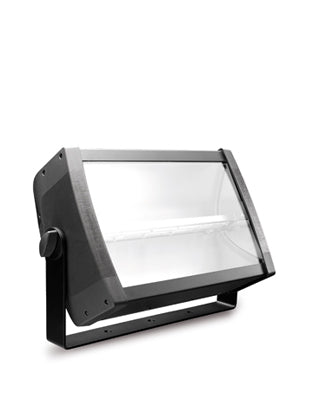

Clay Paky Stormy - 144 x 7 Watt Cool White LED Strobe

Product Overview

Stormy innovates tradition since it uses the latest LED technology, but retains all the charm of a classic strobe. The light source is a strip of powerful white LEDs, which perfectly emulate a bright Xenon linear lamp. The flash effect is actually enhanced since the Stormy is equipped with a parabolic reflector, like a classic strobe, and does not project the light directly forwards like other LED strobes do. The frequency, duration and intensity of the pulse are fully digitally controlled, and these parameters are even independently adjustable, which is impossible with a xenon lamp strobe. Thanks to its highly sophisticated electronics, the light turns on and off instantly, creating the jerky movement illusion. The time the light is on (the pulse duration) may be extended as required. Thanks to the use of LEDs, the light intensity remains absolutely constant, without flickering effect. The Stormy also comes with RGBW LEDs, which are able to flash in any color: there is no more need for gels, which dramatically reduce the amount of light, or slow noisy unreliable scrollers.

Product Features

• 144 x 7W Oslon Osram LEDs (5,700 K, 50,000 h)
• LED Power: pulsed mode 980W max, continuous mode 720W max
• Perfect emulation of a bright Xenon strobe linear lamp
• 42° beam aperture; 130° spatial diffusion
• Beam opening control by optional barndoors
• Total brightness: - 80,000 lm (Stormy)
• DMX 512 control channels: 3 (Stormy)
• RGBW system (only Stormy CC)
• 0-100% adjustable dimmer
• Strobe pulse duration
• Strobe pulse rate
• Bracket adjustable on 360°
• Remote Device Management (RDM)

Product Specifications

POWER SUPPLIES

• AC power input Neutrik PowerCON TRUE1 (IP65)
• 100-240V 50-60Hz

INPUT POWER

• 850 VA

LIGHT SOURCE

• 144 x 7W Oslon Osram LEDs
• LED Power: pulsed mode 980W max, continuous mode 720W max.
• Color Temperature: 5700 K
• Average Life of the LEDs: 50,000 h

OPTICS

• High efficiency parabolic reflector
• Perfect emulation of a bright Xenon linear lamp
• 42° beam aperture; 130° spatial diffusion
• Beam opening control by optional barndoors
• Total brightness: 80,000 lm (Stormy)

EFFECTS SECTION

• 0-100% adjustable dimmer
• Strobe pulse duration
• Strobe pulse rate

CONTROL AND PROGRAMMING

• DMX 512 control channels: 3
• DMX protocol signal: USITT DMX 512
• RDM
• Pre-set macros
• Display: Graphic LCD backlit blue-white Display
• Dimmer and colors Resolution: 8 bit
• DMX signal connection: 5 pole XLR input and output
• Software upload through DMX input
• Firmware upload from another fixture

BODY

• Body extruded in black anodized aluminium
• 4 membrane buttons

SUPPORT

• Bracket adjustable on 360°

ELECTRONICS

• AUTOTEST function from menù
• Electronic monitoring with status error
• Cooling system monitoring
• DMX level monitoring on all channels
• Internal data transmission diagnostics

SAFETY DEVICES

• Forced ventilation with axial fans

WORKING POSITION

• Working in any position

CE MARKING

• In conformity with the European Directives:
• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)

WEIGHT

• 7.2 Kg (15.13 Ibs)
