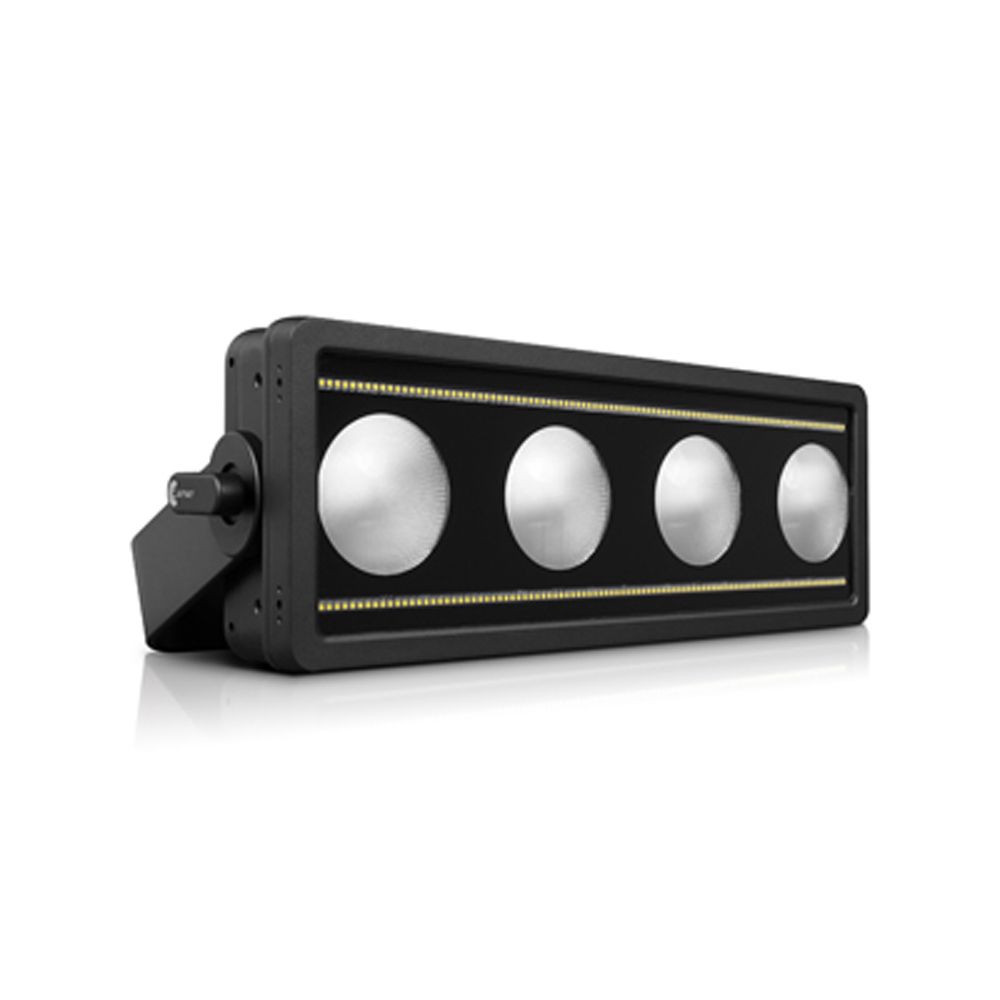

Clay Paky Tambora Flash - 4 x 100W RGBWW LED Strobe/Wash/Blinder in IP66-Rated Housing

Following on from its successful range of LED bars introduced last year, Claypaky has now expanded the Tambora family further and introduces TAMBORA FLASH. It is the only hybrid fixture on the market that can act simultaneously as a strobe, wash and blinder, specifically designed with a modular approach for use in a linear array, to offer new creative opportunities to lighting designers.

The strobe section is based on two strips of very powerful white LEDs and a large beam angle aperture, capable of bringing a real impact of light into the show.

The blinder and the wash functions are obtained thanks to 4 large central RGBWW LED reflectors of 100W each, individually controllable in each function through the Advanced Layers Management. The presence of Warm White LEDs allows the "warm" effect typical of blinders. However, the blinder effect can also be obtained by using colored LEDs, for a more dramatic effect than usual.

Both strobe and blinder effects are so visually striking that they can be perfectly appreciated in concerts and live events in broad daylight, even in bright sunlight!

Tambora Flash was conceived and developed with the idea of ​​making several product units combinable horizontally and vertically, in order to obtain clusters that are conceptually like the line arrays of audio systems. Its core unit is suitable for smaller venues and this is contained in a modular design that can be quickly connected together to create larger units for use in big venues and stadiums.

Claypaky Tambora Flashes offers two quick coupling modes and the adjustment of each single fixture within the cluster on a 30° angle, in order to adapt to every application.

The advanced mechanics and the ease of combining matrix products make Tambora Flash a truly versatile and fun to use system.

Tambora Flash offers an IP66 degree of protection, which guarantees its ideal use in outdoor applications.

Product Features

• Static Hybrid strobe/blinder
• Light source: 4 RBGWW LED with reflector + Two lines of white strobe
• 4 LED reflectors (each one): R: 8 LEDs. G: 8 LEDs. B: 6 LEDs. WW: 14 LEDs = 100W each reflector - 32° beam angle aperture
• Strobe white LEDs: 192pcs by 3.7W each, individually controlled by 16 areas of 12 LED pixels each - 120° beam angle aperture
• Advanced Layers Management (Color - Internal Shape - Pixel Mapping + Strobe)
• Pixel mapping and strobe splitted into 8 different areas per line (16 in total)
• Electronic linear dimmer, 24 bit and 5 curves
• Electronic strobe @25 f/sec
• Control signal: USITT DMX 512
• Protocols: RDM, WebServer, Art-Net, sACN and kling-net
• Input Power: 1200VA @230Vac 50Hz
• IP66 rating
• CloudIO Ready: fully compatible with CloudIO
• Weight: 10,5kg (23.15 lbs)
• Dimensions: 500x180x128mm (19.68" x 7.08" x 5.03")

Specifications

Power Supplies

• Operating Voltage: 100-240V, 50/60 Hz - In/Out Max 1(0) fixtures @ 200-240Vac (@ 100-120Vac).
• Power Supply: Electronic auto range with active PFC.

Input Power

• Max Power consumption: 1150VA @230Vac 50Hz.

Light Source Type

• 4x 100W RBGWW LEDs with 31° reflector.
• 2 lines cold white strobe LEDs splitted into 16 areas (120° beam angles) 6000K CCT.
• LED life expectancy: 50000Hrs L70*
• *It may vary depending on various factors, as type of use and environment

Photometric Data

• 4 RGBW LEDs 31°@50% - 45° @10% of beam angle aperture.
• 8458 Lumen Output (Integrating Sphere) @ Full color.

Noise Level

• SLN mode: 36.7 dBA.
• Theatre mode: 36.7 dBA.
• Constant mode: 49.2 dBA.
• Auto mode: 49.3 dBA.

Control and Connections

• Personalities: Five different operating mode: 16/20/34/42/36.
• Control Protocol: DMX, Art-Net, RDM, sACN.
• DMX and RDM connectors: Locking 5 pin XLR IN/THRU.
• 2x Ethernet ports: RJ45 IN/OUT.
• Power connector: PowerCon True1 IN/OUT.
• Built In Web Server.

Dynamic Effects

• Advanced Layers Management (Color - Internal Shape - Pixel Mapping + Strobe).
• Electronic linear dimmer, 24 bit and 5 curves.
• Electronic strobe @25 f/sec.
• Pixel mapping and strobe splitted into 8 different areas per line (16 in total).
• Individual LED control of four central RGBWW LED with reflector.
• Pre-programmed shape selection of static and dynamic patterns, adjustable in color, speed, direction, fade, strobe.
• Red Shift.
• Strobe shape duration, speed, fade - rate from 0.3Hz to 25Hz.

Hardware and Software

• Long life self-charging battery.
• Display Graphic LCD backlit b/w Display.
• Firmware upload from another fixture.
• Firmware Upgrade via Web Server.
• Diagnostic.
• DMX monitoring.
• Remote access through RDM.
• CloudIO compatibility.

Housing

• Aluminum structure.
• IP66 protection rate.

Working Position

• Working in any position.
• Advanced mechanics for horizontal and vertical combination.
• Hanging system: with fast-lock omega clamp (1/4 turn).
• Adjustable angle from 0° to 20°.

Thermal

• Max ambient temperature 45°C (113°F).
• Min ambient temperature -20°C (-4°F).
• Max temperature of the external surface 90°C (194°F).
• Total heat dissipation: 3928 BTU/hr ±10% / 4140 kJ/hr ±10%

Safety

• Minimum distance of illuminated objects 0.5 meters (1'8").
• Minimum distance from flammable materials 0.2 meters (8").
• Thermally protected power supply (overheating and cooling failure).
• Forced ventilation with axial fans.

Compliance

• CE: conforms to the European Directives.
• UKCA: conforms to UK Regulations.
• EAC: conforms to EurAseC Regulations.
• cMETus Listed.

Packaging

• Carton box + Polystyrene.
• Carton box + Foam shell.
• Flight case + Foam shell (4 position).

Weight and Size

• 5.7 Kg (12.5 lbs)
• 533 x 180 x 186 mm (19.68" x 7.08" x 5.03")
