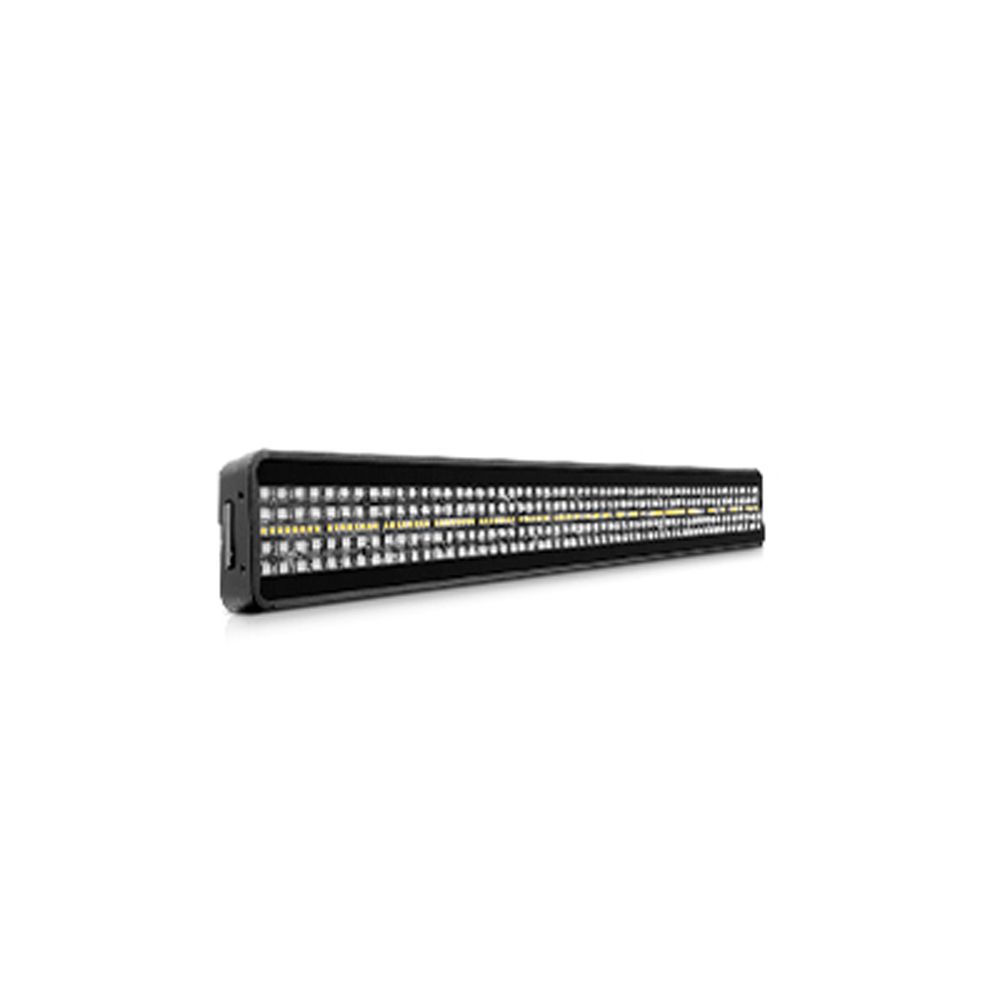

Clay Paky Tambora Linear 60 - 240x RGB + 120x White LED Static Hybrid Linear Bar

Following on from its successful range of LED bars introduced last year, Claypaky has now expanded the Tambora family further and introduces TAMBORA LINEAR 60, an advanced static LED Pixel mapping bars designed for versatile lighting effects and artistic set decoration.

These are hybrid bars, which incorporate two complementary effects into one fixture. The first is driven by a system of 240 RGB pixel LEDs, which offer a background light very similar to that of a high definition LED wall in appearance. This LED array can be controlled as 16 LEDs in 15 groups to provide high quality motion graphics.

The second effect is created by a central line of 120 extremely powerful white LEDs for an overwhelming strobe effect, capable of reproducing the behavior of the most celebrated strobe fixtures on the market. This effect can also be controlled through 15 different areas, offering unparalleled versatility.

All graphic content can be managed through the Advanced Layers Management, an exclusive feature of Claypaky LED bars, with which you can choose to use different levels of effects simultaneously, giving free expression to your creativity.

Tambora Linear 60 features a large number of build-in effects, so it can be used not only in advanced mode but also in a simple mode for whenever a media server is not available, or the installation requires a speedy solution.

The Tambora Linear 60 can be easily connected mechanically with multiple units and then operated as one complete fixture from the control software. This is extremely easy and user friendly to use. For greater compositional modularity we also offer TAMBORA LINEAR 100 (1 m lenght).

Claypaky also offers a wide range of easy-to-apply accessory filters. These can shape the beam of light with a frost effect or increase the readability of the pixels with the "neutral density" filter, which is particularly useful for television applications and really enhances the on-camera performance.

Tambora Linear 60 is both sleek and lightweight and has been designed with a slim body, in order to better adapt to many applications. from TV studios to touring, where the need for pixel mapping light sets is increasingly in demand and appreciated. The "hybrid" nature of Tambora is perfect for this need and provides a two in one versatility. This is a truly distinctive product within each lighting set, at a truly competitive price.

Product Features

• Static Hybrid Linear bar: graphical strobe and background colors
• Tambora Linear 60 light source: RGB LEDs and one line of white strobe
• 240pcs 3-in-1 RGB LEDs, 4X4pcs in each area, 15 areas in total
• 120pcs white LEDs, 8pcs/area, 15 areas in total
• Advanced Layer Management (Color - Internal Shape - Pixel Mapping)
• 120° Aperture
• Electronic linear dimmer, 24 bit and 5 curves
• Electronic strobe @25 f/sec
• Control signal: USITT DMX 512
• Protocols: RDM, WebServer, Art-Net, sACN
• White CT emulation 2500-8000K
• Enhanced electronic engine for dynamic beam pattern design, with digital accuracy and repeatability
• Basic engine: 9/13/31/33/39 channels
• Pixel engine: 45 channels
• White strobe: 15 channels
• 4 Operating modes: Constant - Auto - Silent - Theatre
• Input Power: 420 VA@230Vac 50Hz
• CloudIO Ready: fully compatible with CloudIO
• Dimensions: 60cm length
• Weight: 3.4 kg (7.5 lbs)
• Optional accessories: - Frost filter 20° or 30°, with no impact on the strobe effect - Neutral density filter (black filter) for television applications (-30% brightness) - Floor mounting with possibility of quick clamp coupling and slot for omega B positioning - Omega B to facilitate hanging
• Accessories supplied: - Carrying handle - Omega bracket - Powercon true1

Specifications

Power Supplies

• Operating Voltage: 100-240V, 50/60 Hz - In/Out Max 5(1) fixtures @ 200-240Vac (@ 100-120Vac) Max 2400W
• Power Supply: Electronic auto range with active PFC

Input Power

• Max Power consumption: 250W

Light Source Type

• 240 RGB LEDs background and 120 white LEDs strobe
• LED life expectancy: 50000Hrs L70*
• *It may vary depending on various factors, as type of use and environment

Photometric Data

• White strobe 120° of beam aperture
• RGB LEDs 35°x63° @50% - 52°x65° @10%
• 9414 Lumen Output (Integrating Sphere)

Noise Level

• Auto: 43.9 dBA
• Sln: 26.2 dBA
• Theatre: 26.2 dBA
• Constant: 45.3 dBA

Control and Connections

• 5 Personalities: 9/13/31/33/39 control channels
• Control Protocol: DMX, Art-Net, RDM, sACN
• DMX and RDM connectors: Locking 5 pin XLR IN/THRU
• Ethernet ports: RJ45 IN/OUT
• Power connectors: PowerCon True1 IN/OUT
• Built In Web Server

Dynamic Effects

• 240pcs 3-in-1 RGB leds, splitter into 15 areas
• 120pcs white leds, splitted into 15 areas
• Advanced Layer Management (Color - Internal Shape - Pixel Mapping - Strobe)
• White CT emulation 2800-8000K
• RGB and Strobe Shape effect
• Electronic linear dimmer, 24 bit and 5 curves
• Electronic strobe/stop from 0.3 to 25 f/sec

Hardware and Software

• Long life self-charging battery
• Display Graphic LCD backlit b/w Display
• Firmware upload from another fixture
• Firmware Upgrade via Web Server
• Diagnostic
• DMX monitoring
• Remote access through RDM
• CloudIO compatibility

Housing

• Aluminum and steel structure with plastic parts
• One handle for transportation
• IP20 protection rate
• Built-in alignment fixture

Working Position

• Working in any position
• Hanging system: with fast-lock omega clamps (1/4 turn) + Long bracket
• Optional safety chain

Thermal

• Max ambient temperature 45°C (113°F)
• Min ambient temperature -20°C (-4°F)
• Max temperature of the external surface 90°C (194°F)
• Total heat dissipation: 1503 BTU/hr ±10% / 1584 kJ/hr ±10%

Safety

• Minimum distance of illuminated objects 0.5 meters (1' 8")
• Minimum distance from flammable materials 0.2 meters (8")
• Fuse T10A - 250V
• Thermally protected power supply (overheating and cooling failure)
• Forced ventilation with axial fans

Compliance

• CE: conforms to the European Directives
• UKCA: conforms to UK Regulations
• EAC: conforms to EurAseC Regulations
• cMETus Listed

Packaging

• Carton box + Polystyrene
• Carton box + Foam shell
• Flight case + Foam shell (4 position)

Weight and Size

• 3.4Kg (7.5 lbs)
• 600 (23.6.7) x 740 (2.9) x 172mm (6.77)
