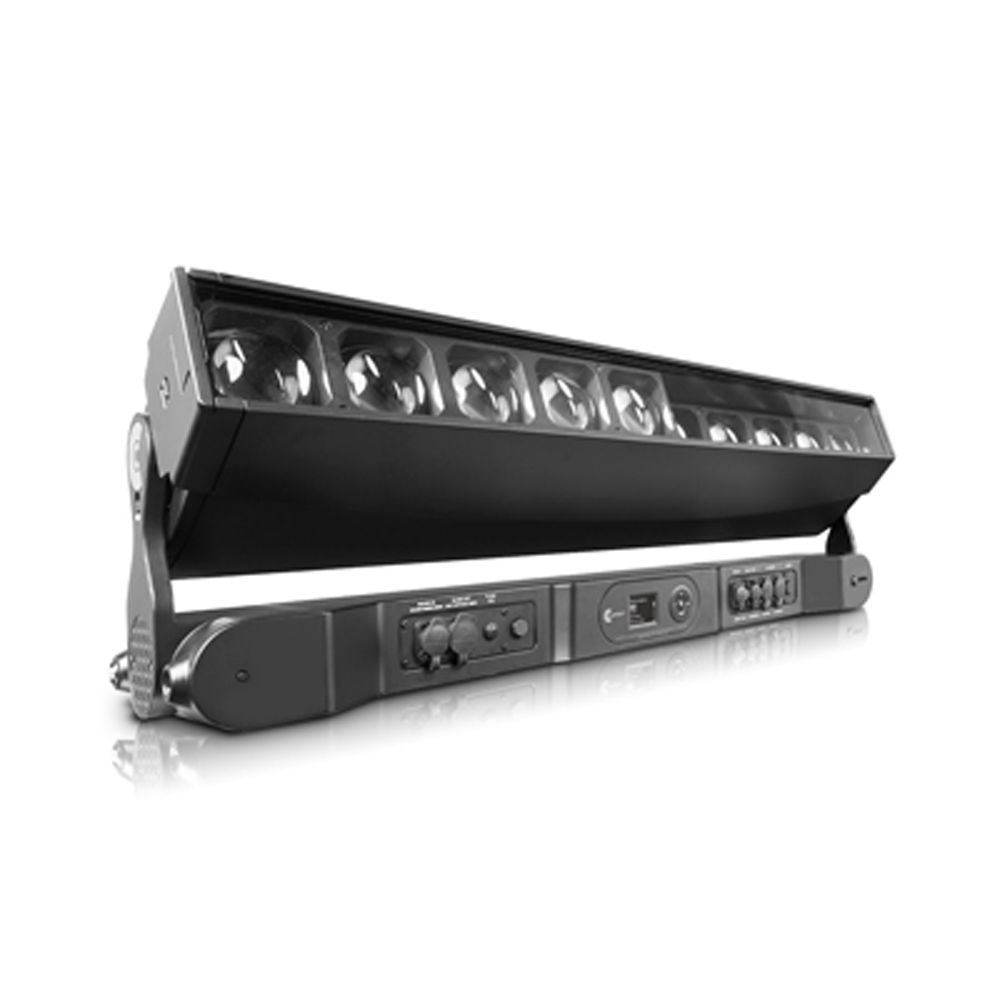

Clay Paky Volero Batten Aqua - 10 x 60W RGBW LED IP66-Rated Motorized Tilt Bar with 4 to 55-Degree Zoom in Black Finish

Name: Clay Paky Volero Batten Aqua - 10 x 60W RGBW LED IP66-Rated Motorized Tilt Bar with 4 to 55-Degree Zoom in Black Finish
Brand: Clay Paky
SKU: CL3002
Availability: InStock

Clay Paky Volero Batten Aqua - 10 x 60W RGBW LED IP66-Rated Motorized Tilt Bar with 4 to 55-Degree Zoom in Black Finish

$0.00 USD

Sale Sold out

Product variants

Quantity

From the first glance you will notice that Volero Batten Aqua is a different moving batten than usual. The light source is in fact made up of 10 x 60W Osram RGBW LEDs, capable of emitting a much higher light power than most of the LEDs bars on the market. Each LED adopts 80x80mm lenses, a very unusual width that allows you more versatility with focussing the power of the LEDs, optimizing their luminous efficiency and resolution.

Volero Batten Aqua offers another important feature, it allows separate control of the Zoom in 2 groups from 5 adjacent lenses, creating a dynamic movement of the light beam that is truly unique and unmatched on the market. It is spectacular to see in operation.

In addition, as an exclusive feature of the entire new Claypaky "Effect Lighting" line, Volero Batten Aqua also offers Advanced Layers Management, with which the operator can choose to use different levels of effects simultaneously.

All these optical, constructive and advanced firmware characteristics give the product an unmistakable appeal, this is particularly stunning when multiple bars connected in seamlessly and for backlight effects.

With its IP66 protection rating, optional Wireless DMX control, a large amount of effects and built-in macros it is the perfect product for the touring, event, television and installation market, and works equally well for both indoor and outdoor applications.

Product Features

Light source: 10x60W RGBW Osram LEDs
10 single pixels with possibility of pixel mapping
80 x 80mm square lenses
4° to 55° zoom aperture
Zoom control: 2 individual zooms, each for 5 lenses
Advanced Layers Management (Background Color - Internal Shape - Pixel Mapping)
RGBW color mixing
Virtual CTO 2500-8000K
Macro function: Built-in Marcos for effects and speed control
Tilt > 215°
Advanced Layer Management
Electronic linear dimmer 24 bit
Electronic strobe @25 f/sec
White CT emulation 2500-8000K
Enhanced electronic engine for dynamic beam pattern design, with digital accuracy and repeatability
Great readability of the light beam in camera
Possibility of mounting on Panify for volumetric projections
Control signal: USITT DMX 512
Protocols: RDM, WebServer , Art-Net, sACN and kling-net
Optional Wireless DMX - WDMX
Software reprogram availability between units or via Ethernet
CloudIO Ready: fully compatible with CloudIO
Power: 800 VA@230Vac 50Hz
IP66 rating
Weight: 29Kg
Dimensions: 1 mt length

Specifications

Light Source

10 x 60W RGBW Osram LEDs
80x80mm square lenses
Color Temperature: 8000K to 2500K
LED life expectancy: 50000Hrs L70*
*It may vary depending on various factors, as type of use and environment

Photometric Data

Zoom range: 4°- 52°
7518 Lumen Output (Integrating Sphere)
High efficiency optical system

Noise Level

Theatre mode: 48.9 dBA
Auto mode: 49.8 dBA
Constant mode: 55.3 dBA

Control and Connections

Personalities: 3 modes with 16/34/33 control channels - Pixel Engine 30 and 40 channels
Wireless DMX system as standard (Wireless Solution)
Control Protocol: DMX, Art-Net, RDM, sACN
DMX and RDM connectors: Locking 5 pin XLR IN/THRU
Ethernet port: RJ45 IN/OUT
Power connector: PowerCon True1 IN/OUT
Built In Web Server

Dynamic Effects

Individual LED control for each parameter
White CT emulation 8000K to 2500K
Beam edge softening control (in wash mode)
Zoom Control:2 individual zooms 5 lenses each
Exclusive parallel beam consisting of an array of individually controllable-beams
RGBW color mixing system
Pre-programmed Shape macro pixel effects
16bit resolution with 5 different dimmer curves
Electronic strobe/stop from 1 to 25 f/sec
Pixel mapping control
Unique "Advanced Layer managing" selection (Just in Advanced mode)
Tilt: 220° - 16bit
Fast/Normal speed selectable by Function channel
Mechanical Tilt lock for safe transportation and maintenance

Hardware and Software

Long life self-charging battery
Display Graphic LCD backlit b/w Display
Firmware upload from another fixture
Firmware Upgrade via Web Server
Diagnostic
DMX monitoring
Remote access through RDM
Cloud/IO compatibility

Housing

Aluminum and steel structure with plastic parts
IP66 protection rate

Working Position

Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base
Fully compatible with Panify for volumetric projection

Electrical

Max Power consumption: 800W
Electronic auto range with active PFC

Thermal Specification

Max ambient temperature 45°C (113°F)
Min ambient temperature -20°C (-4°F)
Max temperature of the external surface 90°C (194°F)
Total heat dissipation: 2732 BTU/hr ±10% / 2880 kJ/hr ±10%

Safety Specs

Minimum distance of illuminated objects 0.2 meters (8")
Minimum distance from flammable materials 0.2 meters (8")
Fuse T10A - 250V
Thermally protected power supply (overheating and cooling failure)
Forced ventilation with axial fans

Compliance

CE: conforms to the European Directives
UKCA: conforms to UK Regulations
EAC: conforms to EurAseC Regulations
cMETus Listed

Packaging

Carton box + Polystyrene
Carton box + Foam shell
Flight case + Foam shell (2 pos.)

Weight/Size

29.4 Kg (64.8 lbs)
244 x 1000 (base dimension) - 358mm with vertical head (h)
9.6" x 39.4" - 14.0"

Accessories

Omega clamps x2: CA3024000102 (included)
Long bracket set: CA3039000102 (included)
PowerConTrue1 connector: CON00O (included)
