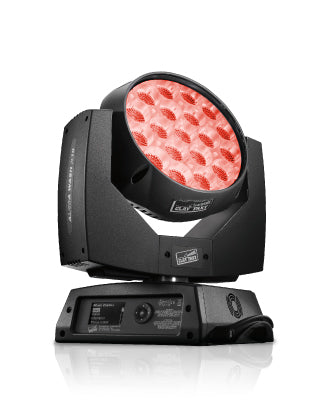

Clay Paky Xtylos - RGB Laser Source Moving Head Head with 1 to 7-Degree Aperture Range

The Xtylos is a compact beam moving light with unique optical and chromatic characteristics, making use of a tailor-made RGB laser source (Patent Application filed). This laser source, lasting for 20,000 hours, is enclosed in a reliable, safe and fully sealed module and it is the powerful engine of an incredible array of colours: in contrast to the subtractive mixing used with discharge lamps, coloured light beams are as bright as a white light beam!

The range of effects features two gobo wheels - with 7 rotating gobos and 12 static gobo slots - a wheel with 3 prisms, and a sixteen facet prism on a dedicated channel which can be overlapped with the prism wheel. The beam aperture can be steered in the range 1°-7°.

The Xtylos is definitely the most dynamic light on the market. It is the first moving head light with a laser light source, and this opens up new, surprising prospects for the development of the entire entertainment lighting world.

Product Features

• Light Source: Tailor-made laser engine, enclosed in a sealed module
• Long lasting light source (20,000 hours) with minimal decay
• Solid, flat field, saturated, ultraconcentrated light beam without any visible hotspots.
• Aperture: 1°-7° range (up to 0.5° using beam diameter reducers)
• RGB additive colour mixing, with exclusive Turbo-colours
• Unequalled colour consistency both across different fixtures and during lifetime.
• Exclusive BLazer graphic effects
• One wheel with 7 rotating gobos
• One wheel with 12 static gobo slots: 5 gobos and 7 beam reducers
• One wheel with 3 prisms and 1 soft-edge frost filter
• Sixteen-facet prism on a dedicated channel
• Unrivalled effect and colour change speed
• Compact housing with easy accessibility to all modules
• Extremely fast pan-tilt movements
• Ultra-precise 24-bit digital dimmer

Specifications

Power Supplies

• Operating Voltage: 100-240V, 50/60 Hz
• Power Supply: Electronic auto range with active PFC

Input Power

• Max Power consumption: 400VA
• Mains Out: Max 1600VA

Light Source

• Tailor-made laser engine, enclosed in a sealed module.
• Solid, flat field, saturated, ultra-concentrated light beam without any visible hotspots.
• Long lasting light source (20,000 hours*) with minimal decay.
• *It may vary depending on various factors, as type of use and environment

Optics

• Aperture: 1°-7° range (up to 0.5° using beam diameter reducers)
• Total lumen output: 2900 lm
• Front lens diameter: 150mm
• High efficiency optical system
• Motorized Focusing @16 bit

Color System

• RGB laser based system with derating to preserve laser diodes.
• Linear virtual CTO 2500K - 6500K.

Effects Section

• 1 Rotating gobo wheel with 7 HD Indexable and replaceable gobos
• Ext diam. 25.9mm (cut @ 25mm)
• Image diam. 11mm
• Thickness 0.5mm
• 1 static gobo disk with 12 gobo slots (5 gobos and 7 beam reducers)
• Rotating Prisms disk: Convex plane, Pyramid 6 facets, Linear 6 facets, Frost.
• 16 Facets prism with rotation in both direction at variable speed.
• Very precise 0-100% digital dimmer, dimmer Resolution: 24 bit.
• High speed electronic Shutter and Strobe.

Control and Programming

• Personalities: Single mode with 31 control channels
• Control Protocol: DMX, Art-Net, RDM, sACN
• DMX and RDM connectors: Locking 5 pin XLR IN/OUT
• Ethernet port: RJ45 IN
• Power connector: PowerCon True1 IN/OUT
• Built In Web Server

Body

• Aluminum and steel structure with plastic covers
• Two side handles for transportation
• IP20 protection rate

Moving Body

• Tilt: 251° - 16bit
• Pan: 540° - 16bit
• Accuracy: Resolution ± 0,28° (Range 0,56°)
• Automatic repositioning
• Fast/Normal speed selectable by Function channel
• Mechanical Pan/Tilt lock for safe transportation and maintenance

Noise Level

• 51.5 dBA

Electronics

• Long life self-charging battery
• Display Graphic LCD backlit b/w Display
• Firmware upload from another fixture
• Firmware Upgrade via Web Server
• Diagnostic
• DMX monitoring
• Remote access through RDM
• CloudIO compatibility

Safety Devices

• Minimum distance of illuminated objects 10 meters (32' 10")
• Minimum distance from flammable materials 0.2 meters (8")
• Thermally protected power supply (overheating and cooling failure)
• Forced ventilation with axial fans and heat sink
• Safety devices bipolar circuit breaker with thermal protection

Thermal

• Max ambient temperature 40°C (104°F)
• Min ambient temperature -20°C (-4°F)
• Max temperature of the external surface 60°C (140°F)
• Total heat dissipation: 1366 BTU/hr ±10% / 1440 kJ/hr ±10%

Working Position

• Working in any position
• Hanging system: with fast-lock omega clamps (1/4 turn) on the base pn 183102/805
• Optional safety chain

CE Marking

• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
• ETL
• cETLus Listed

Weight

• 24 Kg (53 lbs)
• 388x294mm (base dimension) - 582mm with vertical head (h)
• Distance between two fixtures 400mm

Power Supplies

• Operating Voltage: 100-240V, 50/60 Hz
• Power Supply: Electronic auto range with active PFC

Input Power

• Max Power consumption: 400VA
• Mains Out: Max 1600VA

Light Source

• Tailor-made laser engine, enclosed in a sealed module.
• Solid, flat field, saturated, ultra-concentrated light beam without any visible hotspots.
• Long lasting light source (20,000 hours*) with minimal decay.
• *It may vary depending on various factors, as type of use and environment

Optics

• Aperture: 1°-7° range (up to 0.5° using beam diameter reducers)
• Total lumen output: 2900 lm
• Front lens diameter: 150mm
• High efficiency optical system
• Motorized Focusing @16 bit

Color System

• RGB laser based system with derating to preserve laser diodes.
• Linear virtual CTO 2500K - 6500K.

Effects Section

• 1 Rotating gobo wheel with 7 HD Indexable and replaceable gobos
• Ext diam. 25.9mm (cut @ 25mm)
• Image diam. 11mm
• Thickness 0.5mm
• 1 static gobo disk with 12 gobo slots (5 gobos and 7 beam reducers)
• Rotating Prisms disk: Convex plane, Pyramid 6 facets, Linear 6 facets, Frost.
• 16 Facets prism with rotation in both direction at variable speed.
• Very precise 0-100% digital dimmer, dimmer Resolution: 24 bit.
• High speed electronic Shutter and Strobe.

Control and Programming

• Personalities: Single mode with 31 control channels
• Control Protocol: DMX, Art-Net, RDM, sACN
• DMX and RDM connectors: Locking 5 pin XLR IN/OUT
• Ethernet port: RJ45 IN
• Power connector: PowerCon True1 IN/OUT
• Built In Web Server

Body

• Aluminum and steel structure with plastic covers
• Two side handles for transportation
• IP20 protection rate

Moving Body

• Tilt: 251° - 16bit
• Pan: 540° - 16bit
• Accuracy: Resolution ± 0,28° (Range 0,56°)
• Automatic repositioning
• Fast/Normal speed selectable by Function channel
• Mechanical Pan/Tilt lock for safe transportation and maintenance

Noise Level

• 51.5 dBA

Electronics

• Long life self-charging battery
• Display Graphic LCD backlit b/w Display
• Firmware upload from another fixture
• Firmware Upgrade via Web Server
• Diagnostic
• DMX monitoring
• Remote access through RDM
• CloudIO compatibility

Safety Devices

• Minimum distance of illuminated objects 10 meters (32' 10")
• Minimum distance from flammable materials 0.2 meters (8")
• Thermally protected power supply (overheating and cooling failure)
• Forced ventilation with axial fans and heat sink
• Safety devices bipolar circuit breaker with thermal protection

Thermal

• Max ambient temperature 40°C (104°F)
• Min ambient temperature -20°C (-4°F)
• Max temperature of the external surface 60°C (140°F)
• Total heat dissipation: 1366 BTU/hr ±10% / 1440 kJ/hr ±10%

Working Position

• Working in any position
• Hanging system: with fast-lock omega clamps (1/4 turn) on the base pn 183102/805
• Optional safety chain

CE Marking

• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
• ETL
• cETLus Listed

Weight

• 24 Kg (53 lbs)
• 388x294mm (base dimension) - 582mm with vertical head (h)
• Distance between two fixtures 400mm
