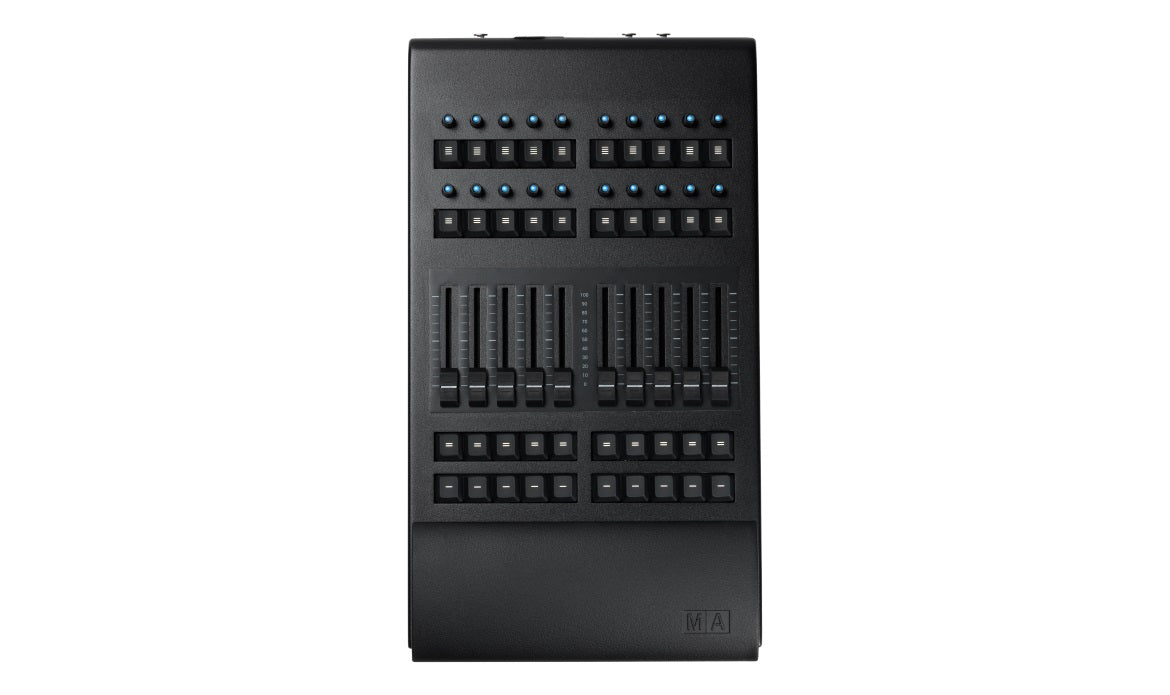

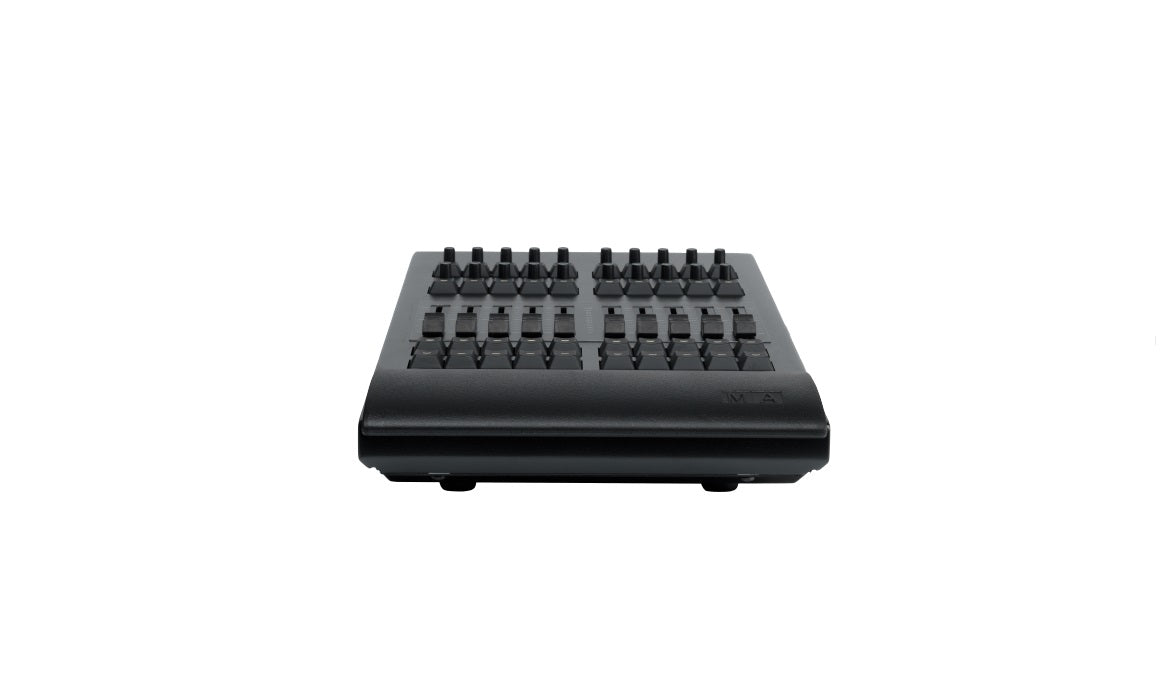

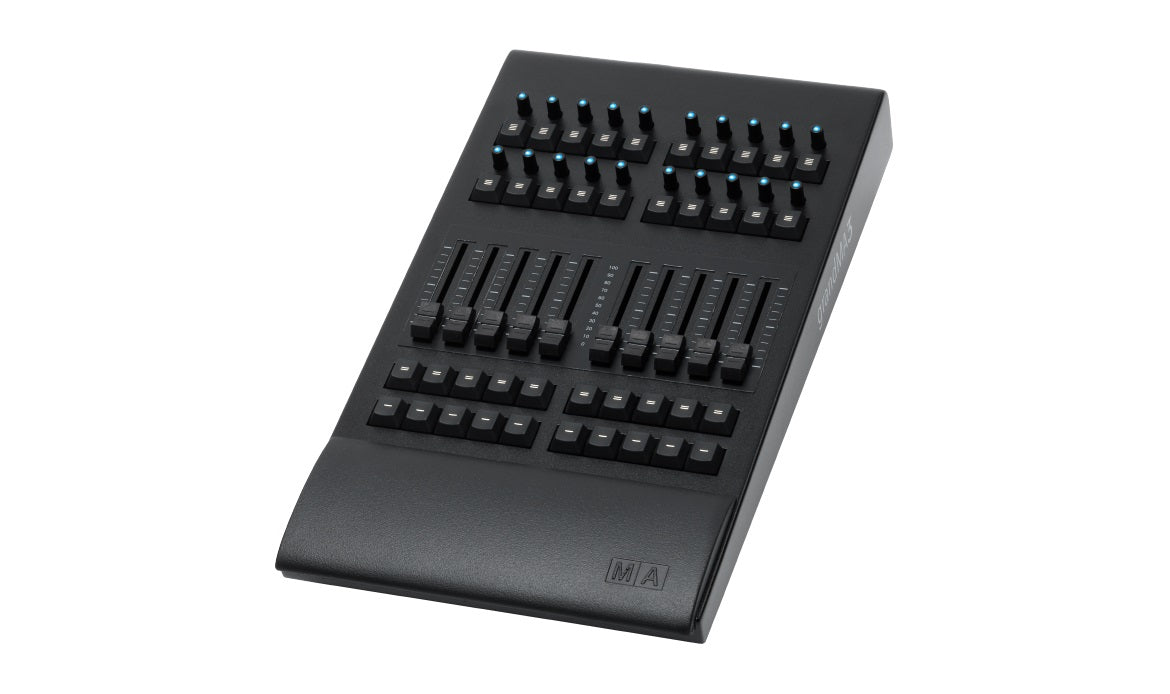

MA Lighting grandMA3 onPC Fader Wing - 2,048 Parameter USB Control Surface

Product Overview

The grandMA3 onPC fader wing is designed as the perfect hardware playback expansion to the grandMA3 onPC software. In combination with this free of charge software, the grandMA3 onPC fader wing offers the full playback capabilities and adds 2 048 Parameters to the grandMA3 onPC parameter count. Perfectly suited with 10 motorized faders and 20 rotary encoders the total of 40 playbacks are useful in any production that needs direct access to playbacks. The grandMA3 onPC fader wing can be combined with a grandMA3 onPC command wing or the grandMA3 onPC command wing XT. It expands both products with additional playback capabilities. With a simple USB connection between the grandMA3 onPC fader wing and the computer running the grandMA3 onPC software, it offers two built-in DMX ports to send two additional DMX universes.

Product Features

• Real-time control for 2 048 parameters in combination with grandMA3 onPC
• Expandable up to 4 096 parameters with onPC products and grandMA3 onPC
• 2 DMX connectors
• 1 USB connector
• 20 rotary RGB backlit encoder
• 10 motorized 60mm faders
• 40 separate playbacks
• Individually backlit and dimmable silent (clickless) keys

Product Specifications

• Parameters: 2 048 (HTP/LTP)
• Parameters Mode2: not applicable (no Mode2)
• Operating voltage/ Supply voltage: 100-240V, 50/60Hz
• Power: max. 50VA
• Operating Temperature: 0 °C up to 40 °C / 32 °F up to 104 °F
• Dimensions: 10 x 17 x 4 in
• Net weight: 11 lbs

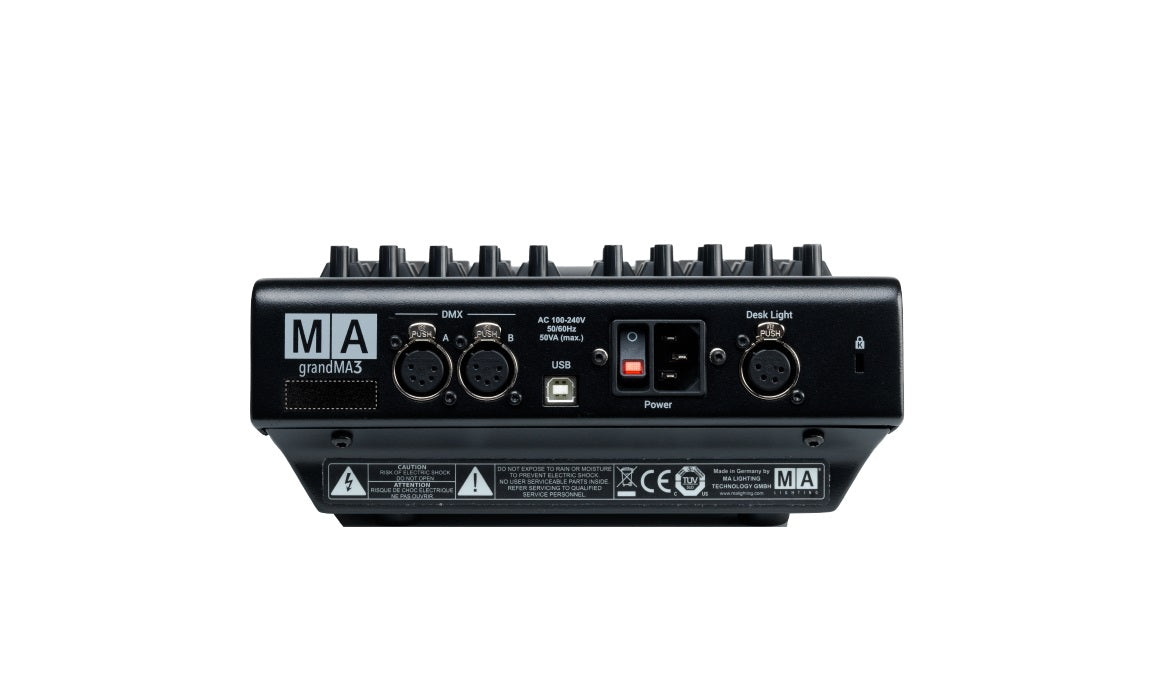

• Connectors:
• 1 x IEC-60320 C14 cord
• 2 x DMX512-A Out (5pin XLR female)
• 1 x USB 2.0 (type B)
• 1 x LED desk light (4pin XLR female)
