Madrix Aura 8 - 8 Universe DIN-Rail Stand-Alone Recorder/Player

Product Overview

The MADRIX AURA is the central stand-alone controller for simple recording and large-scale pixel mapping. It redefines what is possible in a compact control unit with exceptional performance. Independently run the most sophisticated light shows from this energy-efficient playback unit via Art-Net or Streaming ACN. Easily control up to 2 (Aura 2), 8 (Aura 8), or 32 (Aura 32) universes per device. Simply connect compatible MADRIX hardware interfaces or third-party nodes to provide the correct output for your lighting fixtures. MADRIX AURA is a standard network node for Art-Net or Streaming ACN. You can use the device with any compatible application, console, or controller.

Product Features

• Stand-Alone Playback: Independently run the most sophisticated light shows from this energy-efficient playback unit via Art-Net or Streaming ACN.
• Live Recording: Record any Art-Net or Streaming ACN network stream onto the inserted memory card. Unlike any other solution, recording a beautiful light show with MADRIX 5 is as easy as pressing record and play.
• Central Hub: Simply connect compatible MADRIX hardware interfaces or third-party nodes to provide the correct output for your lighting fixtures.
• Time-Controlled Shows: Run scenes automatically with the help of the internal clock as well as the available sunrise and sunset timers.
• Master-Slave Synchronization & Scalability: Manage large projects simply by connecting several units. The entire group is automatically synchronized across all DMX universes for flawless and uninterrupted playback.
• Web Configuration: Use the built-in web configuration page to access and change specific device settings, such as the important IP address, subnet mask, playlist settings, and much more.

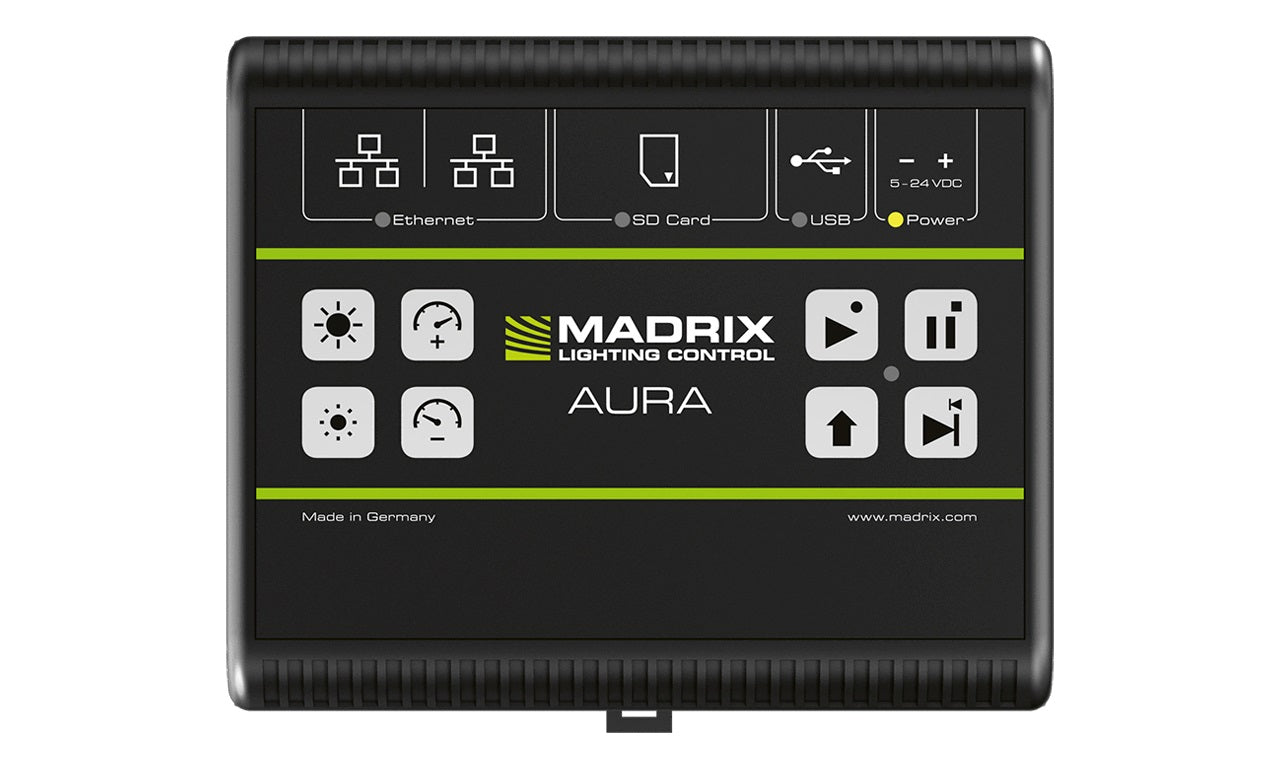

• Live Control: Encased in a non-conductive design for DIN rails or wall mounting, 8 on-device buttons allow for quick playback and recording control. You can also directly adjust the overall speed and intensity.
• Remote Control: Trigger MADRIX AURA via HTTP commands and the built-in web server or use Art-Net/sACN. You can even add MADRIX ORION for interactive installations.

Product Specifications

• Supply Of Power: DC 5 V - 24 V; connection via 2-pin, pluggable screw terminal or via 5 V USB
• Power Consumption: < 1.5 W (300 mA) during normal operation (500 mA max. fused)
• Network Protocols: Art-Net, Streaming ACN
• Output: 8x 512 DMX channels output over Ethernet network
• Recording Input: 8x 512 DMX channels input over Ethernet network
• Remote-Control Input: 8x 512 DMX channels received over Ethernet network
• Ethernet: 2x RJ45, Auto MDI-X, daisy-chain support, 10/100/1000 MBit/s
• SD-Card Slot: Supports SD, SDHC, and SDXC cards (Tested up to 64 GB)
• USB Port: USB 2.0, type B plug
• Handling: 8 control buttons, 5 status LEDs (+ 4 network status LEDs)

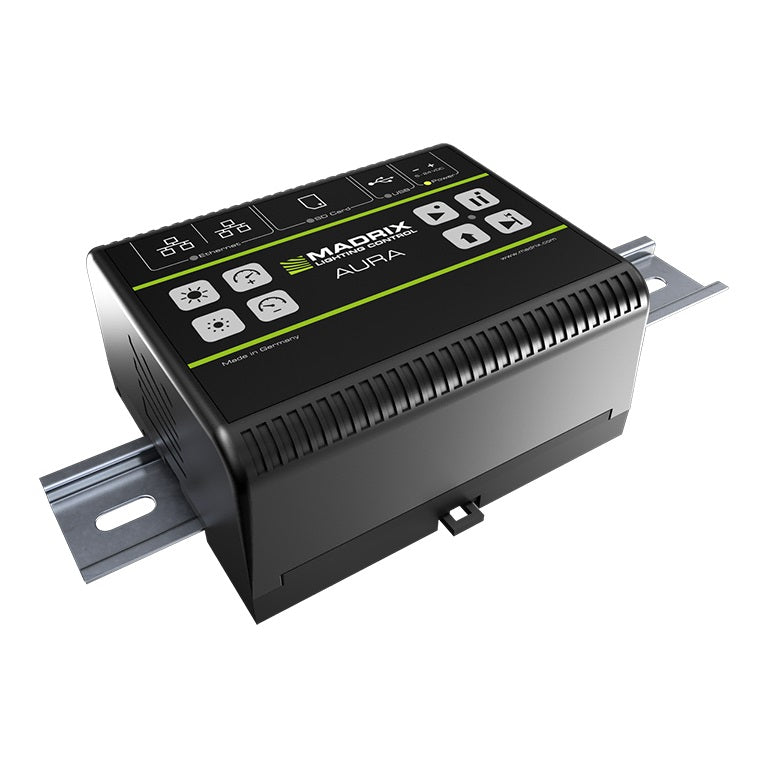

• Case: Non-conductive, V-0 flammability rating (UL94 test method), IP20 IP rating, designed for 35 mm DIN-rails or wall mounting
• Dimensions: 86 mm x 105 mm x 49 mm (Length x Width x Height)
• Weight: 148 g | 154 g incl. screw terminal, SD card, and wall mounts
• Temperature Range: -10 °C to 70 °C (Operating) | -20 °C to 85 °C (Storage)
• Relative Humidity: 5 % to 80 %, non-condensing (Operating / Storage)
