Madrix Luna 8 - 8 Universe Art-Net Node/USB 2.0 DMX Interface

Product Overview

The MADRIX LUNA reliably distributes DMX512 data over long or short distances using Ethernet network or USB. Its sync mode makes sure that lighting effects look their best on the LEDs.

Product Features

• Easy-to-use and reliable Art-Net node with unique features
• Can also be used as DMX512 USB interface
• The device distributes DMX512 data over long or short distances using Ethernet network or USB

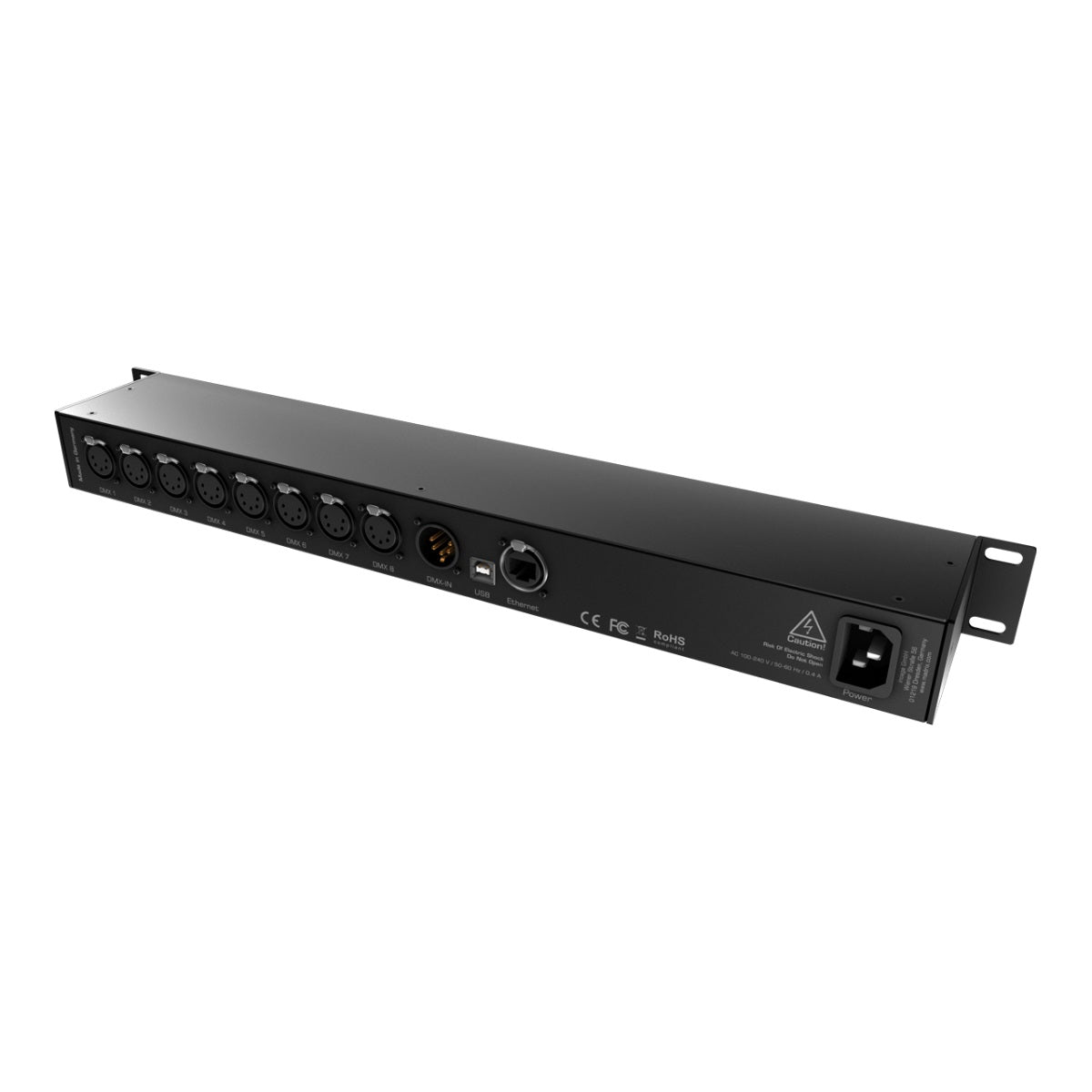

• 8 XLR ports (5-pin, female) distribute 8 DMX universes per unit (4096 DMX channels)
• 1 XLR port (5-pin, male) is always available for DMX input (512 DMX channels)
• Quick and easy installation in MADRIX
• Complies with the official Art-Net specifications and can be used as regular Art-Net unit with other consoles, controllers, or software solutions
• Fanless, low-energy design

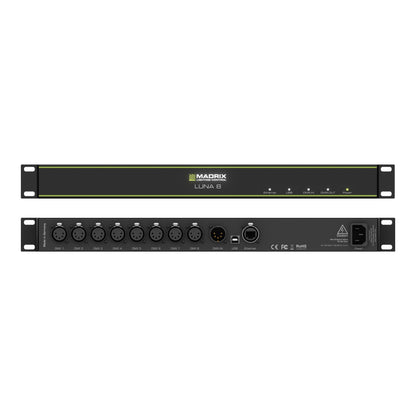

• 19" metal case (1U) including brackets for rack mounting
• Ready within seconds after startup
• Automatic HTP merging for two Art-Net sources

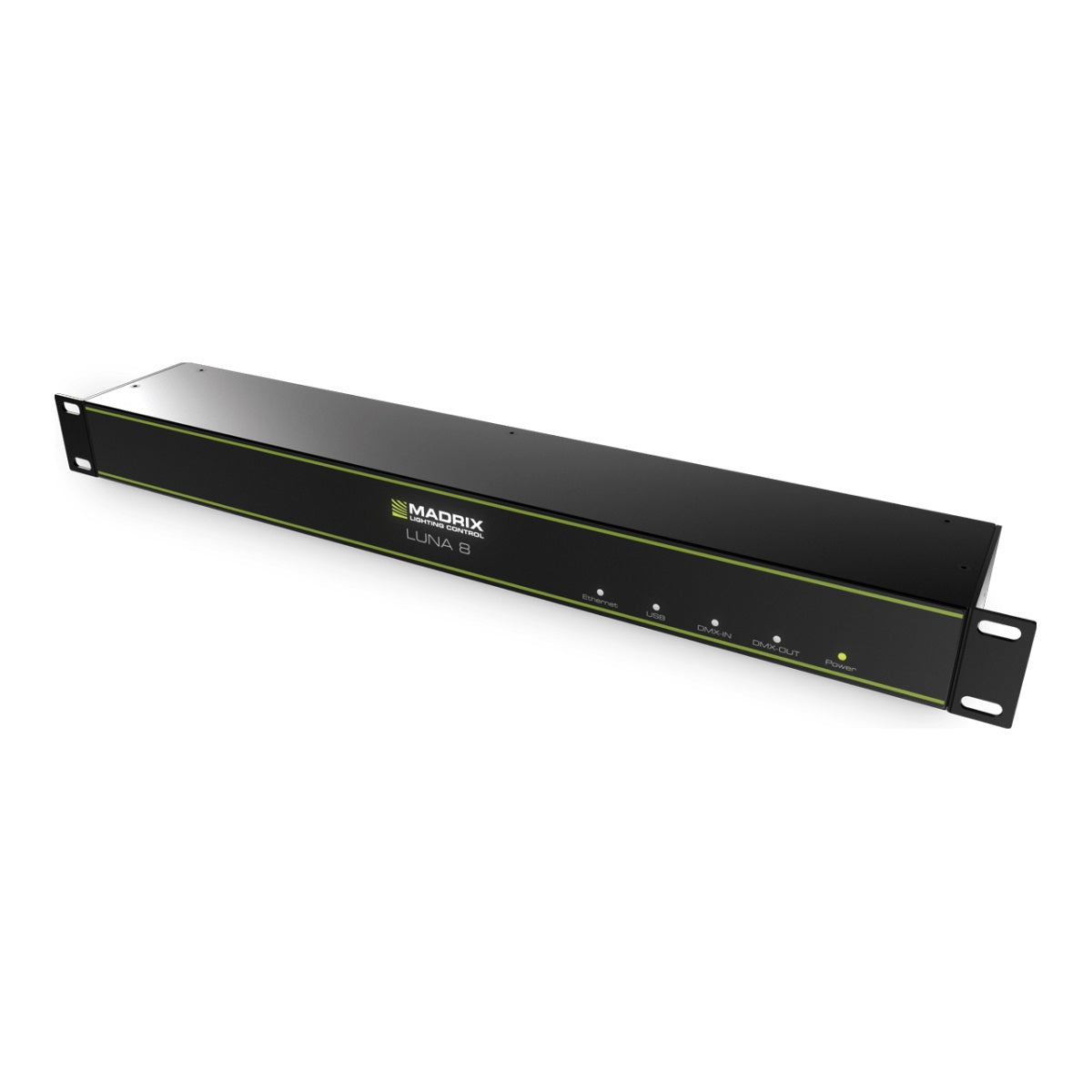

• 5 status LEDs and built-in web configuration interface
• Recommended for any small or large installation
• Multiple devices can be used together without problems

Product Specifications

• Power supply: AC 100-240 V, 50-60 Hz, 0.4 A max., IEC C14 inlet
• Power consumption: < 5 W in normal operation
• DMX512 (OUT): 8x 512 DMX channels output
• DMX512 (IN): 1x 512 DMX channels input
• DMX512 ports (OUT): 5-pin, XLR, female, NEUTRIK
• DMX512 ports (IN): 5-pin, XLR, male, NEUTRIK
• Ethernet (Art-Net): RJ45, 10/100 MBit/s, Auto MDI-X, NEUTRIK etherCON
• USB port: USB 2.0, type B plug
• Case: Metal enclosure, IP20
• Size: 19" x 1U
• Dimensions (body only): 76 mm x 440 mm x 44 mm (length by width by height)
• Dimensions (total): 76 mm x 482.6 mm x 44 mm (length by width by height)
• Weight: 1.4 kg
• Shipping weight: 2.10 kg
