Madrix Nebula - Art-Net Node/USB Interface, SPI Converter For 8 Universes

Product Overview

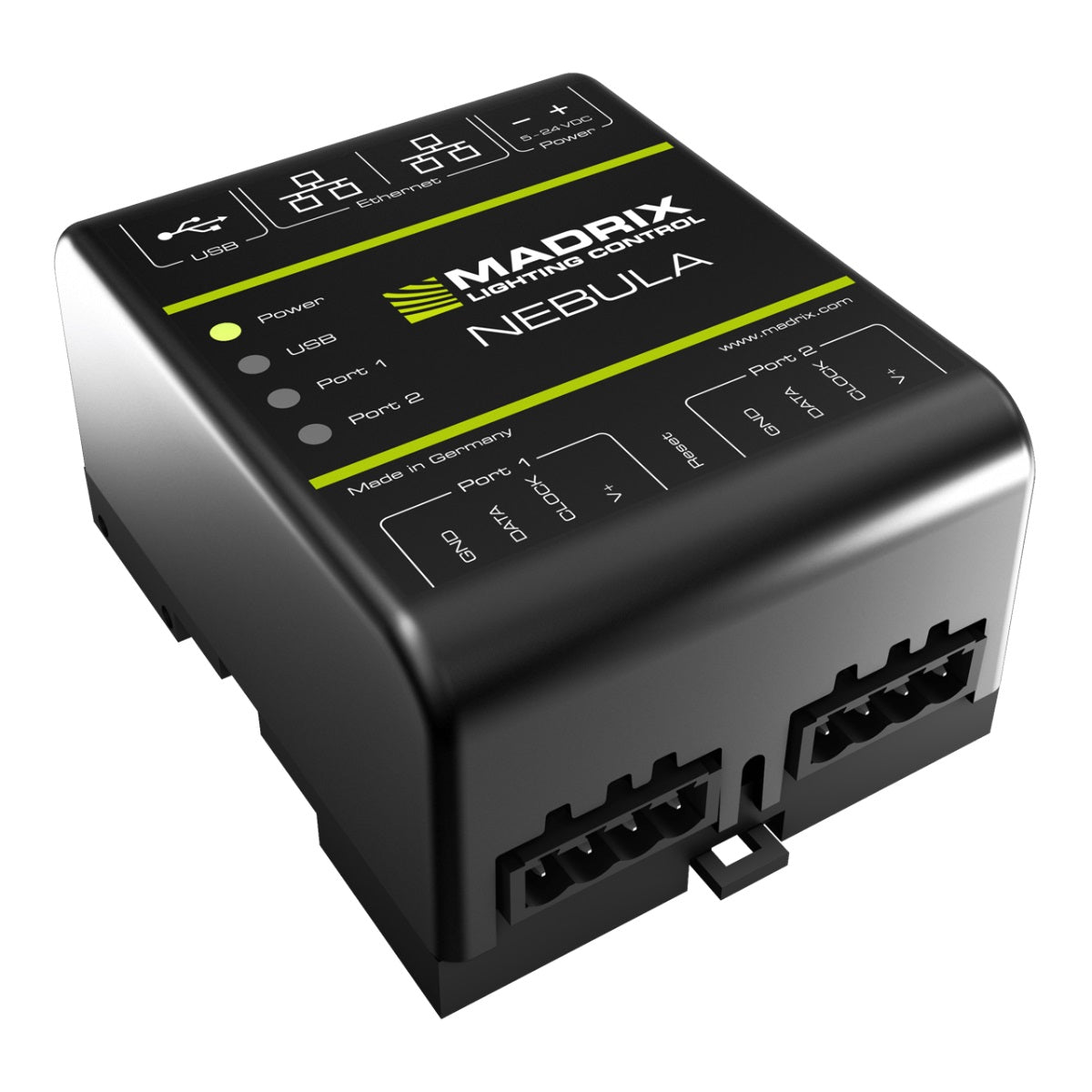

The MADRIX NEBULA directly connects to your LED pixels. This advanced SPI decoder receives control data over Ethernet network or USB and is built to provide excellent image quality.

Product Features

• The MADRIX NEBULA directly connects to your LED pixels.
• Directly connect to a wide range of supported LEDs via two 4-pin screw terminals.
• A signal frequency of up to 24 MHz is available.
• Supply power over USB or 5 V to 24 V over a 2-pin screw terminal.
• Art-Net is directly converted to SPI without the need for an additional interface.
• Reliably distribute data from any compatible software or hardware controller.
• Use USB or Art-Net for all the great features of the MADRIX software.
• Each device drives up to 1.360 RGB pixels while ensuring responsive delivery.
• You can choose the output protocol separately for each of the two ports.
• The device is ready within seconds after startup.
• Its firmware is upgradable for future features.
• HTP Merging is automatically available for two Art-Net sources.

Product Specifications

• Power Supply: DC 5 V - 24 V, A) via 2-pin screw terminal (12 A max.), B) via 5 V USB, C) via Port 1 or 2 sourced from LEDs; 6 A max. load per port when supplying through to LEDs
• Power Consumption: < 1.5 W during normal operation (300 mA max.)

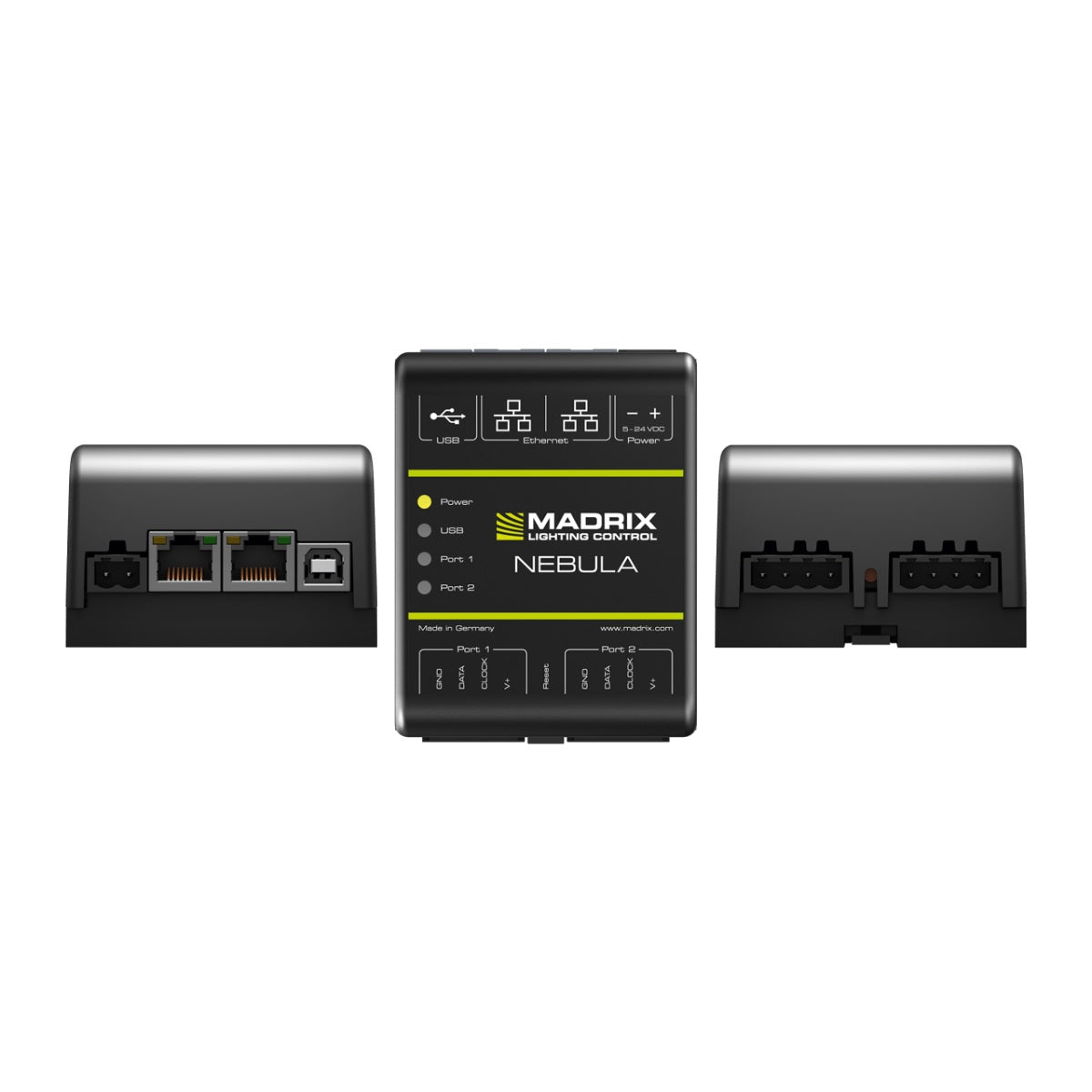

• USB: USB 2.0, type B port
• Data Output: 8x 512 channels SPI TTL (Maximum output per port: 680 RGB LED's / 512 RGBW LEDs / 2048 1-Channel LEDs
• Ports: 2x ports (via 2x 4-pin screw terminals)
• Ethernet: 2x RJ45, Auto MDI-X, 10/100 MBit/s (compatible with 1 GBit/s)
• Supported LEDs: APA101, APA102, APA104, APA106, GW6201, GW6205, LPD1882S, LPD6803, LPD8806, MBI6120, P9883, SJ1221, SK6812, SK6822, SM16703, SM16716, TLS3001, TLS3008, TM1804, TM1809, TM1812, TM1814, TM1829, UCS1903, UCS512B3, UCS8904, UCS9812S, WS2801, WS2803, WS2811, WS2811S, WS2812, WS2812B, WS2813, WS2815, WS2818, WS2822S, WS2822S Addressing
• Dimensions: 92 mm x 70 mm x 45 mm
• Weight: 111 g | 130 g incl. screw terminals and wall mounts
• Operating Temperature: -10 °C to 70 °C
• Storage Temperature: -20 °C to 85 °C
• Relative Humidity: 5 % to 80 %, non-condensing (Operating / Storage)

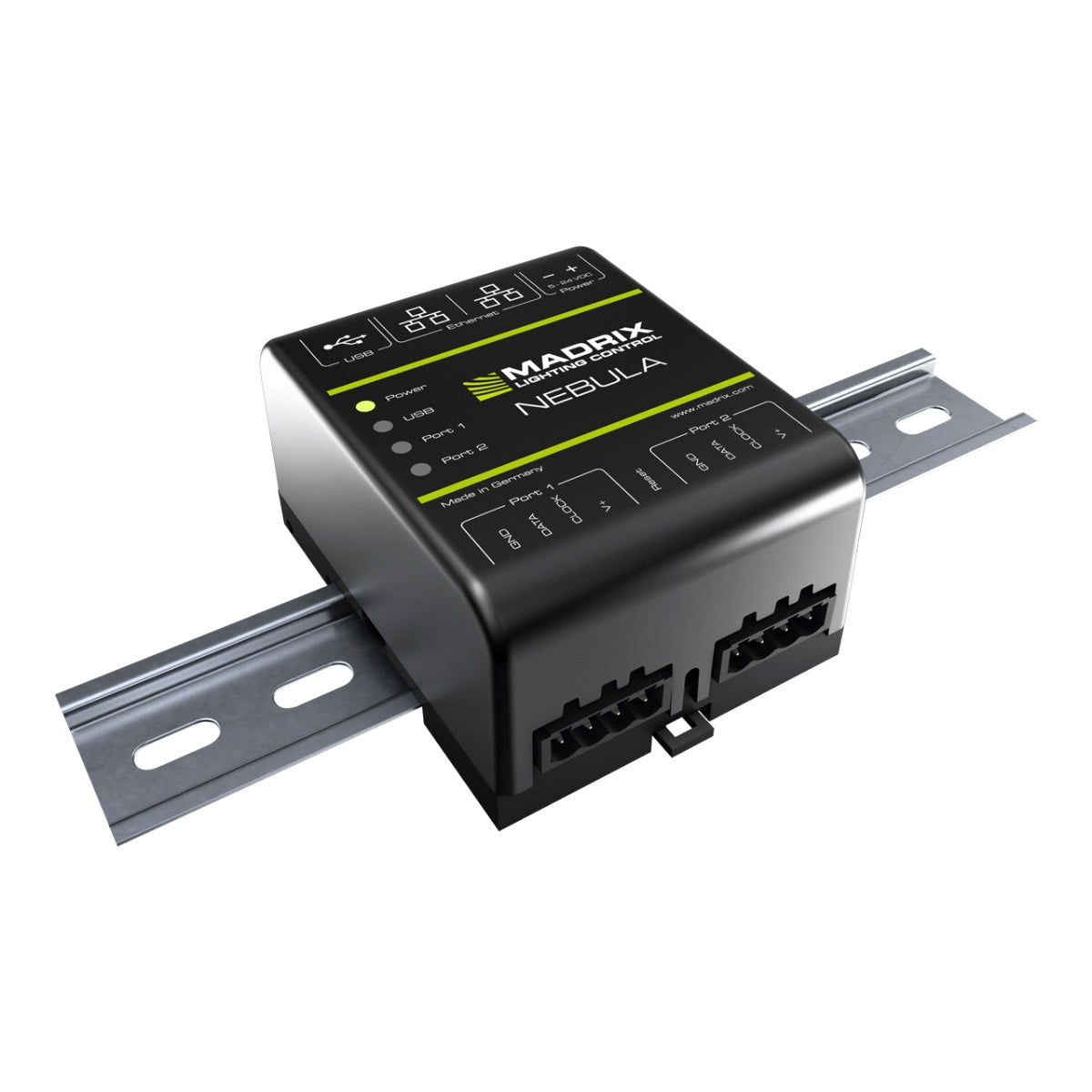

• Case: Non-conductive, IP20, UL94 V-0 flammability rating, designed for 35 mm DIN-rails or wall mounting
• IP Rating: IP20
• Certificates: CE, FCC, RoHS
