Madrix Orion - Art-Net/sACN Input Unit w/ 8x Analog Inputs

Product Overview

MADRIX ORION is specifically designed as a general-purpose input device for analog input and Ethernet-based output for remote control and interactivity.

Product Features

• Easily convert any analog input signal ranging from 0 V - 12 V into an 8-bit or 16-bit digital DMX output signal.
• Sample incoming signals instantly and map all inputs individually to up to 8 or 16 DMX channels per device.
• Directly connect to a wide range of compatible sensors, potentiometers, switches, and triggers.
• Easily create interactive projects using sensors for light, temperature, PIR, and many more.

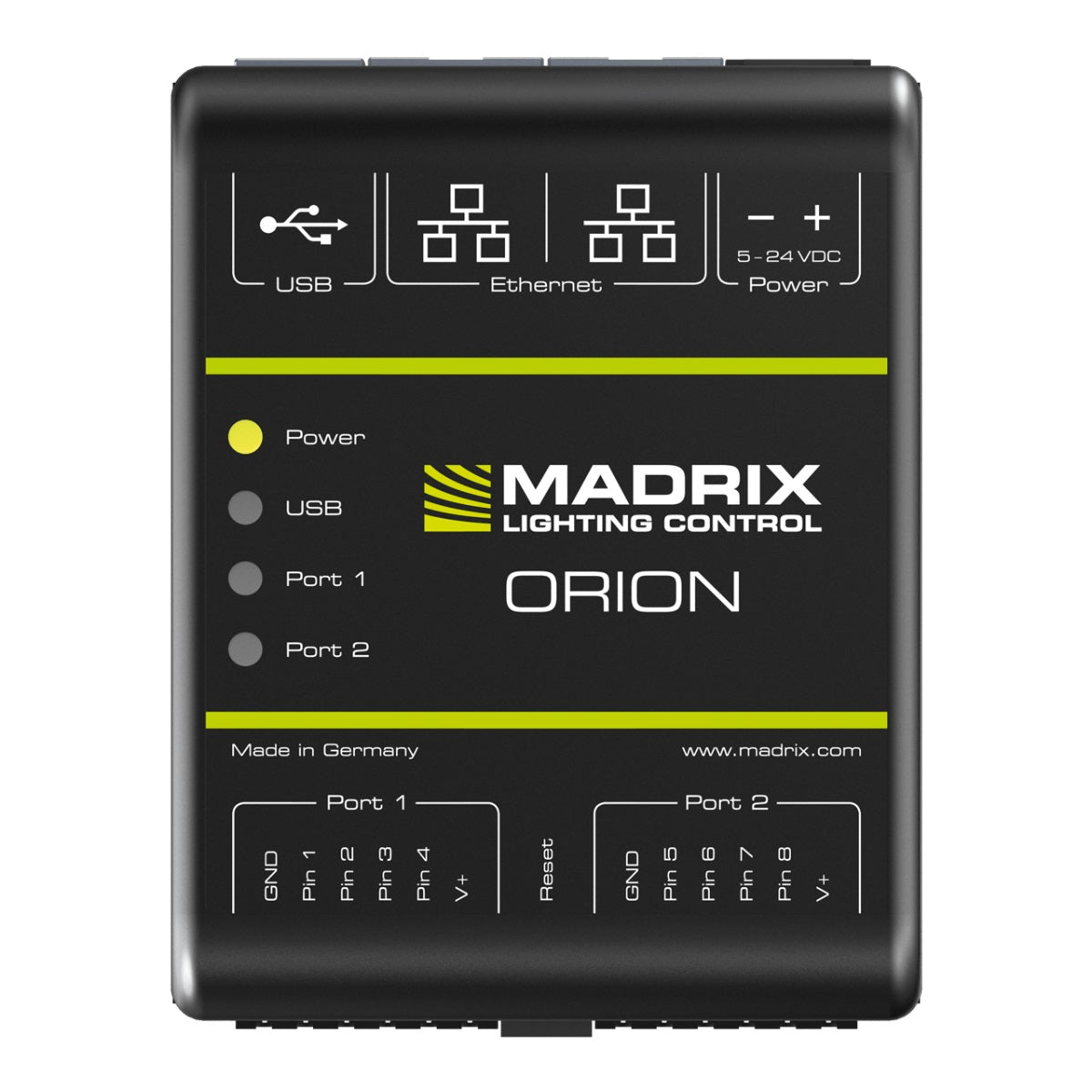

• 2 main 6-pin ports are available with 4 individual pins each as well as GND and V+.
• Flexibly supply 5 V - 24 V power over the 2-pin screw terminal.

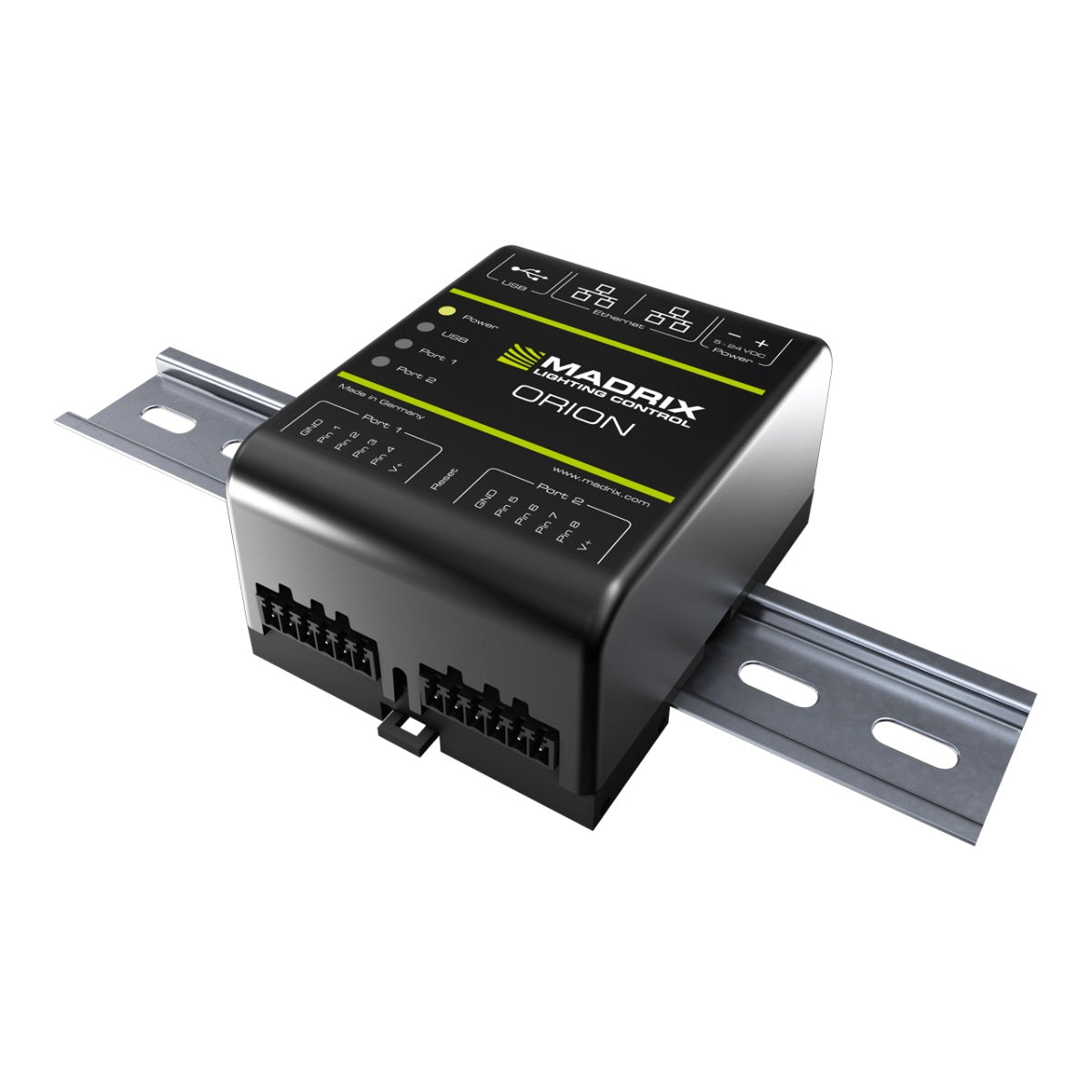

• Its non-conductive enclosure and standardized design for 35 mm top-hat rails make mounting quick, easy, and safe. 2 extra brackets are provided for optional wall mounting.
• 8 indicators quickly show the device status with the option to turn them off.
• Send the output signal as Art-Net or Streaming ACN (E1.31) over long or short distances to any compatible software or hardware controller.
• In addition, simply connect to the MADRIX Software over USB.
• Different input types allow data to be processed and parameterized differently for the output.
• Each input can be separately set as Analog-IN, Digital-IN, Counter, and other useful functions.

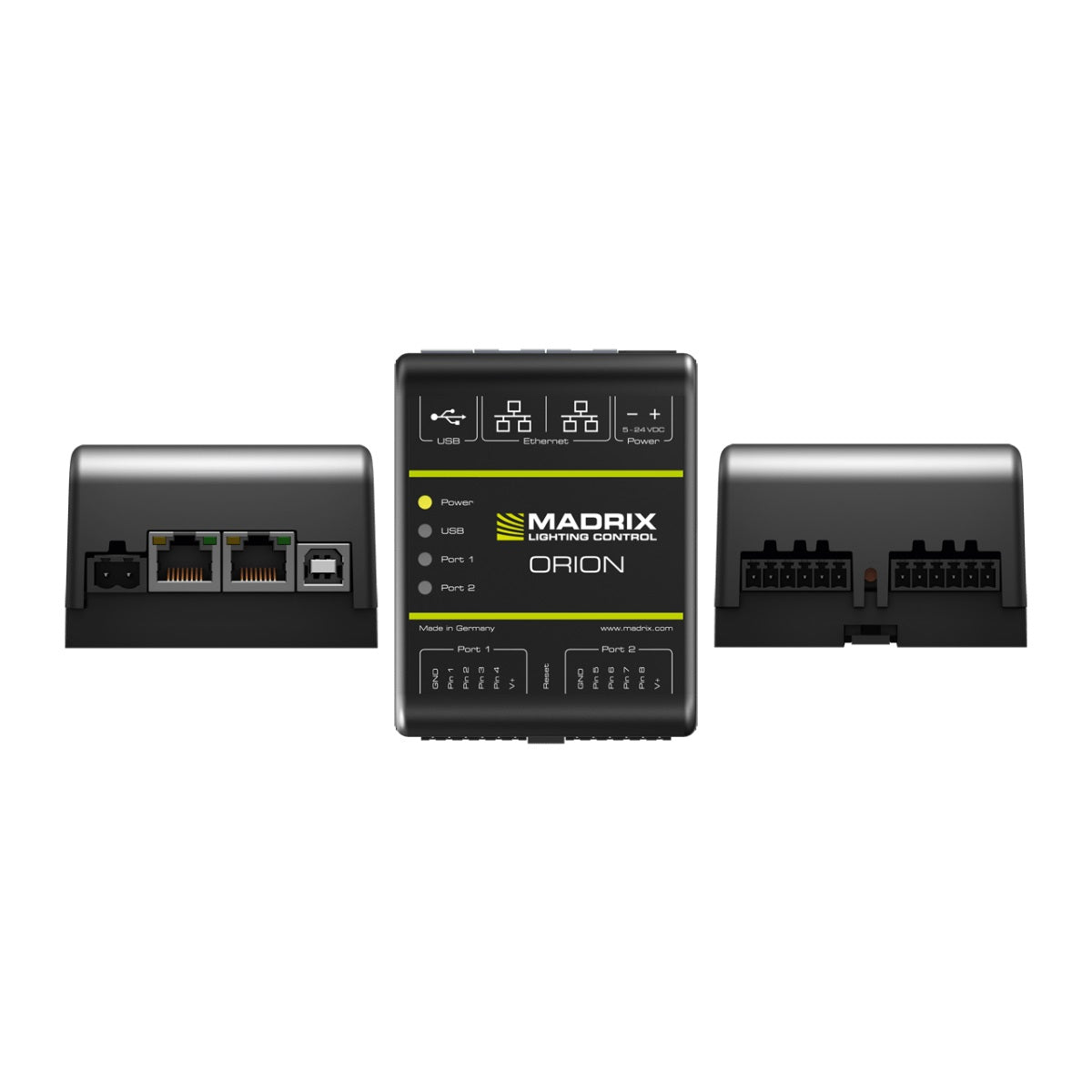

• 2 Ethernet ports allow for separate network connections as well as linearly daisy-chaining several devices together for better cable management.

Product Specifications

• Supply of Power: DC 5 V - 24 V, over A) 2-pin pluggable screw terminal with 500 mA max. load per port when supplying through to the ports (external power supply included), B) 5 V USB, C) Port 1 or Port 2
• Power Supply: AC Input: 110 V - 240 V, 50/60 Hz, 0.6 A; DC Output: (3 V) / (4.5) / 5 V / 6 V / 7.5 V / 9 V / 12 V, 2.0 A max.
• Power Consumption: < 1.5 W during normal operation (300 mA max.)
• USB: USB 2.0, type B plug
• Input Signals: 0 V - 12 V, analog
• Ports: 2x ports (via 2x 6-pin pluggable screw terminals)
• Input Pins: 2x 4 separate pins (8x in total)
• Ethernet: 2x RJ45, Auto MDI-X, 10/100 MBit/s (compatible with 1 GBit/s)
• Dimensions: 92 mm x 70 mm x 45 mm
• Weight: 105 g | 120 g incl. screw terminals and wall mounts
• Operating Temperature: -10 °C to 70 °C
• Storage Temperature: -20 °C to 85 °C
• Relative Humidity: 5 % to 80 %, non-condensing (Operating / Storage)
• Case: Non-conductive, IP20, UL94 V-0 flammability rating, designed for 35 mm DIN-rails or wall mounting
• IP Rating: IP20
• Certificates: CE, FCC, RoHS
