Madrix Plexus - Art-Net Node/USB 2.0 DMX Interface

Product Overview

The MADRIX PLEXUS controls up to 2 universes via DMX512 or Art-Net as a versatile stand-alone interface or live controller. It is the first and only interface to offer stand-alone playback of MADRIX light shows and effects.

Product Features

• Fully control 1024 DMX channels via MADRIX Software and use 2x DMX-OUT, 2x DMX-IN, 1x DMX-OUT and 1x DMX-IN, or Art-Net. The USB or the Ethernet connection can be used for live mode.
• Simply connect multiple devices at the same time.
• A master interface can be set up to synchronize the LED installation across all DMX universes.
• The versatile 15-pin serial port offers enhanced connectivity towards external analog or digital devices and therefore maximum flexibility.
• The precision aluminum enclosure, NEUTRIK plugs, and other excellent components ensure High Availability and reliability.
• Support of the USB 2.0 standard provides professional features such as Power over USB, Hot Swapping, and Plug and Play.
• The PLEXUS hardware and the MADRIX Software form a unique bundle. This powerful combination works directly out of the box.
• Easily run automatic scenes off the SD card with the help of the internal clock and time-controlled shows.

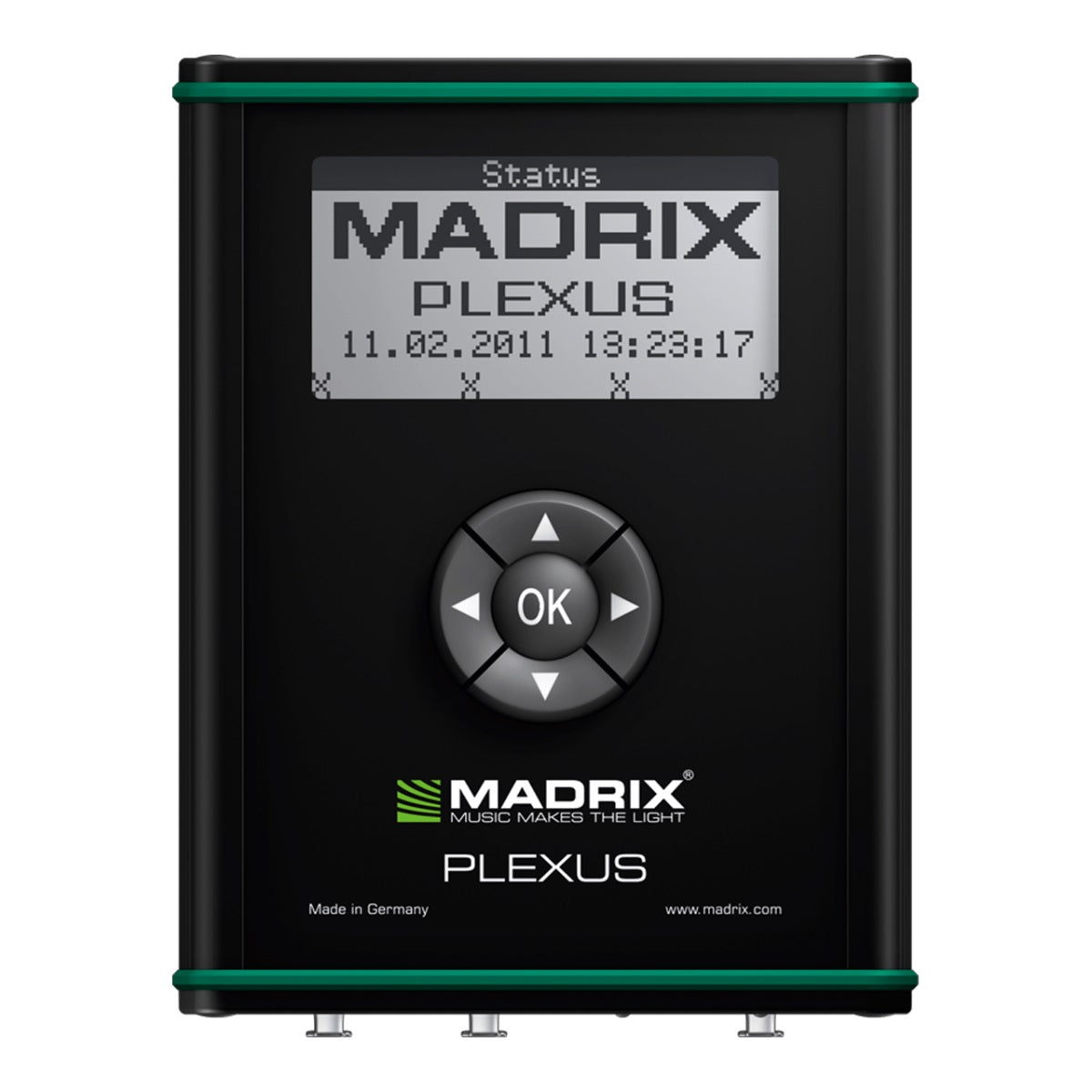

• The large backlit 3 ̋ LCD graphics display and 5 accessible control buttons make it really easy to manage and set up the device.
• Secure each MADRIX PLEXUS using the standard of portable security.

Product Specifications

• Power Supply: External, AC 100 V - 240 V ~ 50/60 Hz input, DC 5.2 V and 1000 mA max. output over USB
• Power Consumption: 2.5 W max. (500 mA max.)
• USB: USB 2.0, type B port, Power over USB
• DMX512: 2x 512 DMX channels, input or output

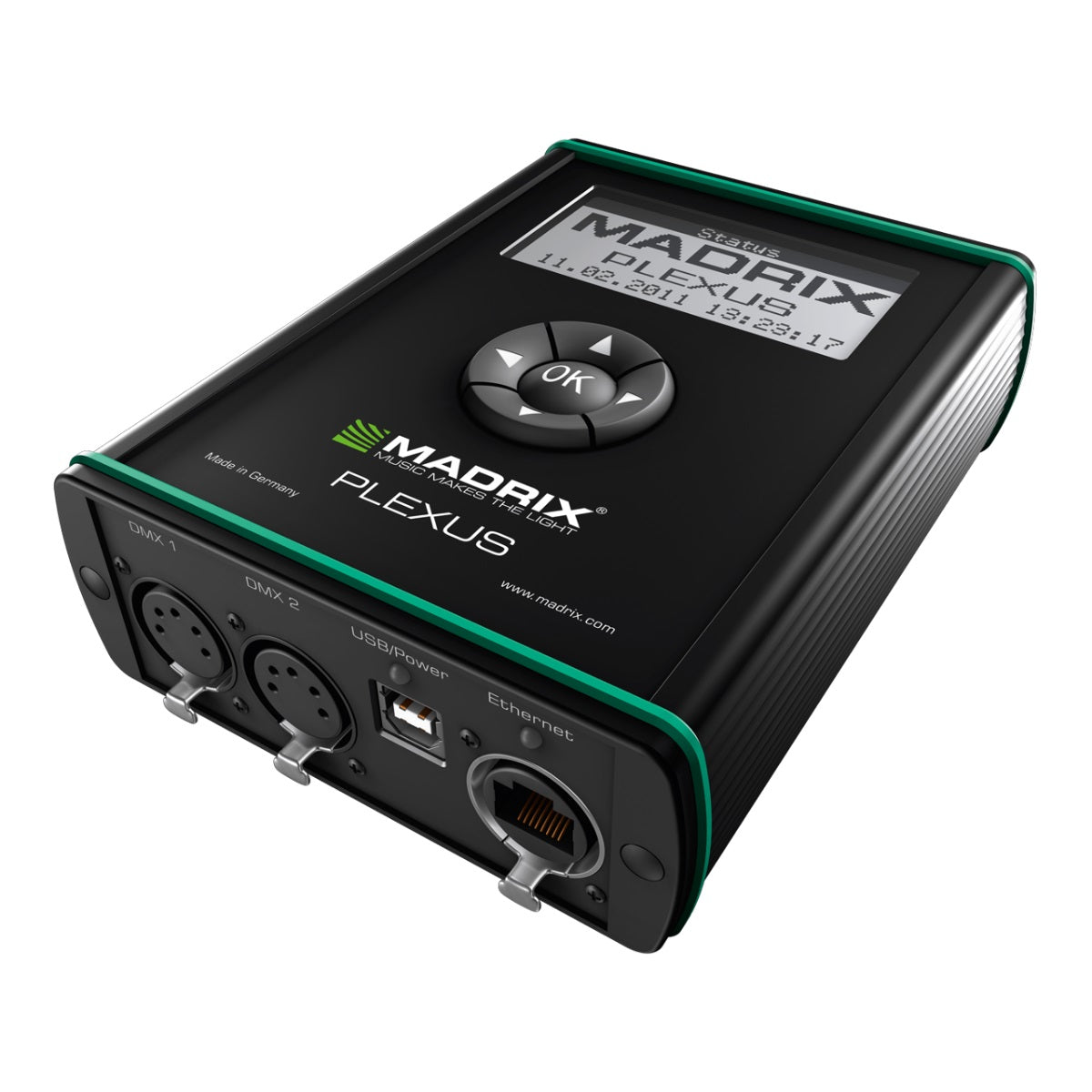

• DMX512 Ports: 5-pin, XLR, female, NEUTRIK
• Ethernet/Art-Net: RJ45, 10/100 MBit/s, Auto MDI-X, NEUTRIK etherCON
• Extension Port: 15-pin, D-Sub, US, female
• SD Card Slot: SD (2 GB max.) and SDHC cards (32 GB max.) supported
• Display: 3" LCD graphics display
• Handling: 5 control buttons
• Dimensions (L x W x H): 154 mm x 111 mm x 45 mm
• Weight: 500 g
• Operating Temp.: 10 °C to 50 °C
• Storage Temp.: -10 °C to 70 °C
• Relative Humidity: 5 % to 80 %, non-condensing (Operating / Storage)
• Case: Metal enclosure
• IP Rating: IP20
• Certificates: CE, FCC, RoHS
