Madrix Stella - Art-Net Node/USB 2.0 DMX512 Interface

Product Overview

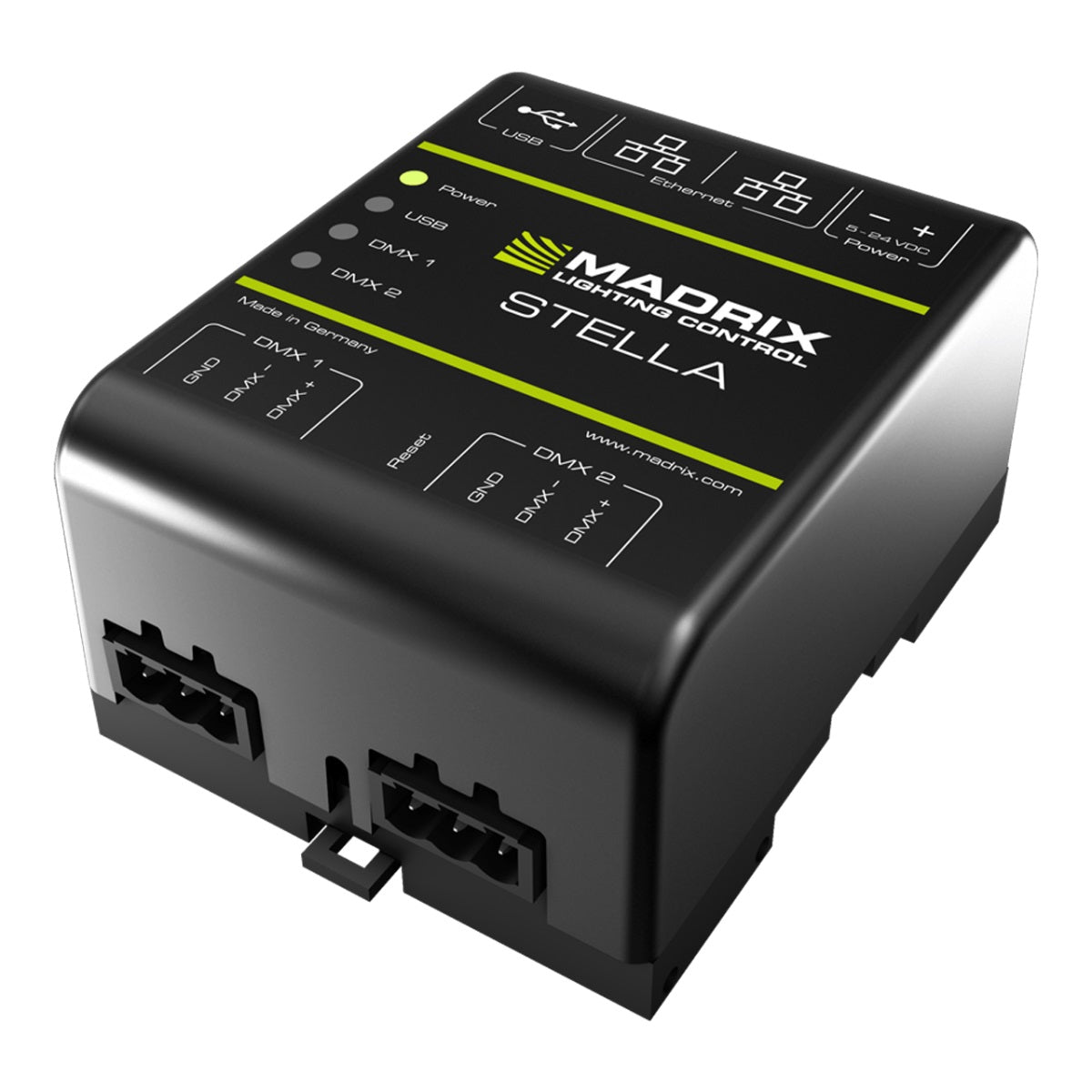

The MADRIX STELLA is a dedicated control interface for DMX512 and Art-Net or Streaming ACN that is designed for high quality and practicability in permanent LED installations.

Product Features

• Art-Net or Streaming ACN data is directly converted to DMX512.
• Optimize and decentralize cabling to cover any distance to the device using Ethernet network.
• Supply power over USB or 5 V to 24 V over a 2-pin screw terminal.
• Complies with official protocol specifications and can be used as a regular node with your other consoles, controllers, or software solutions.

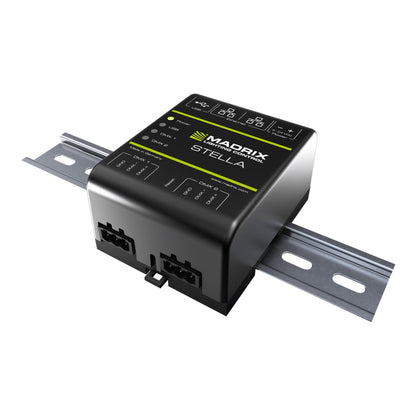

• Non-conductive enclosure and standardized design for 35 mm top-hat rails make mounting quick, easy, and safe.
• Directly connect DMX512 to the two 3-pin screw terminals to distribute 2 DMX universes per unit as input and/or output, eliminating the need for XLR connectors as a result.
• MADRIX Software and hardware allow you to fully synchronize Art-Net data for all output ports and across multiple devices to get an optimal image on the LEDs without visual interruptions.

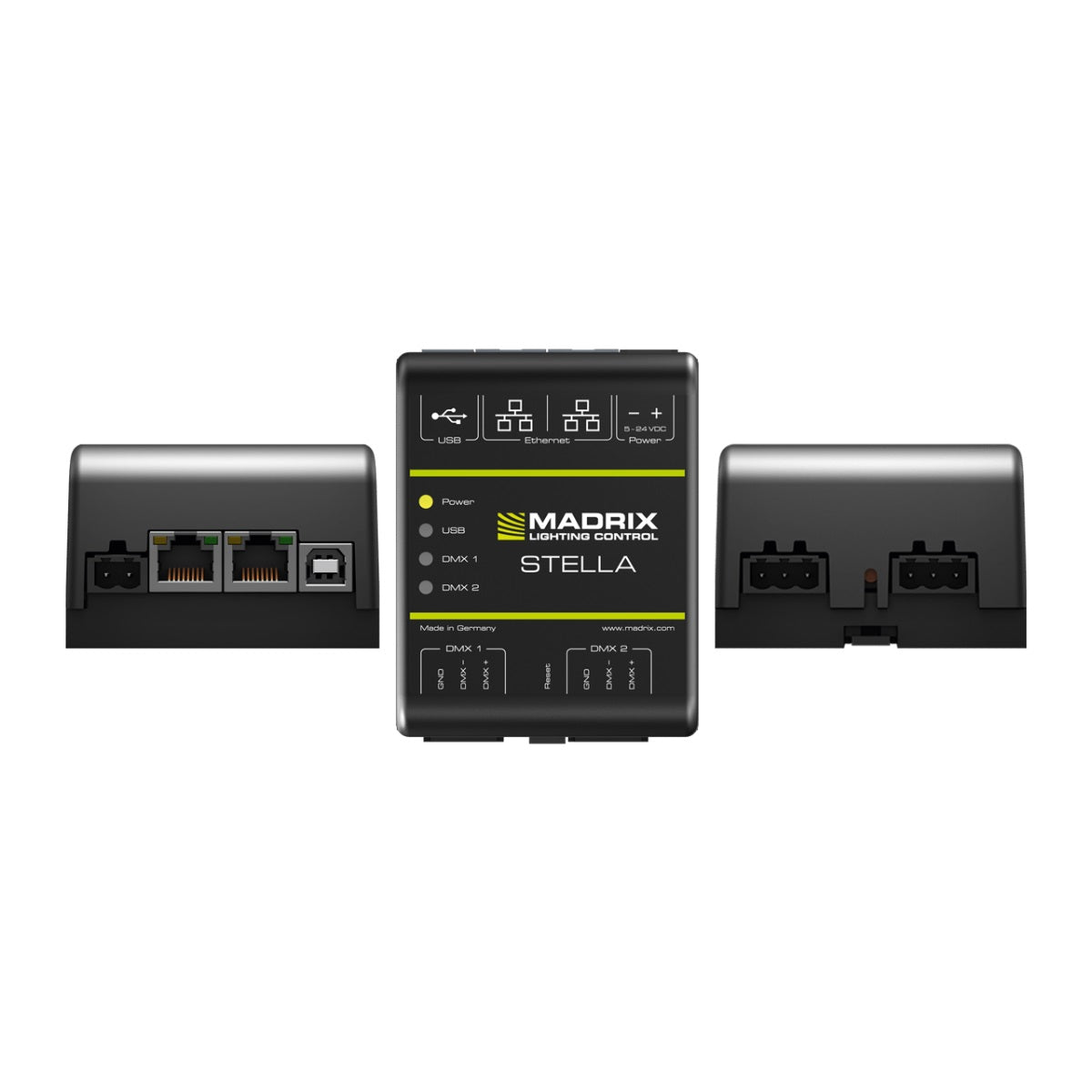

• 2 Ethernet ports allow for separate network connections as well as linearly daisy-chaining several devices together.
• The device is ready within seconds after startup.
• HTP Merging is automatically available for two Ethernet sources.

Product Specifications

• Supply Of Power: DC 5 V - 24 V, connection via 2-pin screw terminal (external power supply included) or via 5 V USB
• Power Supply: AC Input: 110 - 240 V, 50/60 Hz, 0.6 A; DC Output: (3 V) / (4.5) / 5 V / 6 V / 7.5 V / 9 V / 12 V, 2.0 A max.
• Power Consumption: < 1.5 W during normal operation (300 mA max.)
• USB: USB 2.0, type B port
• DMX512: 2x 512 DMX channels, input and/or output
• DMX512 Ports: 2x ports (via 2x 3-pin, pluggable screw terminals)
• Ethernet: 2x RJ45, Auto MDI-X, 10/100 MBit/s (compatible with 1 GBit/s)
• Dimensions: 92 mm x 70 mm x 45 mm
• Weight: 108 g | 125 g incl. screw terminals and wall mounts
• Operating Temperature: -10 °C to 70 °C
• Storage Temperature: -20 °C to 85 °C
• Relative Humidity: 5 % to 80 %, non-condensing (Operating / Storage)
• Case: Non-conductive, UL94 V-0 flammability rating, designed for 35 mm DIN-rails or wall mounting
• IP Rating: IP20
• Certificates: CE, FCC, RoHS
