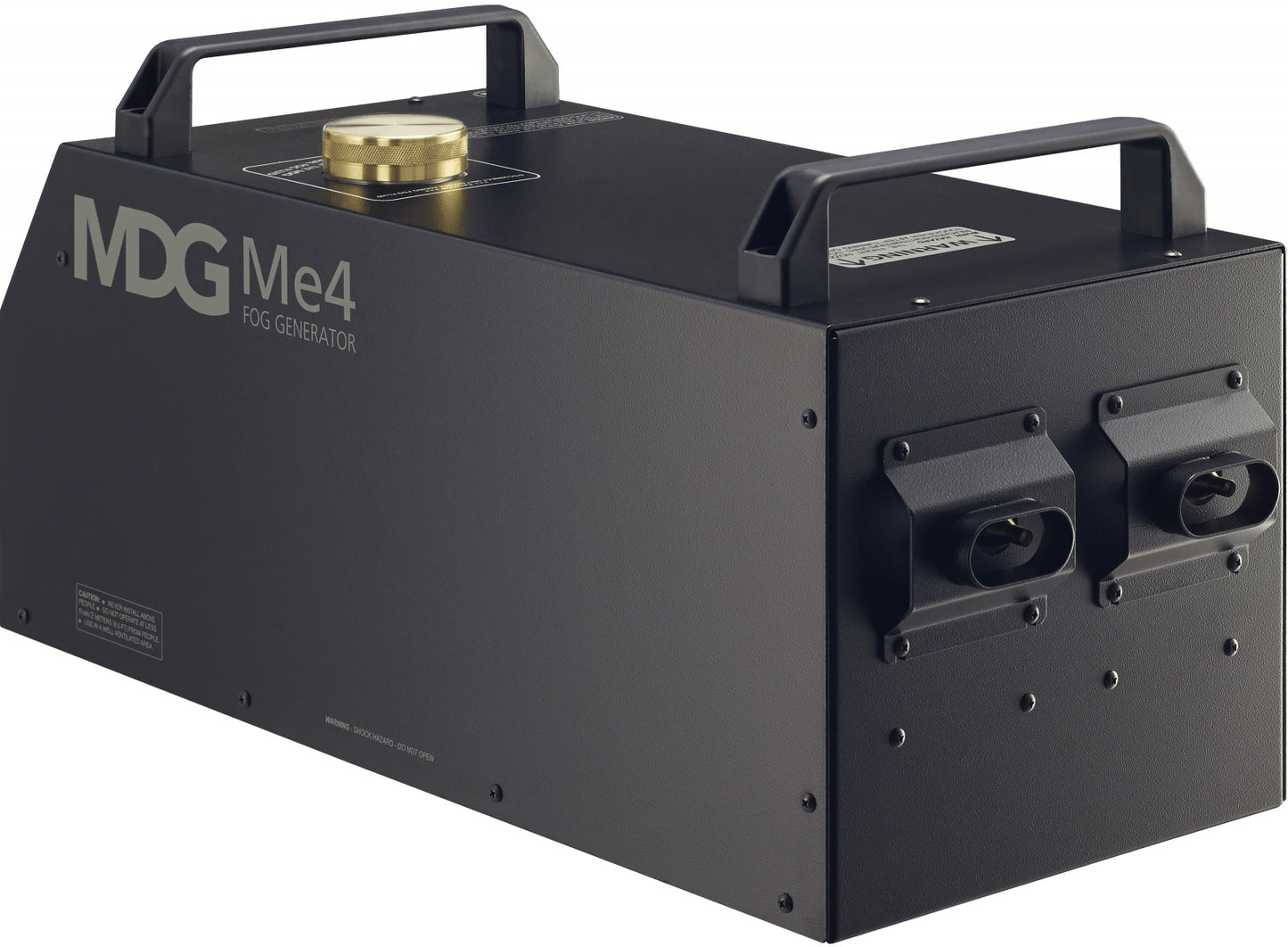

MDG Me4 - 2815 Watt Quad Output Fog Machine

Product Overview

The Me4 Fog Generator was designed with safety and reliability in mind. It is capable of generating pure white, non-toxic fog for as long as you have fluid (100% duty cycle). This generator is also equipped, as a standard feature, with the Automatic Purging System (APS). This system purges the heating module after the first heating cycle and after every emission of fog preventing residual build up and clogging. The Me4 is a variable output Fog Generator capable of generating large volumes of very dense fog in a short period of time. It is one of the quietest units on the market.

Product Features

• Variable fog output: 0-100 % fog output control from your DMX/RDM device, or direct local control.
• Fluid consumption: At maximum output (2.76 bar / 40 psi) Me4 uses only 4 L (1.06 US gallon) of fluid per hour.
• 100% duty cycle: At all output levels Me4 produces a high-quality, consistent fog as long as there is fluid and gas.
• Numerous control options: 4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.
• APS (Automatic Purging System): This system purges the heating modules after the first heating cycle and after every emission of fog preventing residual build up and clogging.
• Quad fog output: With its four nozzles, the maximum fog output is 400 m3 (14,126 ft3) per minute.

Product Specifications

• Maximum fog output: 400 m3 (14,126 ft3) per minute
• Fluid consumption: 4 L (1.06 US gallon) (per hour at 2.76 bar/40 psi)
• Gas type: N2
• Gas consumption: 3.4 kg (7.5 lb) per hour at 2.76 bar / 40 psi
• Control: 4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.
• Reservoir capacity: 6.5 L (1.7 US gallon)
• APS (Automatic Purging System): Standard
• Fog colour: Pure white
• Particle size: 0.5 - 0.7 microns
• Warm-up time: 8 minutes (maximum)
• Fluid type: MDG Neutral
• Operating voltage: 190 - 250 VAC, 50/60 Hz single phase
• Power consumption: 2,815 W
• Length: 68.5 cm (27")
• Width: 28 cm (11")
• Height: 30 cm (12")
• Weight: 33 kg (72 lb)
• Shipping weight: 44 kg (97 lb) with flight case
• Approval: CE certified, CSA and UL approved
